LEESON 121065.00 2 HP MOTOR
Quick Overview
Manufactured By: LEESON ELECTRIC CO
Manufacturer Part Number: 121065.00
IMS Product Code: 926893
Packaging: Sold Individually
Description:

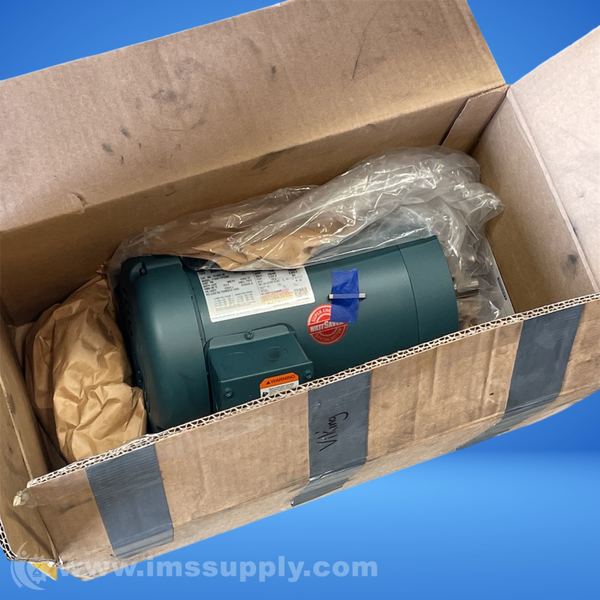

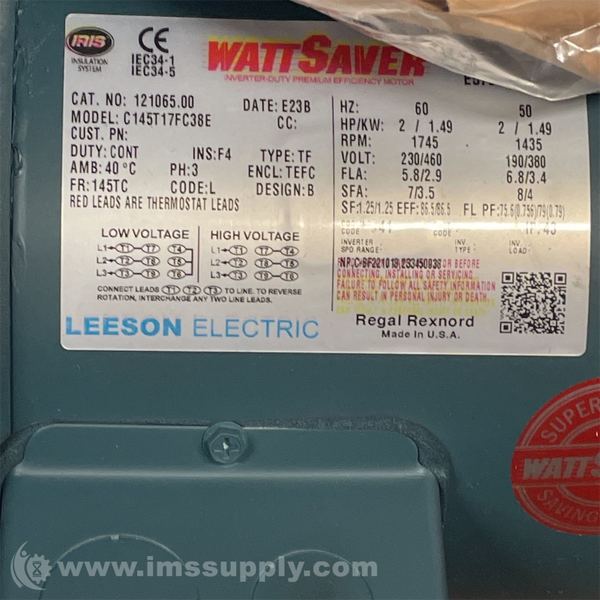

Leeson 121065.00 2 HP Motor
Three-phase electric motor with 2 HP output, 230/460 V voltage, 1745 RPM speed, 145TC frame, and TEFC enclosure.
Specifications
- Phase: 3
- Output HP: 2
- Output KW: 1.5
- Voltage: 230/460 V
- Speed: 1745 RPM
- Service Factor: 1.25
- Frame: 145TC
- Enclosure: TEFC
- Thermal Protection: Thermostat
- Efficiency: 86.5%
- Frequency: 60 Hz
- Current: 5.8/2.9 A
- Power Factor: 75.6
- Duty: Continuous
- Insulation Class: F
- Design Code: B
- KVA Code: L
- Drive End Bearing Size: 6205
- Opp Drive End Bearing Size: 6203
- UL: Recognized
- CSA: Y
- CE: Y
- IP Code: 43
- Number of Speeds: 1
- Electrical Type: Squirrel Cage Inverter Rated
- Starting Method: Line Or Inverter
- Poles: 4
- Rotation: Reversible
- Resistance Main: 6 Ohms
- Mounting: Round
- Motor Orientation: Horizontal
- Drive End Bearing: Ball
- Opp Drive End Bearing: Ball
- Frame Material: Rolled Steel
- Shaft Type: T
- Overall Length: 13.92 in
- Frame Length: 8 in
- Shaft Diameter: 0.875 in
- Shaft Extension: 2.25 in
- Weight: 46 LB
