LEUZE KDU-M12-4W-V1-050 CONNECTION CABLE
Quick Overview
Manufactured By: LEUZE
Manufacturer Part Number: KDU-M12-4W-V1-050
IMS Product Code: 2131753
Packaging: Sold Individually
Description:
Leuze KDU-M12-4W-V1-050 Connection Cable

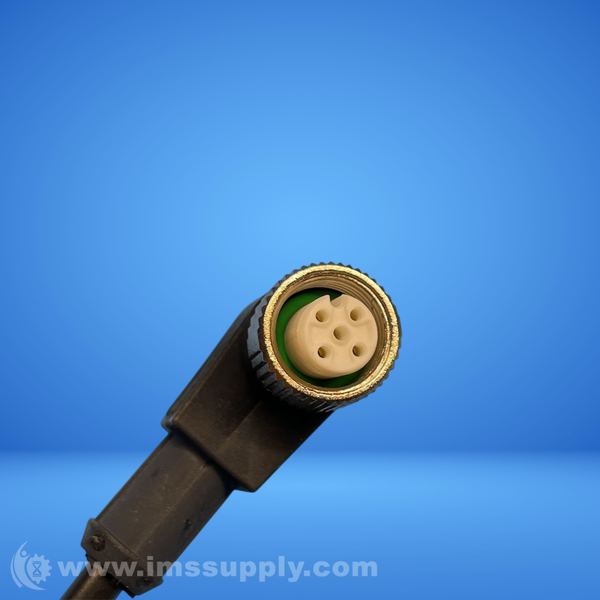

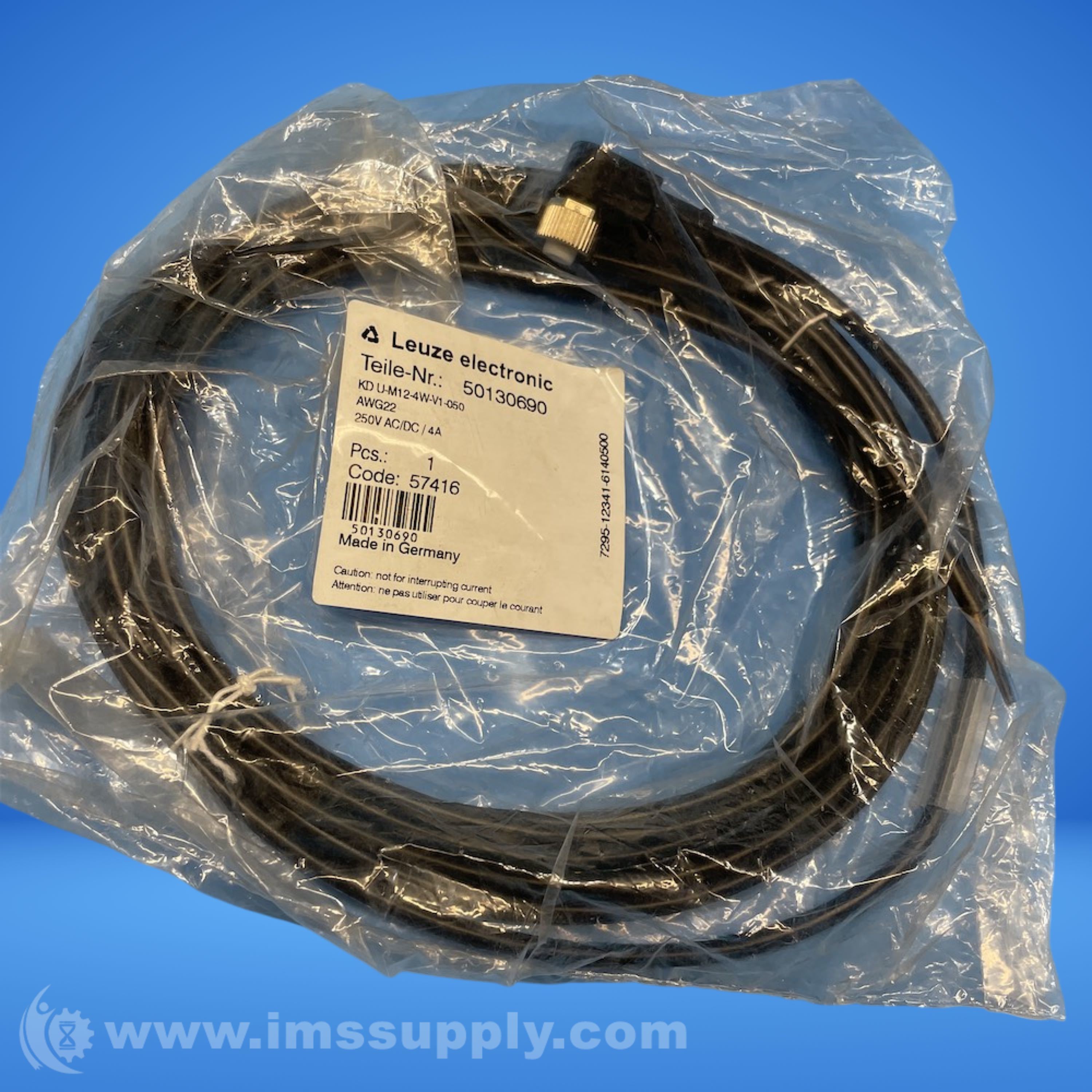

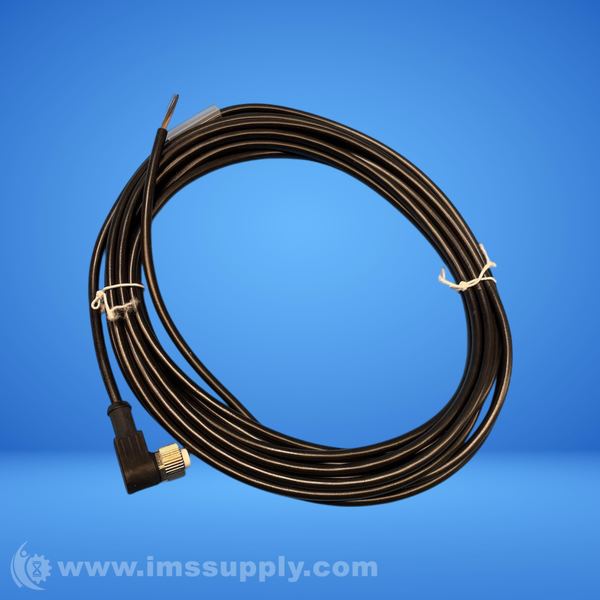

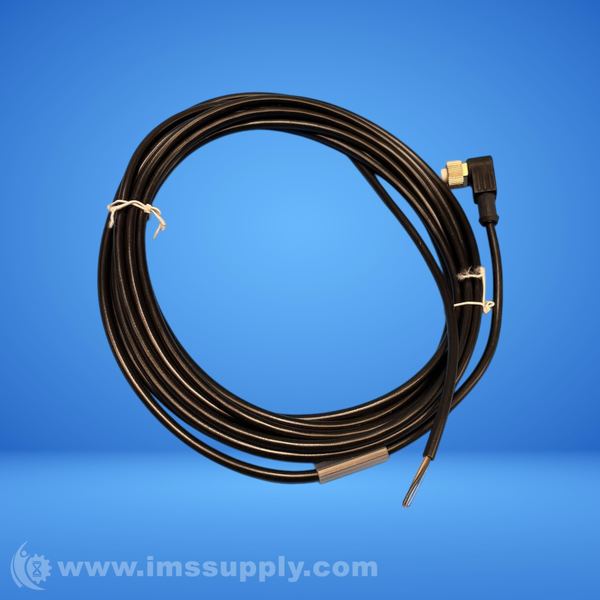

Connection cable with M12 angled female connector and open end. 4-pin, A-coded, PVC sheathing, 5m length.
Specifications
- Application: Chemical resistant
- Operating voltage: Max. 250 V AC/DC
- Thread size: M12
- No. of pins: 4-pin
- Encoding: A-coded
- Version: Angled
- Type of connection 1: Connector
- Type 1: Female
- Type of connection 2: Open end
- Number of conductors: 4
- Sheathing color: Black
- Sheathing material: PVC
- Wire insulation: PVC
- Cable length: 5000 mm
- Shielded: No
- Silicone-free: Yes
- Suitability for drag chains: No
- Bending radius, flexible laying, min.: Min. 10 x cable diameter
- Bending radius, stationary laying, min.: Min. 5 x cable diameter
- Ambient temperature, operation, flexible use: -5 ... 80 degrees C
- Ambient temperature, operation, stationary use: -30 ... 80 degrees C
- Degree of protection: IP 65, IP 67
- Approvals: c UL US
- Net weight: 180 g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
