LEVITON 2313 LOCKING CONNECTOR
Quick Overview
Manufactured By: LEVITON
Manufacturer Part Number: 2313
IMS Product Code: 932038
Packaging: Sold Individually
Description:

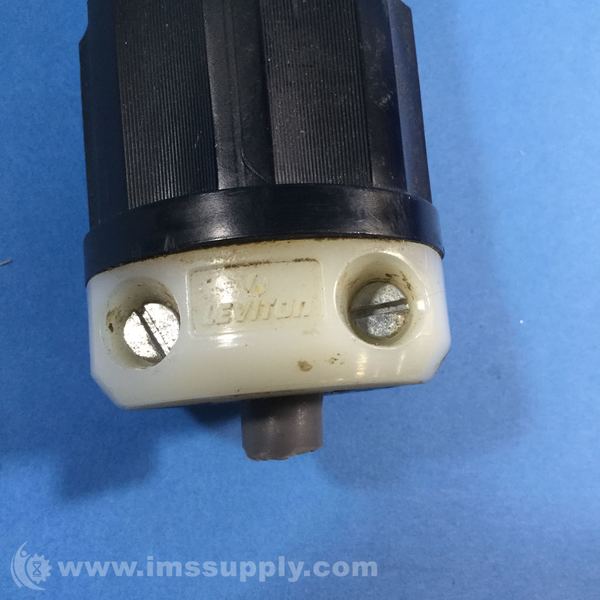

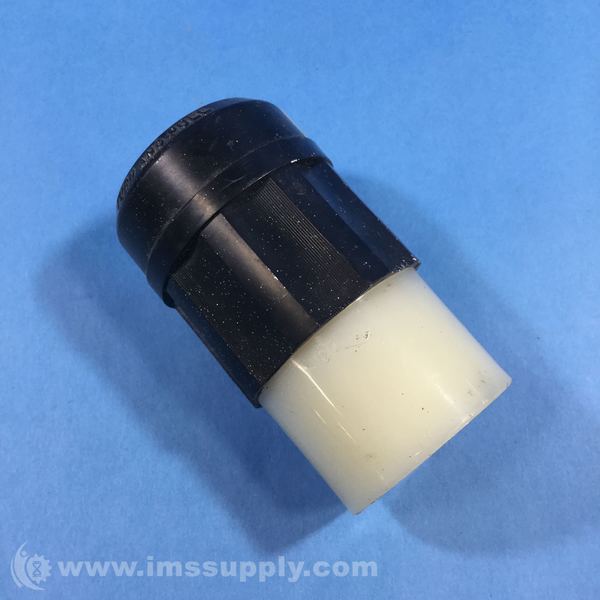

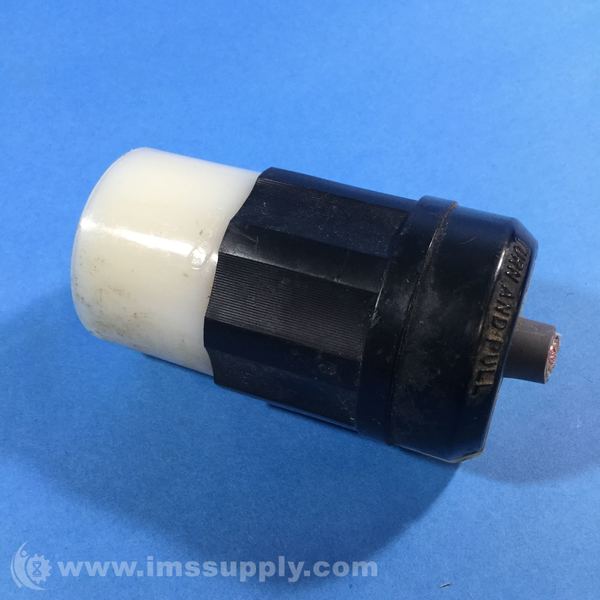

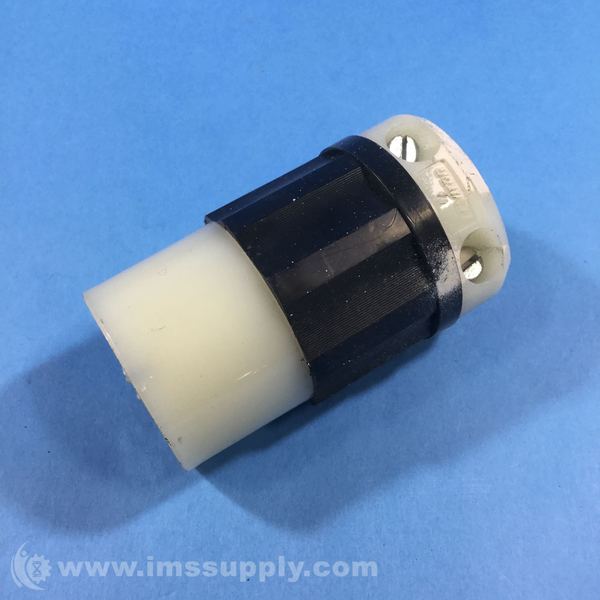

Leviton 2313 Locking Connector
20 Amp, 125 Volt, NEMA L5-20R, 2P, 3W, Locking Connector, Industrial Grade, Grounding
Specifications
- Amperage: 20 A
- Voltage: 125 VAC
- NEMA: L5-20R
- Pole: 2
- Wire: 3
- Dielectric Voltage: Withstands 2000V per UL498
- Current Interrupting: Certified for current interrupting at full rated current
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Operating Temperature: -40°C to 60°C
- Body Material: Impact Modified Nylon
- Back Cover: Thermoplastic
- Wire Module: Nylon
- Cord-Clamp: Nylon
- Clamp Insert: Nylon
- Blades/Contacts: Solid Brass
- Terminal Screws: Brass
- Assembly Screws: Steel, Zinc Plated
- Color: Black-White
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Cord Range: 0.385 to 0.720
- Wire Gauge: 16-10 AWG
- Horsepower Rating: 1 HP
- Terminal Accom.: 18-10 AWG
- Torque Range: 10-14 in-lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
