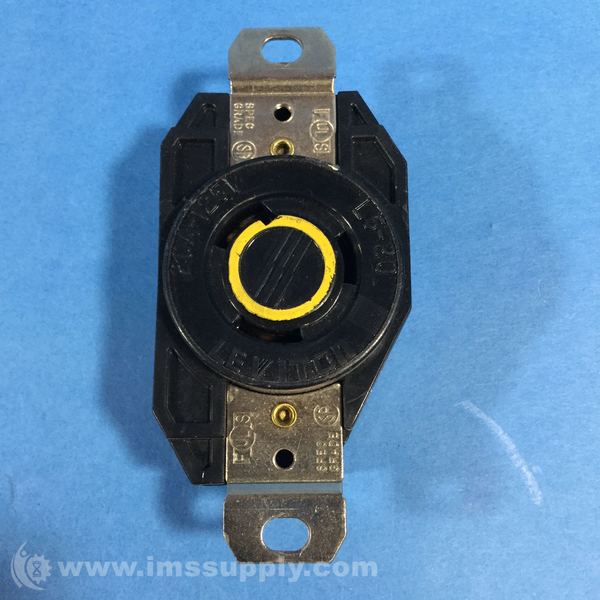

LEVITON 2610 30A 125V L5-30R LOCKING RECEPTACLE
Quick Overview
Manufactured By: LEVITON
Manufacturer Part Number: 2610
IMS Product Code: 932079
Packaging: Sold Individually
Description:
Leviton 2610 30A 125V L5-30R Locking Receptacle
Industrial grade 30A 125V L5-30R locking receptacle with flush mounting, grounding, and nylon body.
Specifications
- amperage: 30 A
- voltage: 125 VAC
- nema: L5-30R
- pole: 2
- wire: 3
- mounting type: Flush Mount
- color: Black
- body material: Nylon
- face material: Ultramid
- base material: Valox
- cover material: Valox 357
- ground contacts: Brass
- line contacts: Brass
- strap material: Nickel-Plated Brass
- terminal clamps: Nickel-Plated Brass
- terminal screws: Chromated Brass
- cord range: 0.595 to 1.150
- screw terminal torque: 14-18 in-lbs
- terminal accom.: 14-8 AWG
- dielectric voltage: Withstands 2000V per UL498
- temperature rise: Max 30C after 250 cycles OL at 200 percent rated current
- operating temperature: -40°C to 60°C
- flammability: Rated V-0 per UL 94
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Is attached to a metal plate.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
