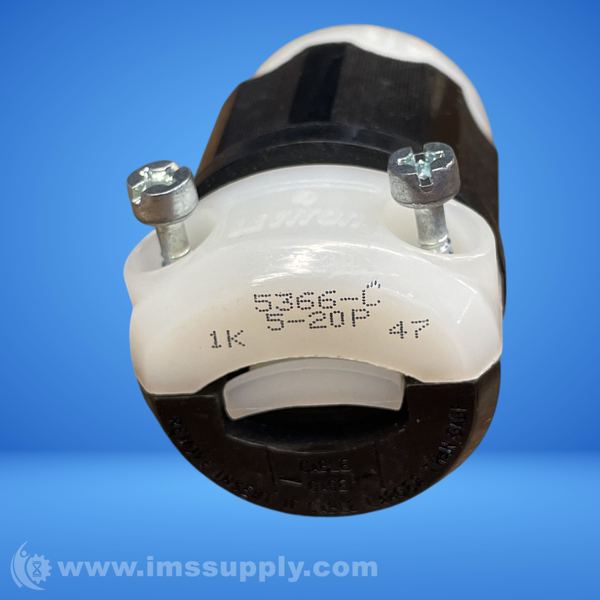

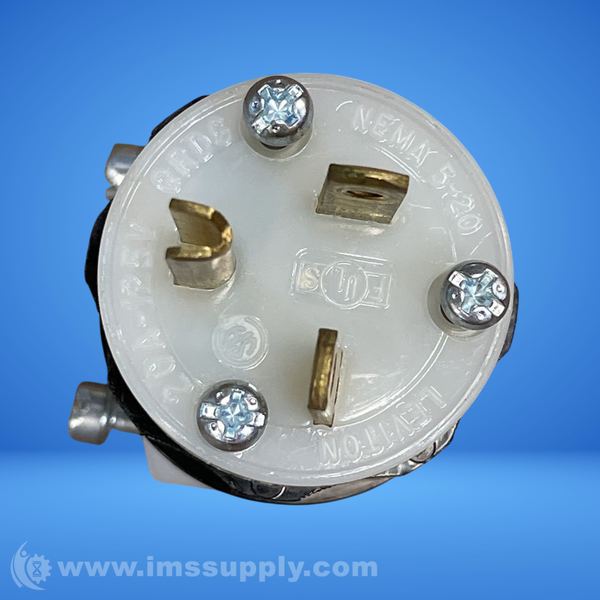

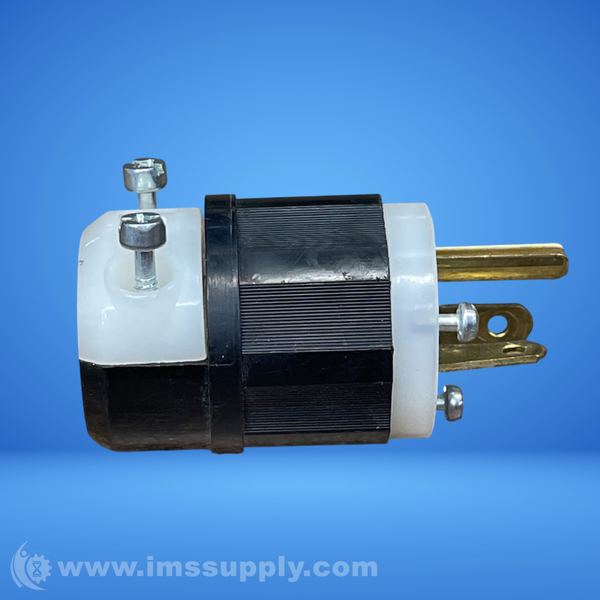

LEVITON 5366-C 20A 125V NEMA 5-20P PLUG
Quick Overview
Manufactured By: LEVITON
Manufacturer Part Number: 5366-C
IMS Product Code: 932208
Packaging: Sold Individually
Description:
Leviton 5366-C 20A 125V NEMA 5-20P Plug
20 Amp, 125 Volt, NEMA 5-20P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Black-White nylon construction.
Specifications
- amperage: 20 A
- color: Black/White
- cord range: 0.230 to 0.685
- dielectric voltage: Withstands 2000V per UL498
- environment: Dry
- flammability: Rated HB or better UL94
- grounding: Grounding
- nema: 5-20P
- operating temperature: -40 degrees C to 60 degrees C
- pole: 2
- terminal accom.: 18-10 AWG
- torque range: 10-14 in-lbs
- voltage: 125 VAC
- wire: 3
- application: Industrial Applications
- dimensions: 1.53 IN Dia x 1.98 IN H
- grade: Industrial
- material: Nylon
- number of poles: 2
- number of wires: 3
- standard: ANSI C73, NOM 057, NEMA WD1/WD6, CSA C22.2 No. 42 File No. LR406, UL 498 File No. E13399, Federal Specification WC596, UL94 V-2 Flammability Rating
- type: Cable Mount Grounding
- wire size: 18-10;.250-.685
- blade material: Brass
- body length: 1.98 in
- connection orientation: Straight
- face diameter: 1.39 in
- for maximum cable diameter: 0.685 in
- for minimum cable diameter: 0.23 in
- grounding: Grounded
- housing color: Black; White
- housing material: Nylon
- insulation material: Nylon
- maximum operating temperature: 140 degrees F
- maximum wire size: 10 AWG
- minimum operating temperature: -40 degrees F
- minimum wire size: 18 AWG
- nema plug configuration: 5-20P
- number of blades: 3
- outside diameter: 1.53 in
- phase: Single
- polarized: Yes
- resistance properties: Chemical Resistant; Impact Resistant; UV/Sunlight Resistant
- shrouded: No
- standards: ANSI C73; CSA C22.2 No. 42 File LR-406; NEMA WD-6; NOM 057 Certified; RoHS Compliant; UL 498 File E13399; UL Federal Specification WC-596 File E13393
- wire connection type: Screw Terminals
- wiring style: Standard
- ampere rating: 20 Amp
- nema configuration: NEMA 5-20P
- blade type: Straight Blade
