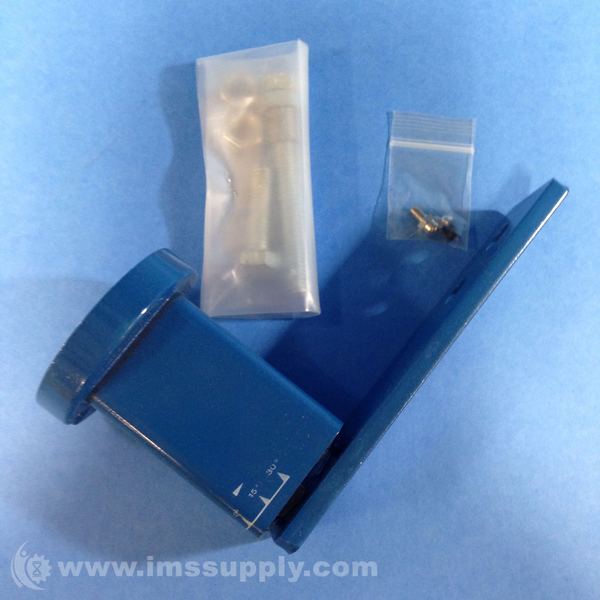

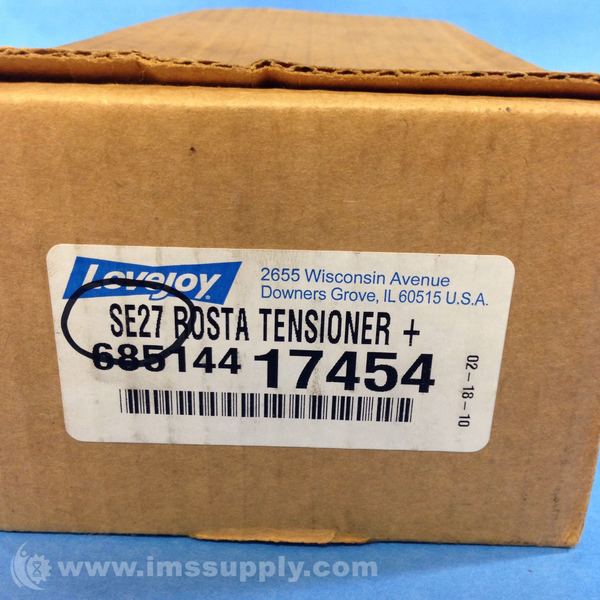

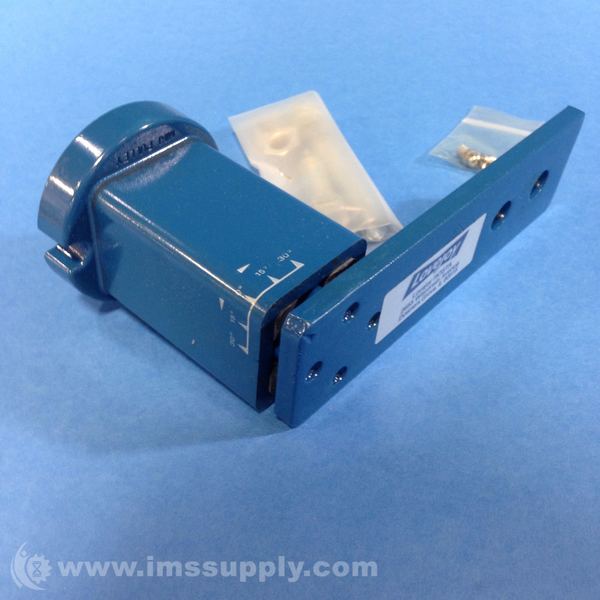

LOVEJOY 68514417454 BASE TENSIONER W/MOUNTING AND IDLER BOLTS
Quick Overview
Manufactured By: LOVEJOY
Manufacturer Part Number: 68514417454
IMS Product Code: 1734063
Packaging: Sold Individually
Description:
Description: SE27 RUNRIGHT TENSIONER, STANDARD
Type: Chain/Belt Tensioner
Element Material: Natural Rubber
Style: Elastomeric
Color: Blue
UPC Number: 17454
Dimensional Data
Tensioner: SE27
Mounting Bolt Size: M12 x 40
Outside Diameter (Dim D): 3.07 in
Overall Length (Dim E): 4.25 in
Idler Bolt Size: 1/2 - 13 x 3-1/2
Dimension L: 6.1 in
Dimension J-1: 5.12 in
Dimension J-2: 3.94 in
Dimension L1: 40 mm
Dimension G: 0.31 in
Dimension O: 0.59 in
Dimension P: 0.41 in
Dimension K: 1.97 in
Cubic inches: 79.58975 in³
Performance Data
Normal Temperature Range: -40 to 180 ºF OR -40 to 80 ºC
Mounting Bolt Torque: 86 N·m
Force at 20° Angle of Pretension (Normal Force Level) (Dimension F): 85.4 lb, 380 N
Distance at 20° Angle of Pretension (Normal Force Level) (Dimension S)
