LS BK10S-T2 SURGE PROTECTOR
Quick Overview
Manufactured By: LS ELECTRIC
Manufacturer Part Number: BK10S-T2
IMS Product Code: 1903986
Packaging: Sold Individually
Description:
LS BK10S-T2 Surge Protector
Surge protector for AC systems, protecting against voltage surges and spikes.
Specifications
- No. of poles: 3
- Rated voltages Un: 230/440V
- Max. continued operation voltage Uc: 385V
- Voltage protection level Up: =1.5kV
- Nominal discharge current In: 10kA
- Max. discharge current Imax: 20kA
- Test class: Class II
- Reaction time: < 25ns
- Operating temperature range: -40?~80?
- Cross-sectional area of the connecting wires: 6~32mm˛
- Standard: IEC 61643-11 / KS C IEC 61643-11 / UL1449
- Certification: CE, UL, KS, S
Used (Special):

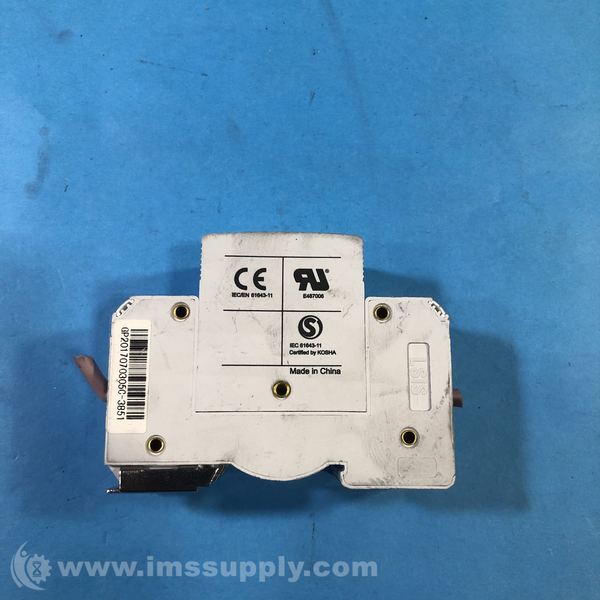

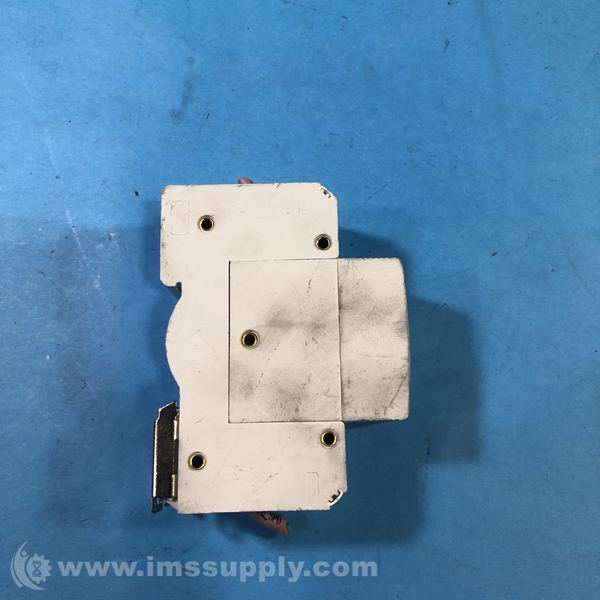

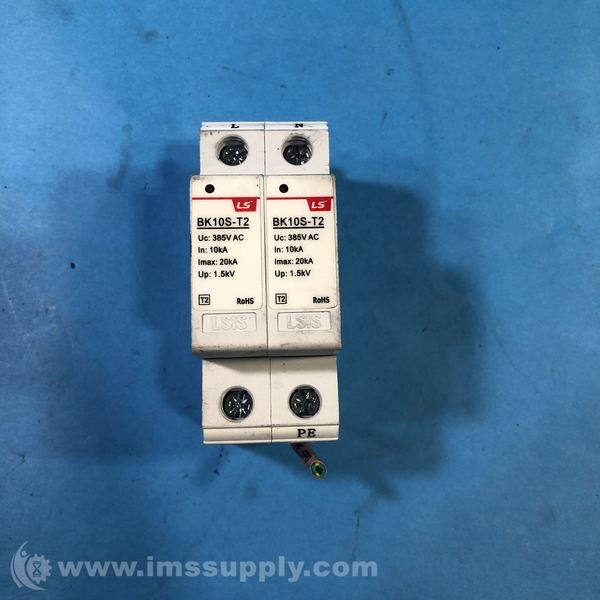

Two LSIS BK10S-T2 circuit breakers attached together.
