LUTZE 111423 PUR MOTOR CABLE
Quick Overview
Manufactured By: LUTZE
Manufacturer Part Number: 111423
IMS Product Code: 939661
Packaging: Sold Individually
Description:

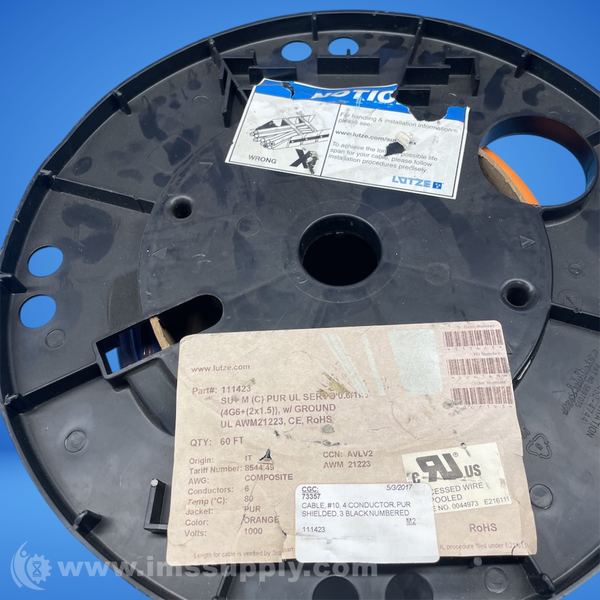

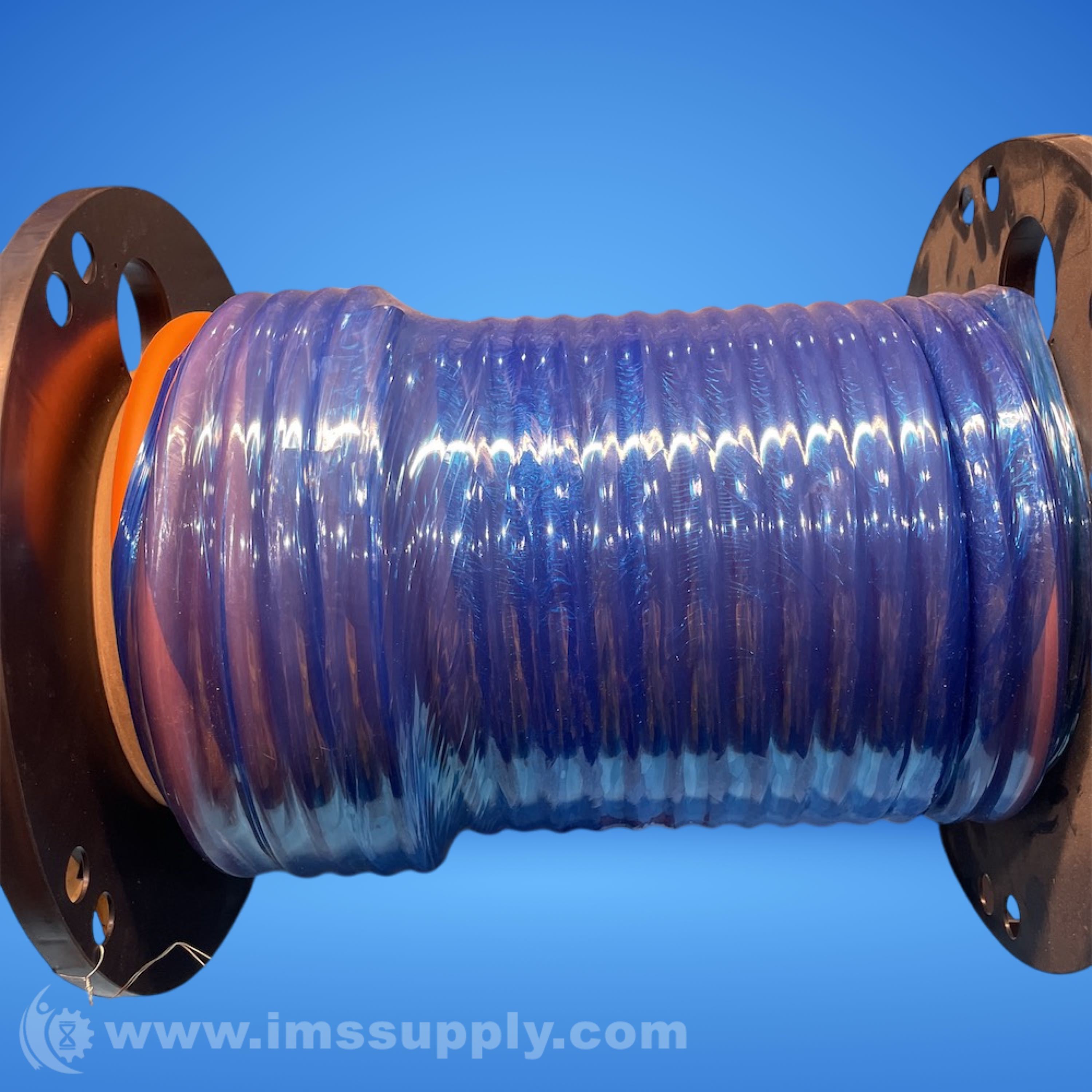

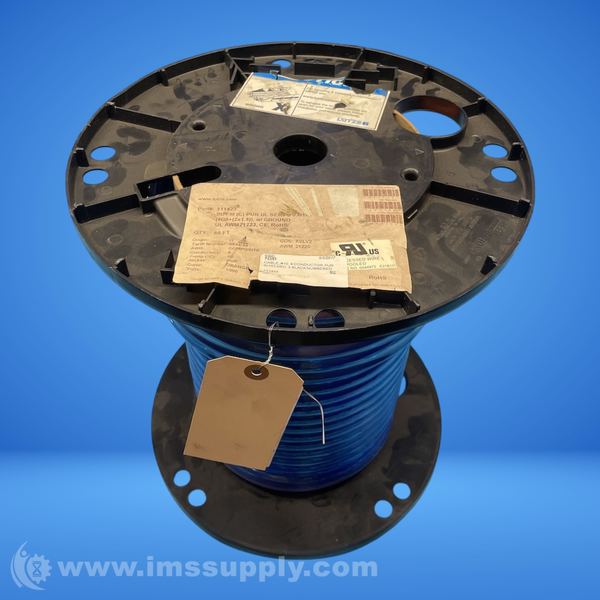

Lutze 111423 PUR Motor Cable
Lutze SUPERFLEX Plus M (C) PUR motor cable with tinned copper braid shielding, orange PUR jacket, and TPE insulation. Suitable for VFD and servo drives.
Specifications
- awg: 10
- bend radius: Moving 7.5 x OD = 6AWG, 10 x OD = 4AWG, Fixed 5 x cable OD
- burning behavior: Flame retardant per DIN EN 60332-1-2, IEC 60332-1, UL 1581 section VW-1, FT1
- color code: black w/ white #, green/yellow GND, Pairs: black, white
- conductor: class 6 super finely stranded bare copper
- conductor count: 6
- conductor marking: Black with white numbers and one green/yellow ground; Control pair color-coded (bk, wh)
- conductor size: AWG 10
- conductor stranding: Bare copper super finely stranded per DIN VDE 0295 Class 6 and IEC 60228 Class 6
- configuration: multi-conductor cable with one ground, one twisted shielded pair (TSP)
- halogen free: According to DIN EN 60754-1
- insulation: special TPE High Glide Insulation
- insulation materials: TPE
- isolation resistance: Min. 500MO x km
- jacket: oil resistant PUR, orange
- jacket color: Orange
- jacket material: PUR
- minimum bending radius: Moving 10 x cable OD, Fixed 6 x cable OD
- nom od (in): 0.634
- number of strands (/cross-section): 4G6+(2×1.5)
- od inch: 0.638
- od mm: 16.2
- oil resistance: Oil Res II
- outer diameter (inches): 0.634
- series: SUPERFLEX Plus M (C)
- shielding: Tinned copper braid
- temperature: Moving -25°C – +80°C, Fixed -40°C – +80°C
- temperature range: Moving -25°C - +90°C, Fixed -40°C - +90°C
- total weight lbs/mft: 316
- ul awm style: 21223
- voltage: 1000V UL AWM, U0/U 0.6/1kV
- weight (lbs/mft): 288
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
