LUTZE A3082012 CONTROL CABLE
Quick Overview
Manufactured By: LUTZE
Manufacturer Part Number: A3082012
IMS Product Code: 2130125
Packaging: Sold Individually
Description:

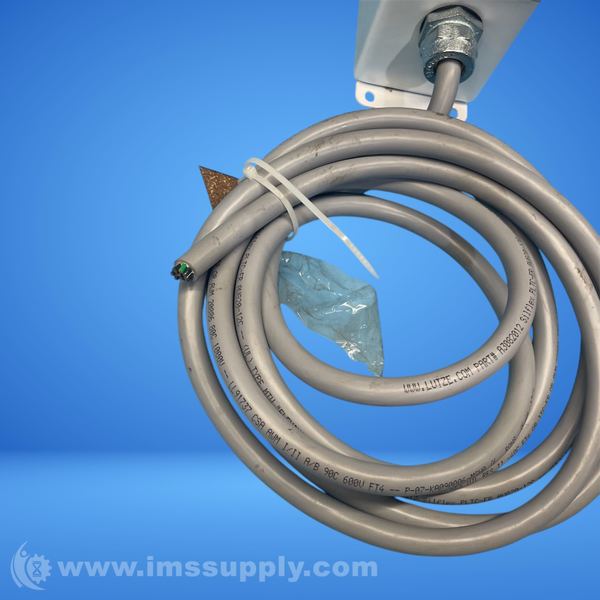

Lutze A3082012 Control Cable
Lutze Silflex control cable with 12 conductors, AWG 20, PVC/Nylon insulation, PVC jacket, gray color. Rated for 1000V WTTC, 600V TC, MTW 90°C, 300V PLTC. Exposed run approval, oil resistant, silicone-free.
Specifications
- Number of Conductors: 12
- Conductor Size: AWG 20
- Insulation Material: PVC/Nylon
- Jacket Material: PVC
- Jacket Color: Gray
- Nominal Voltage: 1000 V WTTC, 600 V TC, MTW 90°C, 300 V PLTC
- Test Voltage: 3000 V
- Temperature Range: -40°C to +90°C static, 5°C to +90°C moving
- Minimum Bending Radius: Moving: D x 15, Fixed: D x 6
- Burning Behavior: UL 1581, FT 4
- Outside Diameter: 0.426 in, 10.8 mm
- Shielding: Unshielded
- Oil Resistant: Oil Res II
- Conductor Strand: 10/30 bare copper
- Conductor Marking: Black with white numbers and one green/yellow ground
- Approval Listing Regulations: PLTC-ER, ITC-ER, AWM Style 20886, (UL) Type MTW, DP-1, c(UL) TC and CIC FT4, RoHS, REACH
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
