LUTZE WRA960-24 3-PHASE POWER SUPPLY
Quick Overview
Manufactured By: LUTZE
Manufacturer Part Number: WRA960-24
IMS Product Code: 1949345
Packaging: Sold Individually
Description:

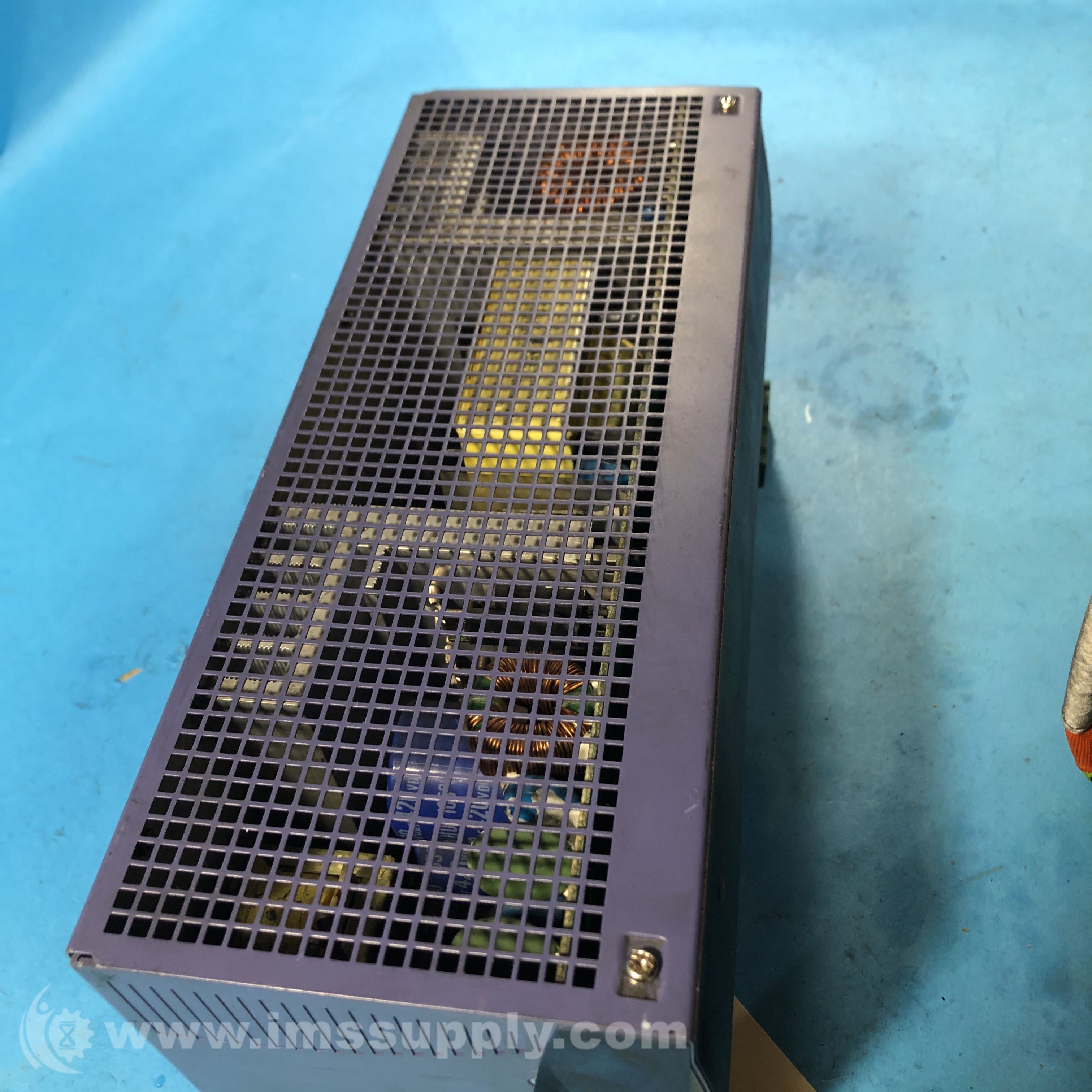

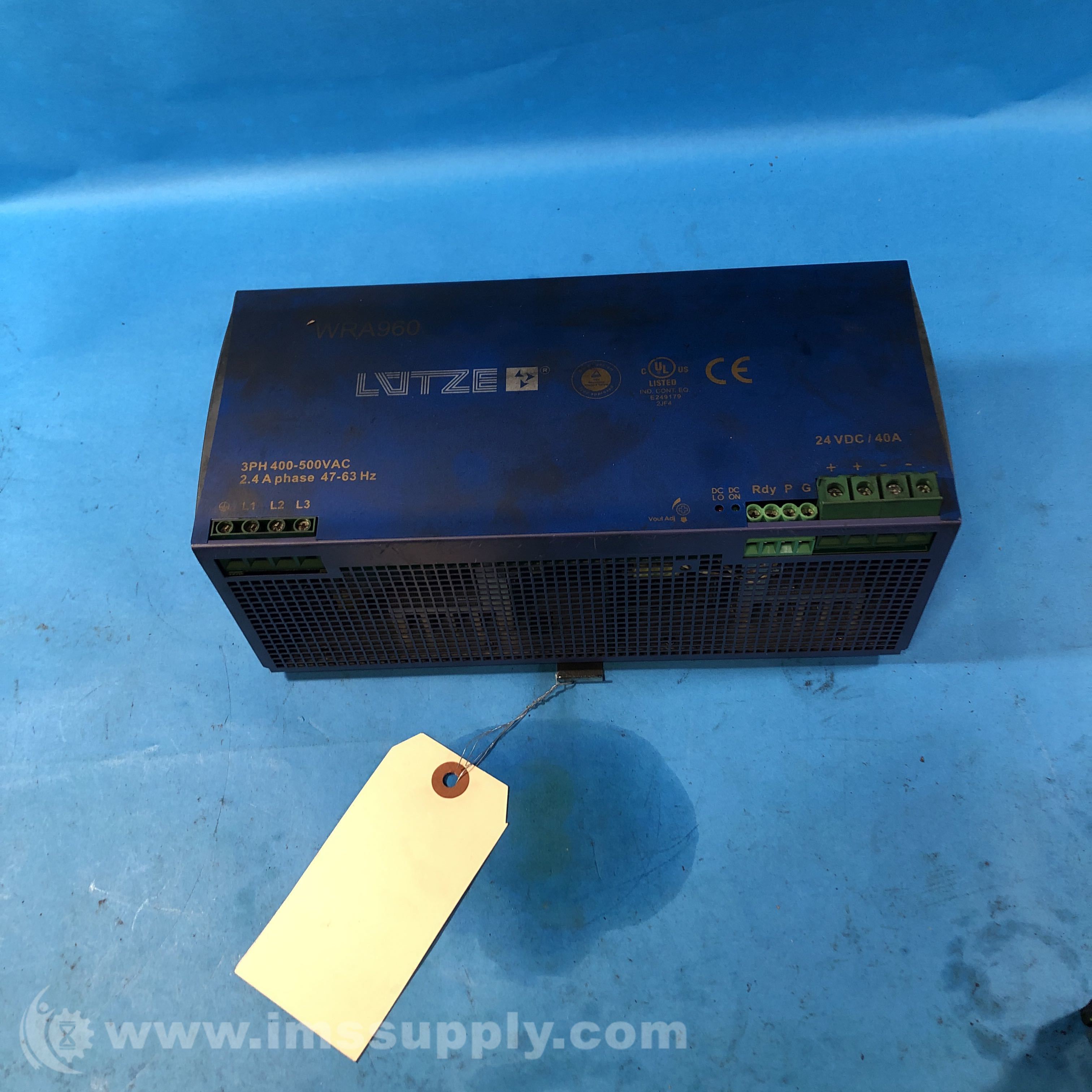

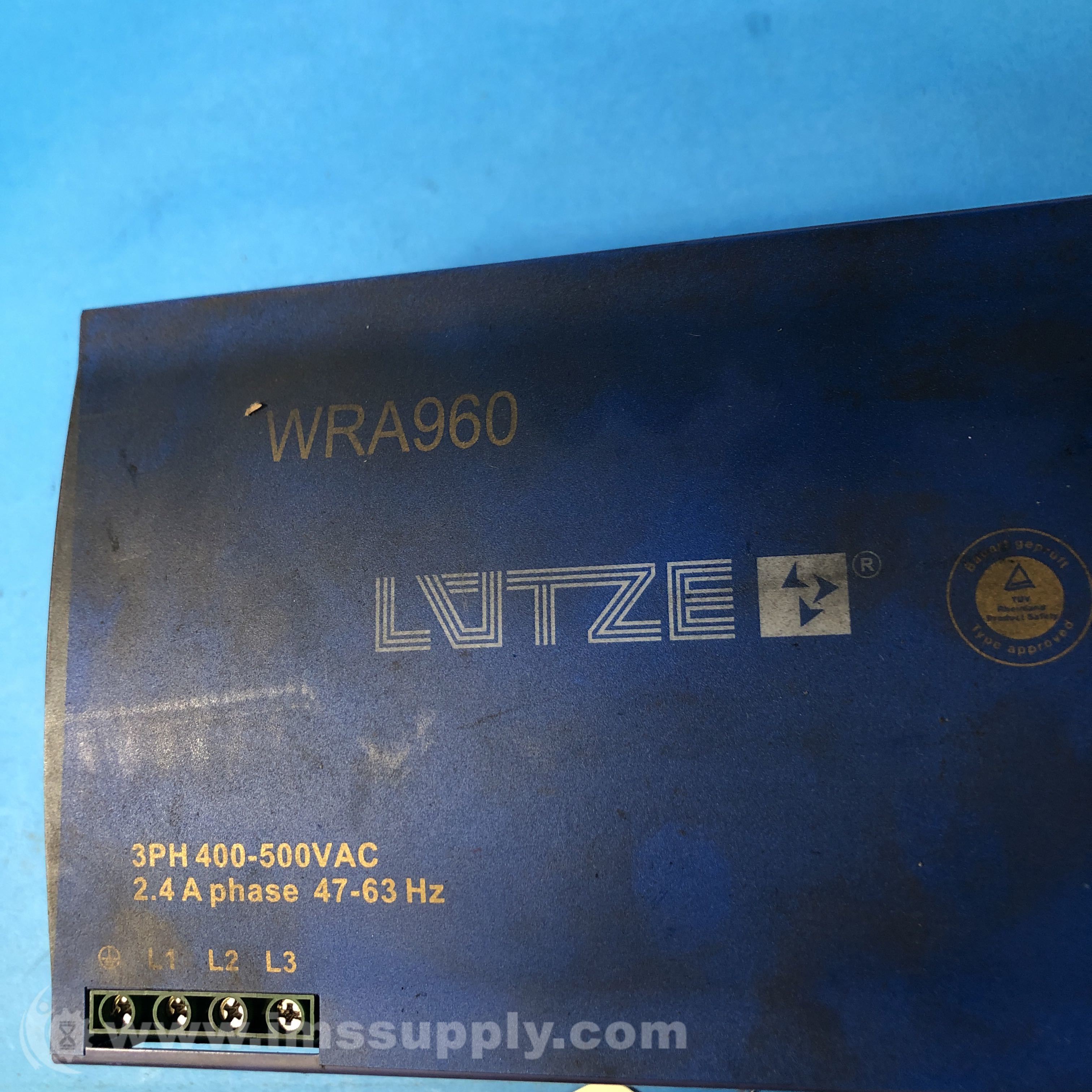

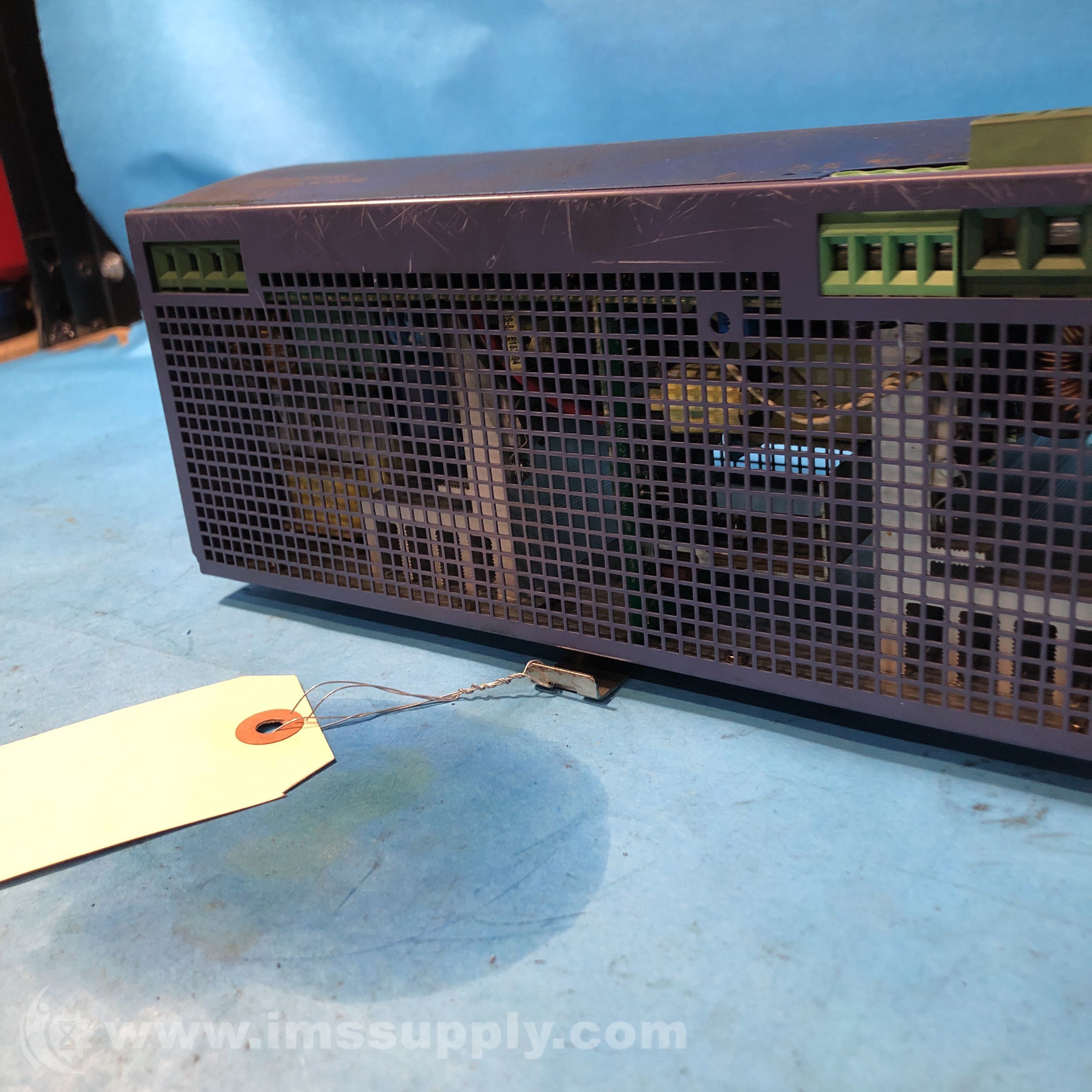

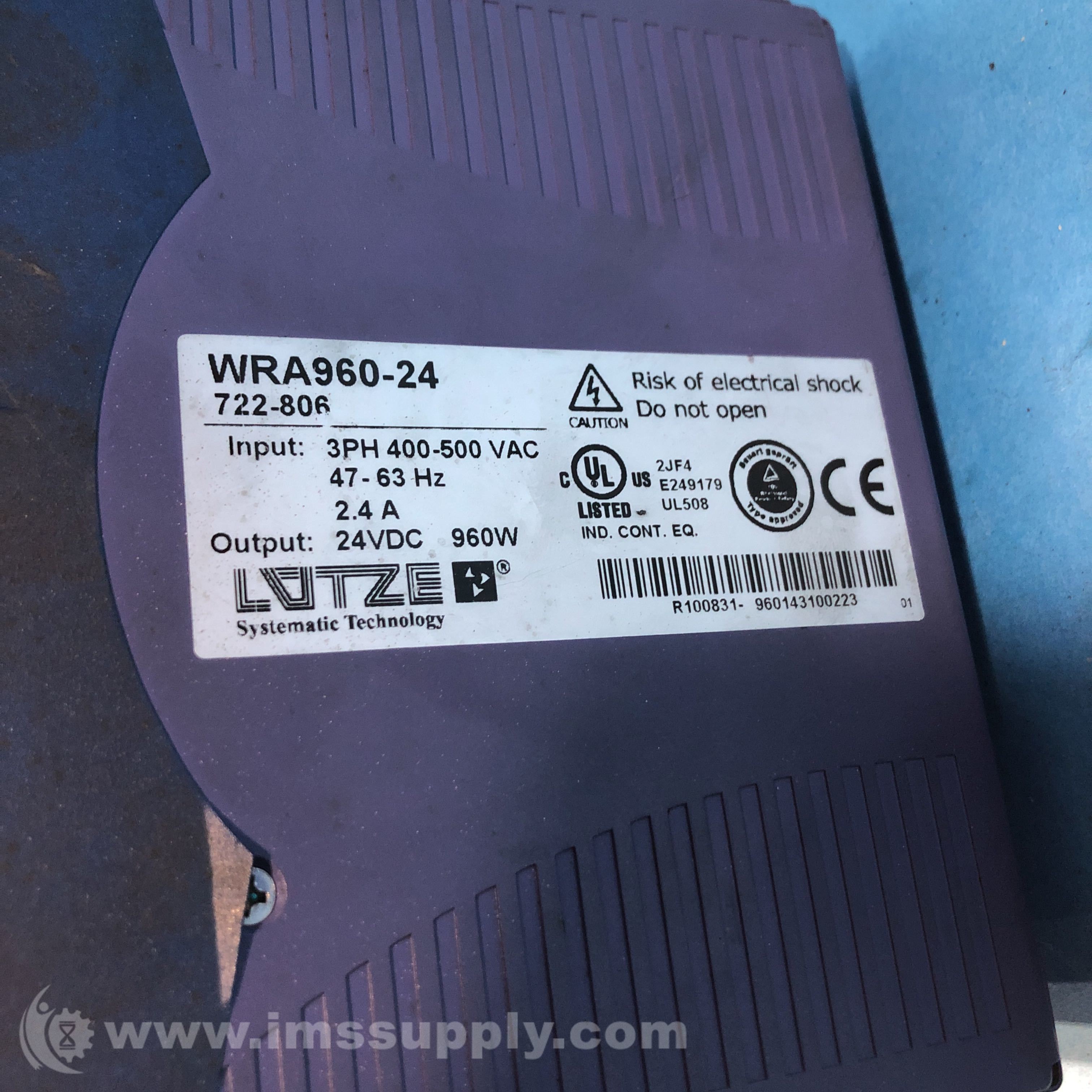

Lutze WRA960-24 3-Phase Power Supply
Primary Switchmode Power Supply with PFC, 3-Phase input: AC 340-576V, DC 480-820V, Output: DC 24V Adjustable, 960W
Specifications
- Phase: 3
- Wattage: 960
- Input AC: 340-576V
- Input DC: 480-820V
- Output: DC 24V
- Number of phases: 3
- Rated voltage UN: 3 ~ AC 400~500 V
- Operation voltage range: 3 ~ AC 340~575 V / 3 ~ DC 480~820 V
- Line frequency: 47~63 Hz
- Rated current IN: 2.4 A @ AC 400 V / 1.6 A @ AC 480 V
- Internal fuse: T6, 3 A/per Phase
- Power Factor Correction P.F.C.: 0.7
- Rated voltage UN: DC24V
- Rated current IN: 40 A
- Setting range Uout min./Uout max.: 22.5/28.5 V
- Efficiency: 92 %
- Over voltage protection: 125~137 %
- Short circuit: Hiccup Mode
- Switching frequency: approx. 52 kHz
- Insulation voltage input / output: DC 4.2 kV
- Insulation voltage input / ground: DC 2.1 kV
- Insulation voltage output / ground: DC 700 V
- Operation temperature range: -25 degrees C ~ +71 degrees C
- Storage temperature range: -25 degrees C~85 degrees C
- Cooling: Air convection
- Housing material: Metal
- Mounting: DIN rail mountable
- Protection class: IP20
- Weight: 3.2 kg
- Dimensions (w x h x d): 276 x 125 x 118 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
