MARATHON Y988 3HP MOTOR
Quick Overview
Manufactured By: MARATHON ELECTRIC
Manufacturer Part Number: Y988
IMS Product Code: 2156726
Packaging: Sold Individually
Description:

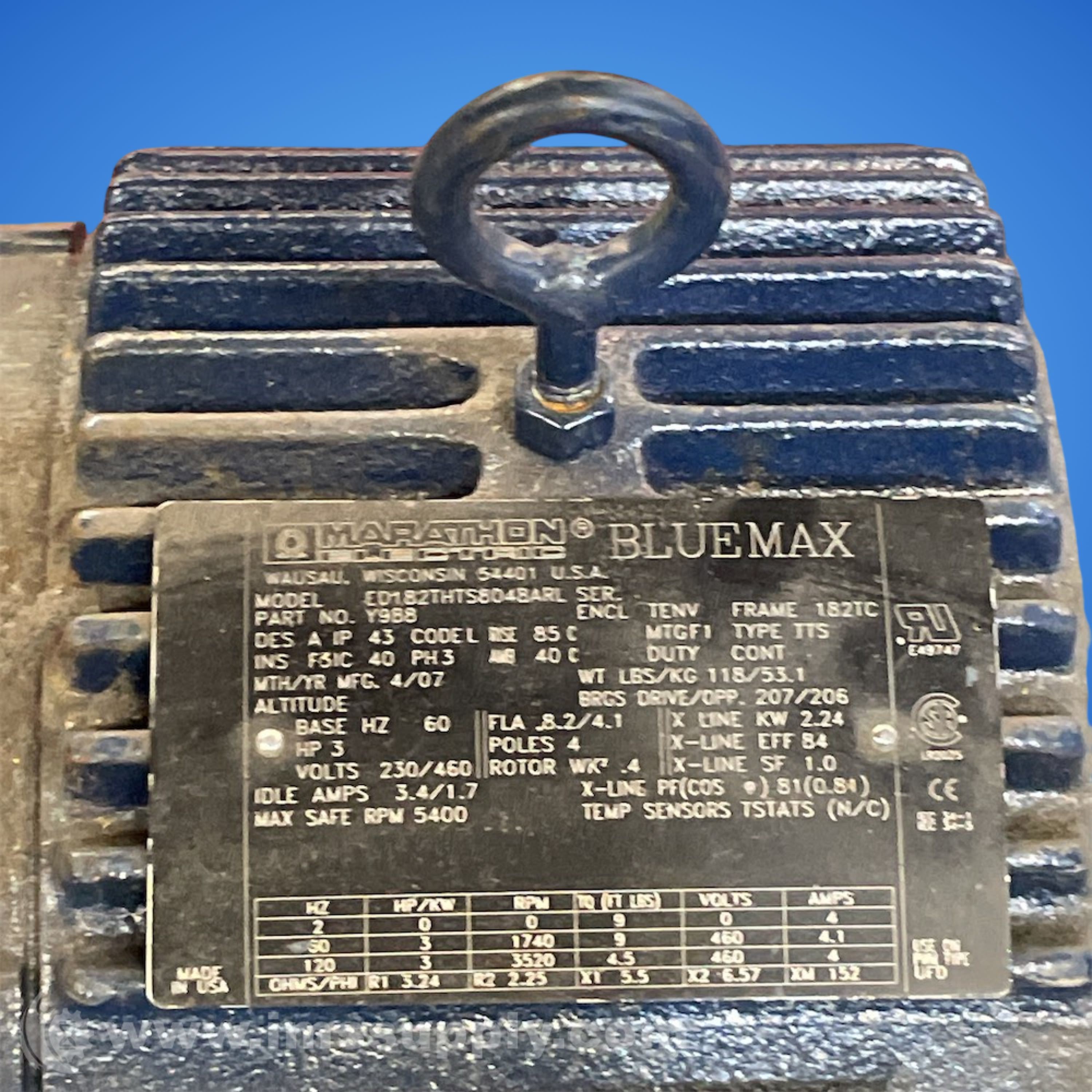

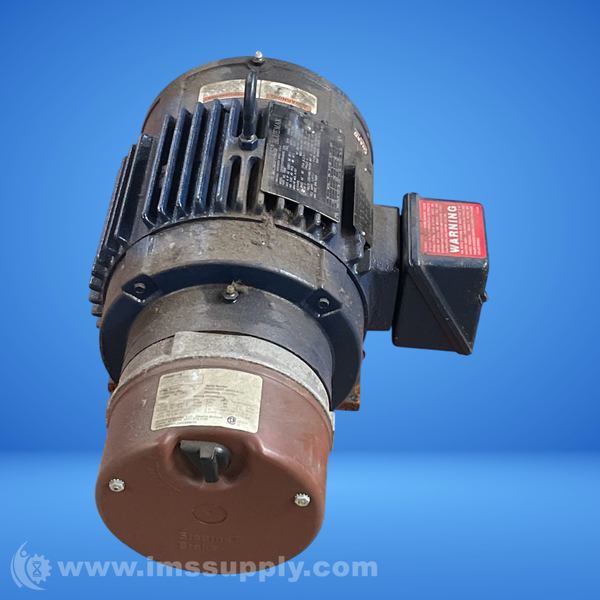

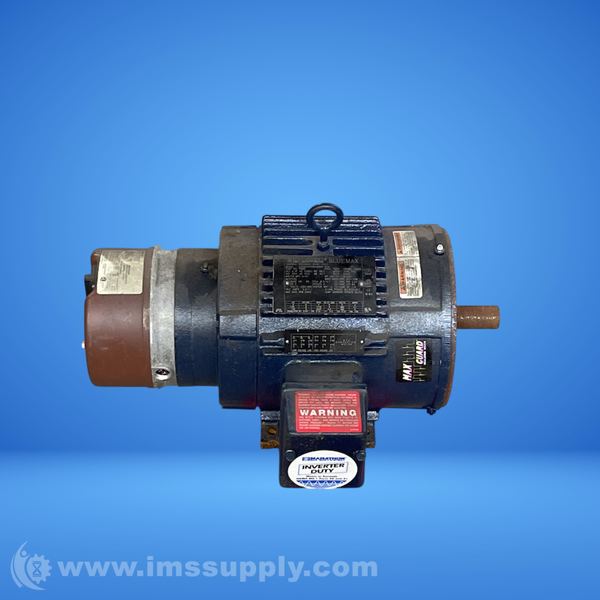

Marathon Y988 3HP Motor
3 HP, 1800 RPM, three-phase general purpose motor with a NEMA 182TC frame and Totally Enclosed Non-Ventilated enclosure
Specifications
- Output HP: 3 Hp
- Output KW: 2.2 kW
- Voltage: 230/460 V
- Phase: 3
- Speed (RPM): 1745 rpm
- Frame Size: 182TC
- Mounting: C-Face
- Enclosure: Totally Enclosed Non Ventilated
- Service Factor: 1.0
- Thermal Protection: Thermostat
- Efficiency: 84 %
- Ambient Temperature: 40 degrees C
- Frequency: 60 Hz
- Current: 8.2/4.1 A
- Power Factor: 81
- Duty: Continuous
- Insulation Class: F
- Design Code: INV
- KVA Code: L
- Drive End Bearing Size: 6207
- Opp Drive End Bearing Size: 6206
- UL: Recognized
- CSA: Y
- CE: Y
- IP Code: 43
- Number of Speeds: 1
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 12 minutes.
