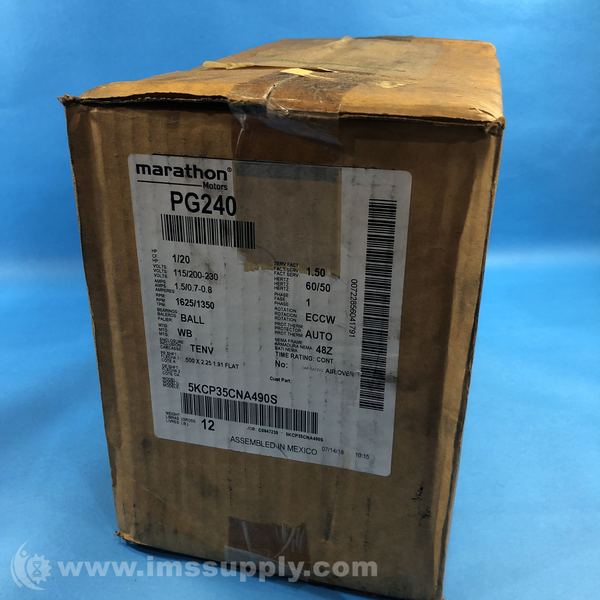

MARATHON 5KCP35CNA490S AC MOTOR
Quick Overview
Manufactured By: MARATHON MOTORS
Manufacturer Part Number: 5KCP35CNA490S
IMS Product Code: 1940908
Packaging: Sold Individually
Description:
Marathon 5KCP35CNA490S AC Motor
1/20 HP, 1625 RPM, 115/200/230 Volts, 1 Phase, TENV Enclosure, 48Z Frame
Specifications
- Horsepower: 1/20 HP
- Speed: 1625 RPM
- Voltage: 115-200/230 Volts
- Phase: 1
- Enclosure: TENV
- Frame Size: 48Z
- Mounting Type: Rigid base
- Service Factor: 1.5
- Efficiency @ 100% Load: 35.50%
- Duty Rating: Continuous
- Overload Protector: AUTO
- Electrical Type: Permanent Split Capacitor(PSC)
- Frame Material: Rolled Steel
- Overall Length: 10.32 in
- Shaft Diameter: 0.500 in
- Insulation Class: B
- Ambient Temperature: 65 degrees C
- Agency Approvals: UL, CSA, CE
- Net Weight: 12 lbs
- Gross Weight: 12 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 28 minutes.
