MARTIN SPROCKET & GEAR INC 3 B 34 SH BUSHING BORE V-BELT PULLEY
Quick Overview
Manufactured By: MARTIN SPROCKET & GEAR INC
Manufacturer Part Number: 3 B 34 SH
IMS Product Code: 1791949
Packaging: Sold Individually
Description:

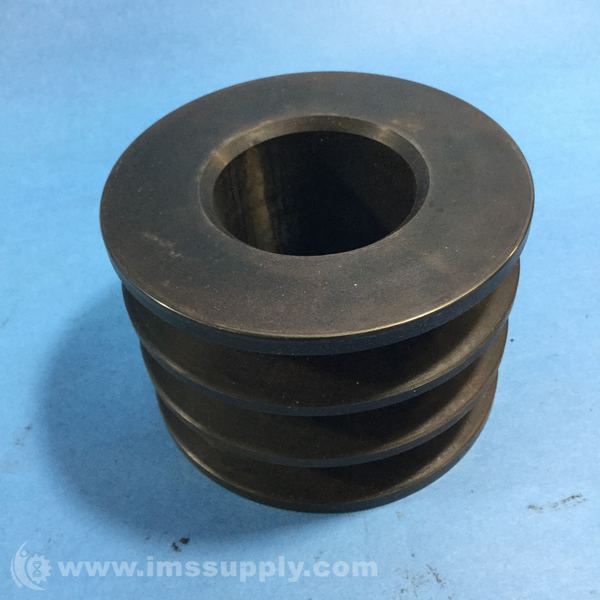

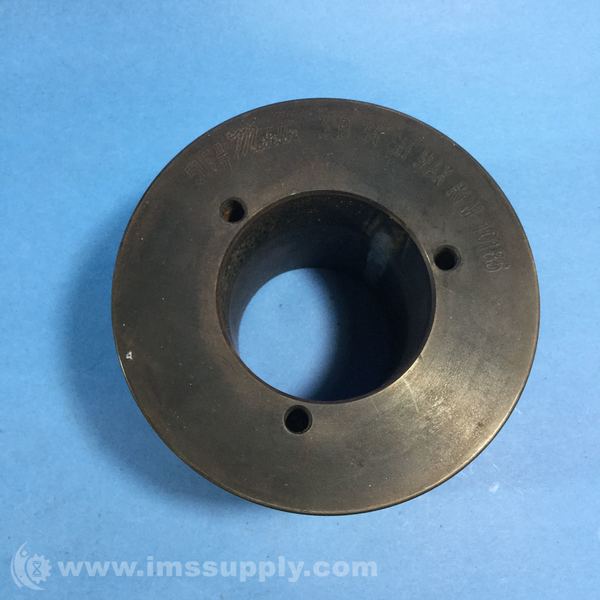

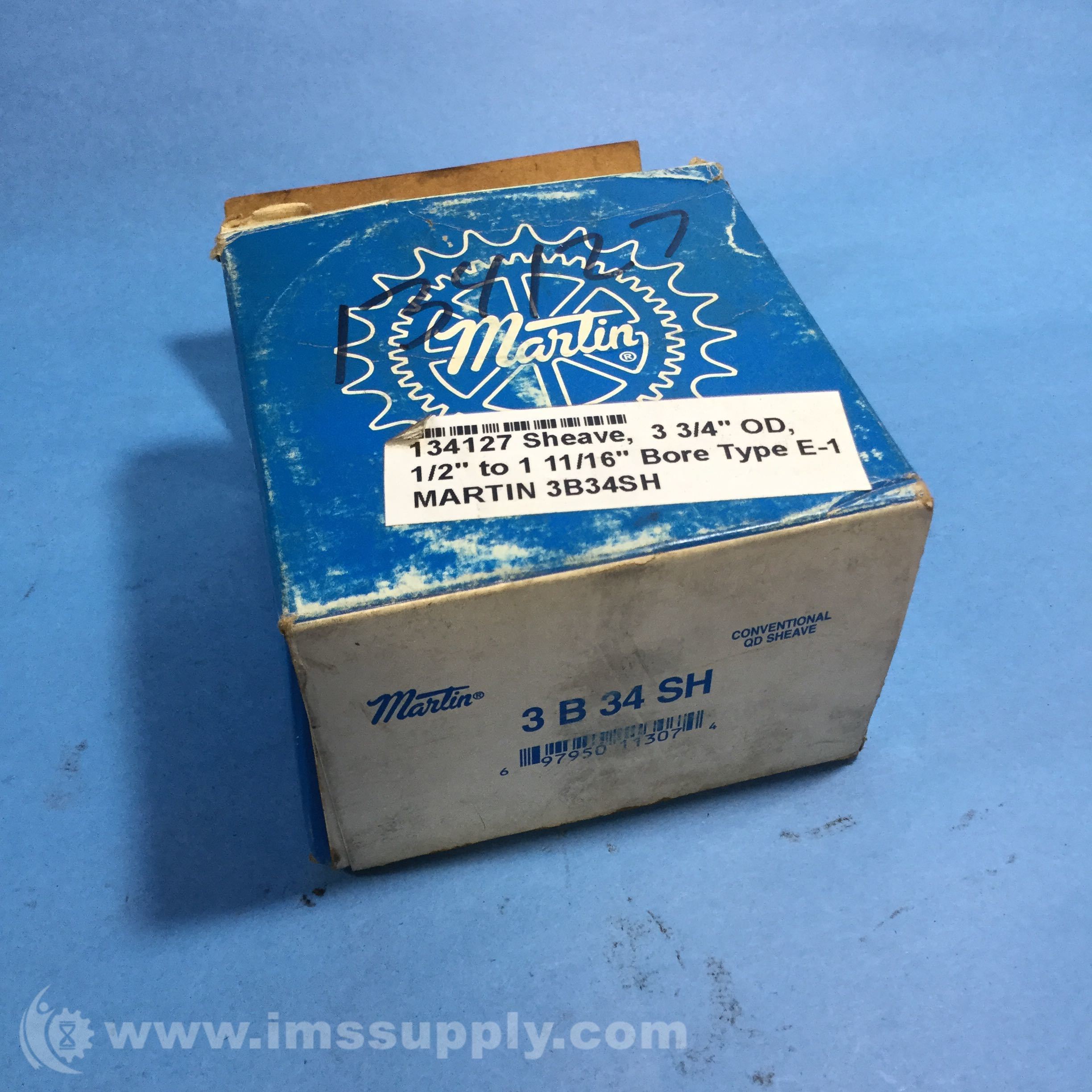

Martin Sprocket & Gear Inc 3 B 34 SH Bushing Bore V-Belt Pulley
Specifications:
- Number Of Grooves: 3
- Keyway Size: 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 3/16 x 3/32 (7/8 Bore) in, 3/8 x 1/16 (1-7/16 to 1-1/2 Bore) in, 3/8 x 1/16 (1-9/16 to 1-5/8 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in
- Outside Diameter: 3.75 in
- Material: Cast Iron
- Length Through Bore: 1-5/16 in
- Bushing Bore Range: 1/2 to 1-11/16 in
- Face Width: 2-1/2 in
- Pitch Diameter: 3 (A) in, 3.4 (B) in
- Belt Section Size: B, A
- Overall Width: 2-1/2 in
- Bore Type: QD Bushed
- Pulley Construction: Plain
- Bushing Series: SH
