MARTIN SPROCKET & GEAR B872-4 STEEL BEVEL GEAR
Quick Overview
Manufactured By: MARTIN SPROCKET & GEAR
Manufacturer Part Number: B872-4
IMS Product Code: 1897471
Packaging: Sold Individually
Description:

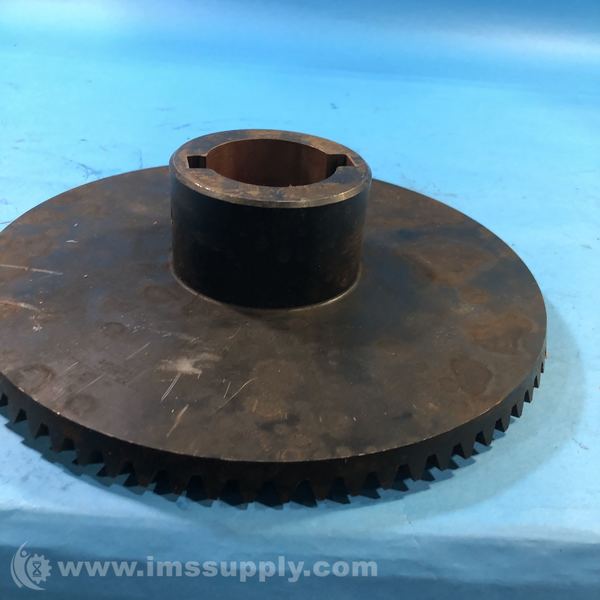

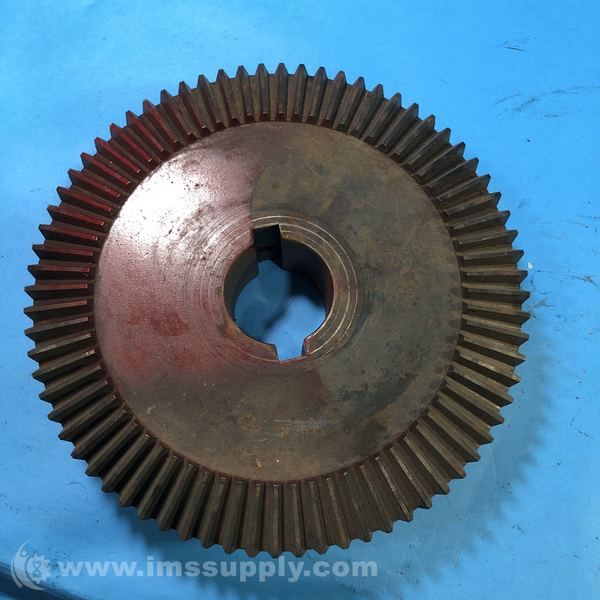

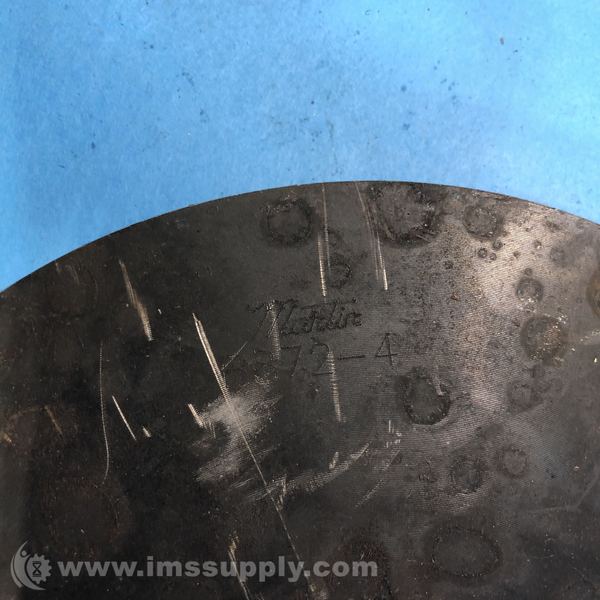

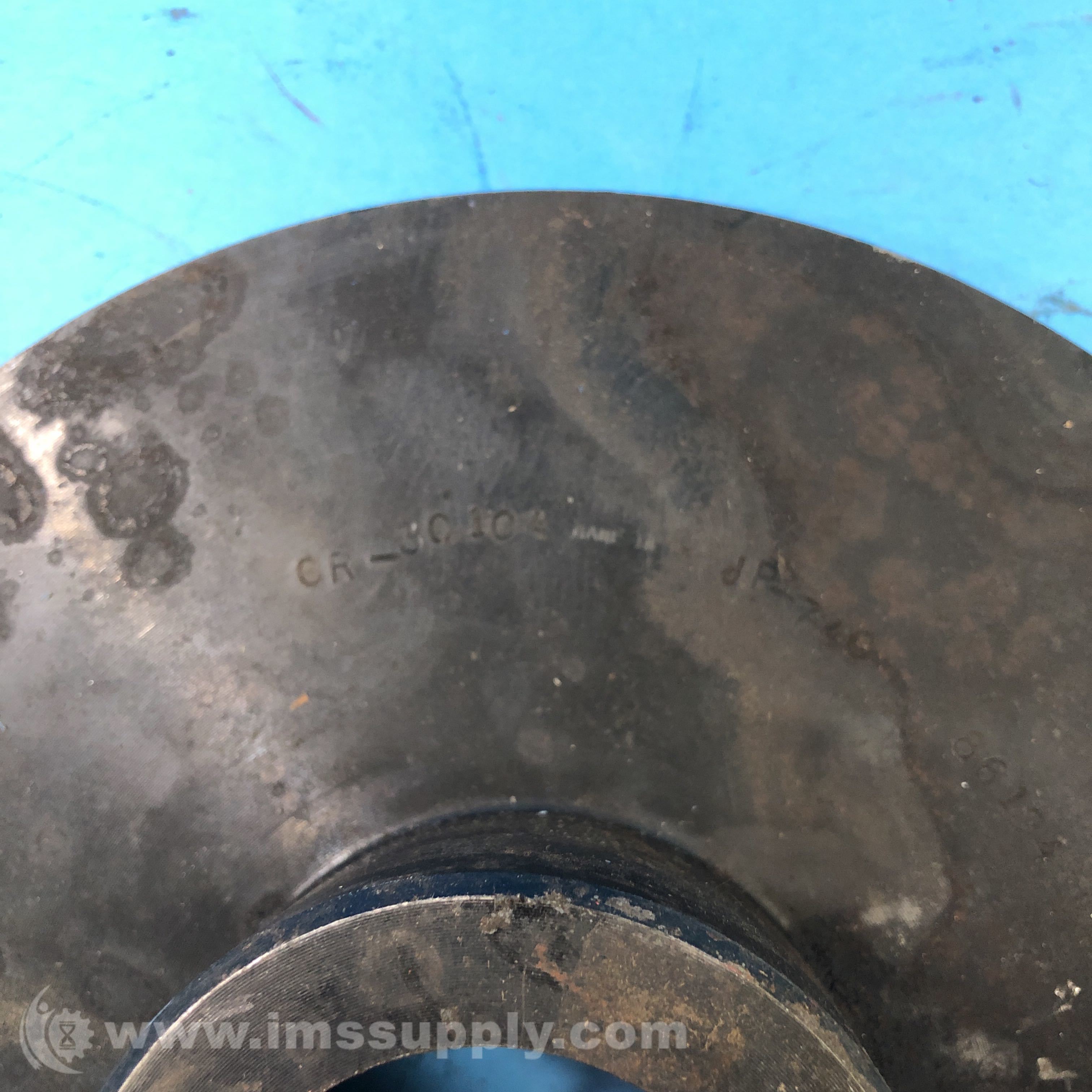

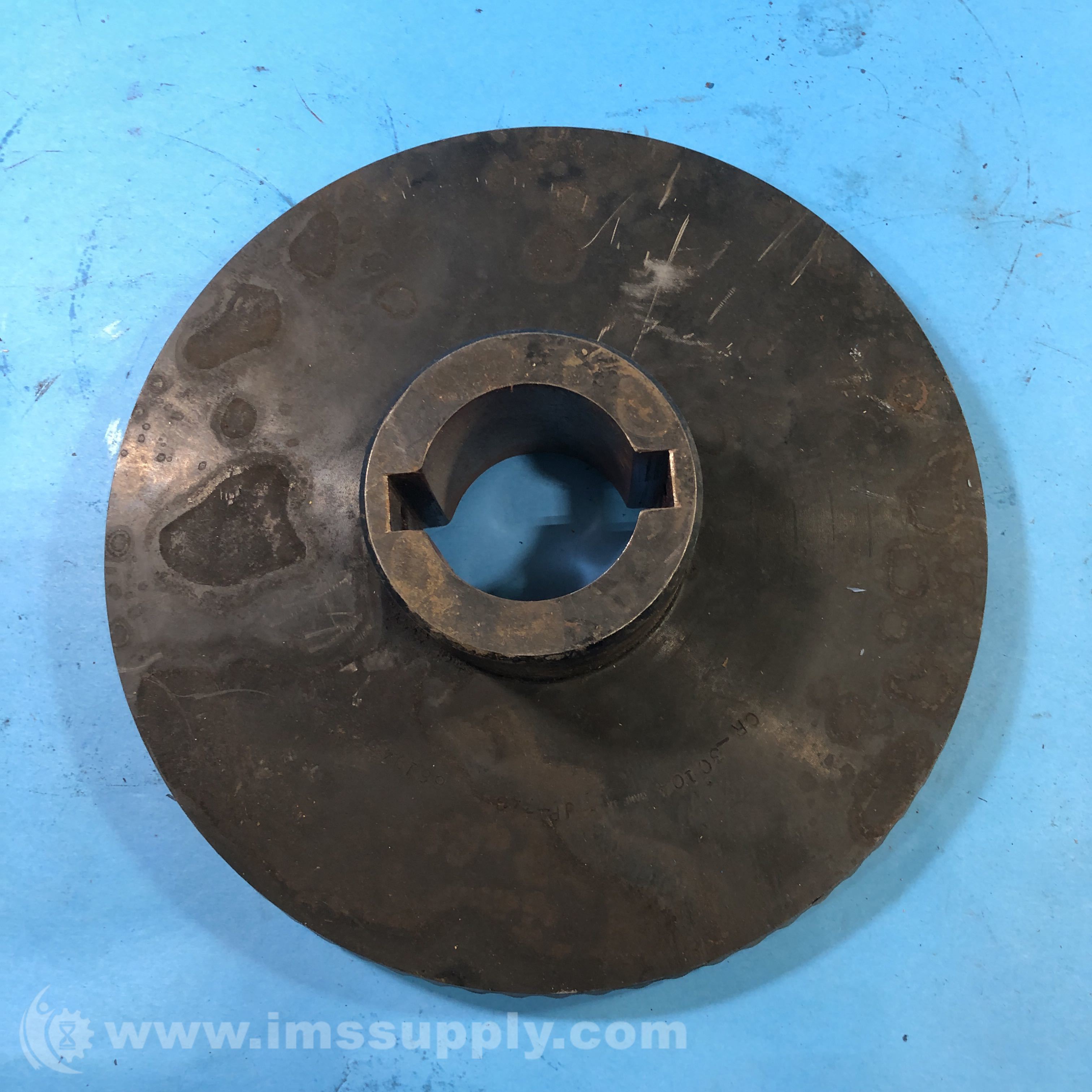

Martin Sprocket & Gear B872-4 Steel Bevel Gear
Steel bevel gear with 72 teeth, 9.033" outside diameter, and 8 diametral pitch. Designed for right-angle power transmission in industrial drives.
Specifications
- Type: Plain Bevel
- Gear Type: Bevel
- Material: Steel
- Diametral Pitch: 8
- Pressure Angle: 20 deg
- Number of Teeth: 72
- Pitch Diameter: 9 in
- Face Width: 1.22 in
- Bore Diameter: 1.125 to 1.815 in
- Outside Diameter: 9.033 in
- Hub Diameter: 3 in
- Hub Projection: 1.688 in
- Overall Length: 2-5/16 in
- Gear Ratio: 4:1
- Mating Gear: B818-4
- Mounting Distance: 3.250 in
- Weight: 12.220 lb
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
