MARTIN SPROCKET & GEAR E 2 QUICK DISCONNECT BUSHING
Quick Overview
Manufactured By: MARTIN SPROCKET & GEAR
Manufacturer Part Number: E 2
IMS Product Code: 1791726
Packaging: Sold Individually
Description:

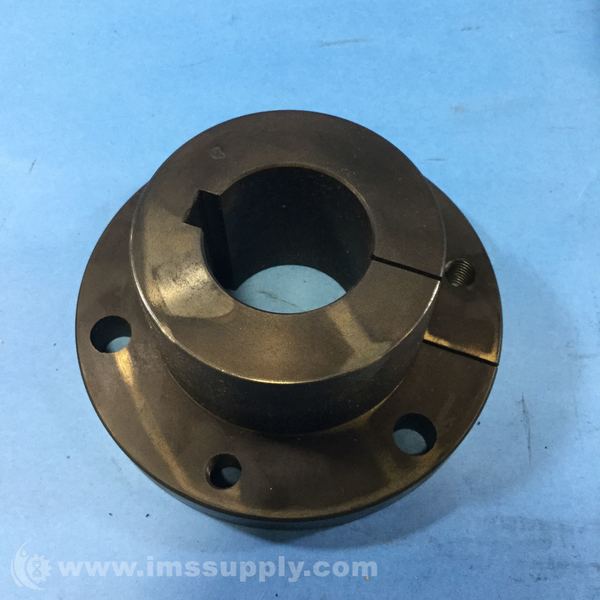

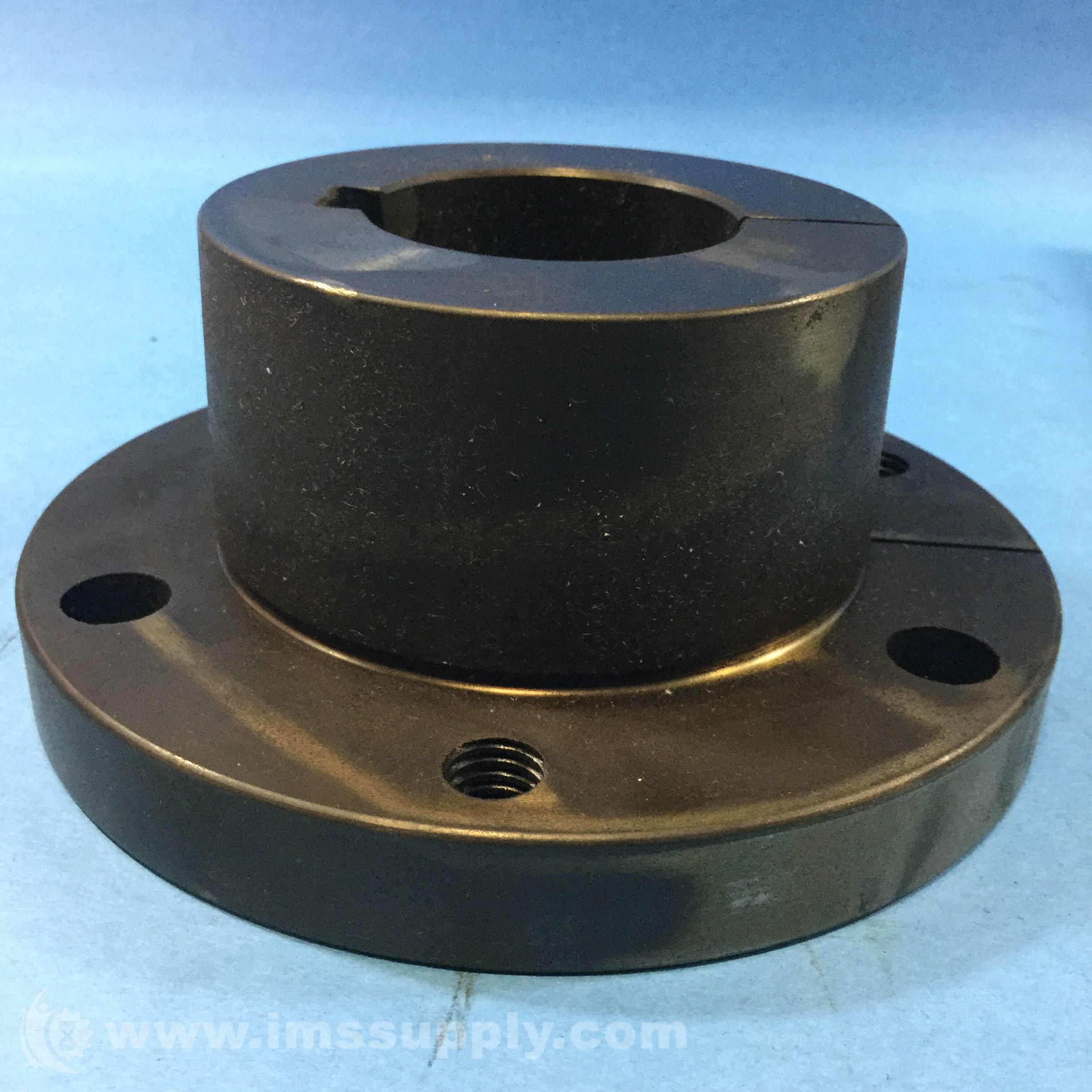

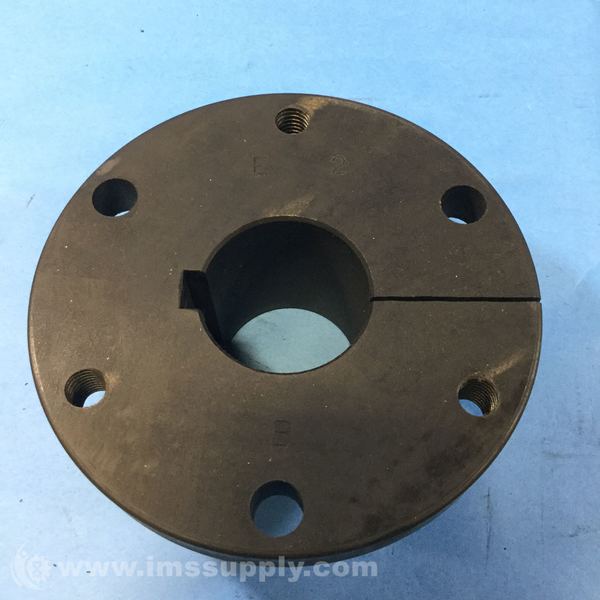

Martin Sprocket & Gear E 2 Quick Disconnect Bushing
Specifications:
- Bore Diameter: 2.0000 in
- Screw Torque: 720 in-lbs
- Flange Outside Diameter: 6.0000 in
- Barrel Diameter: 3.834 in
- Flange Thickness: 0.7500 in
- Barrel Length: 1-7/8 in
- Length Through Bore: 2.6250 in
- Bolt Circle Diameter: 5 in
- Bushing Size: E
- Number Of Bolt Holes: 3
- Bore Type: Finished w/ Keyway
- Screw Thread Size: 1/2-13 in
- Keyway Size: 1/2 x 1/4 in
- Screw Length: 2-3/4 in
- Material: Cast Iron
- Type: Reverse
