MARTIN 2050B19 DOUBLE PITCH SPROCKET
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 2050B19
IMS Product Code: 1846033
Packaging: Sold Individually
Description:

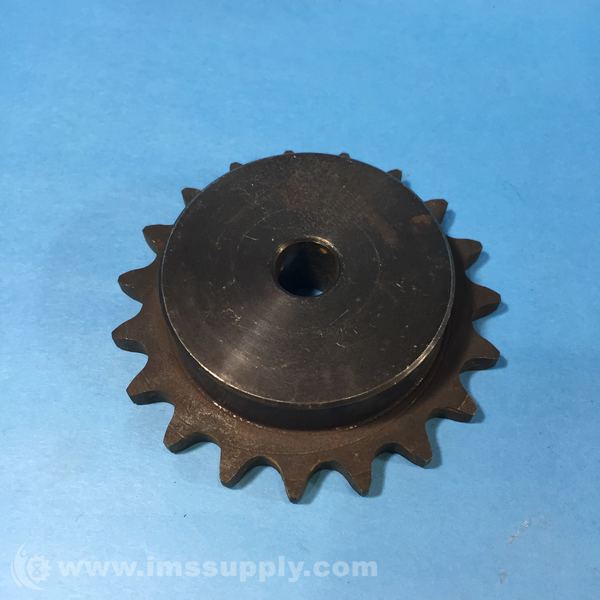

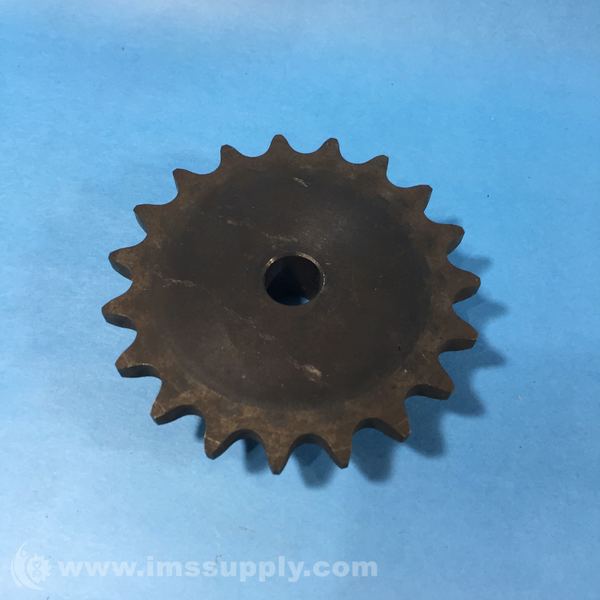

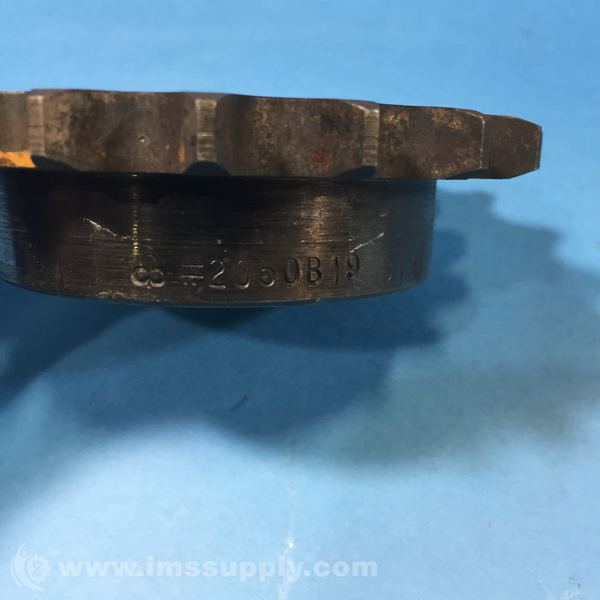

Martin 2050B19 Double Pitch Sprocket
Type B double pitch sprocket with 19 teeth, 1.25 inch pitch, and 4.120 inch outside diameter. Steel construction with hub on one side. Equivalent to #50 chain for conveyor and slow-speed drive applications.
Specifications
- Bore Type: Stock Bore
- Chain Number: 2050
- Chain Pitch: 1.25 inches
- Construction Detail: Solid
- Hardened Teeth: No
- Hub Configuration: B
- Hub Outside Diameter: 2.984 inches
- Hub Recessed For Chain: No
- Length thru Bore: 1 inch
- Manufacturer: Martin
- Material: Steel
- Max Bore Size: 1.969 inches
- Min Bore Size: 0.625 inches
- Number Of Teeth: 19
- Number of Chain Rows: 1
- Outside Diameter: 4.120 inches
- Pitch: 1.25 inches
- Pitch Diameter: 3.850 inches
- Single Strand Tooth Thickness: 0.343 inches
- Weight: 2.24 lbs.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 2 minutes.
