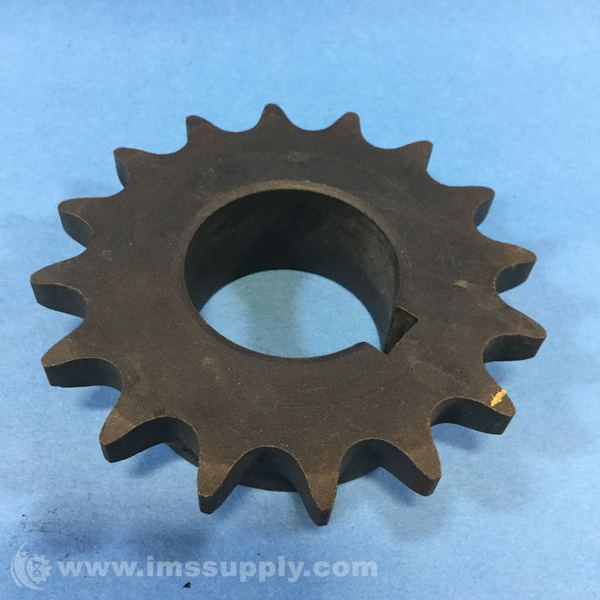

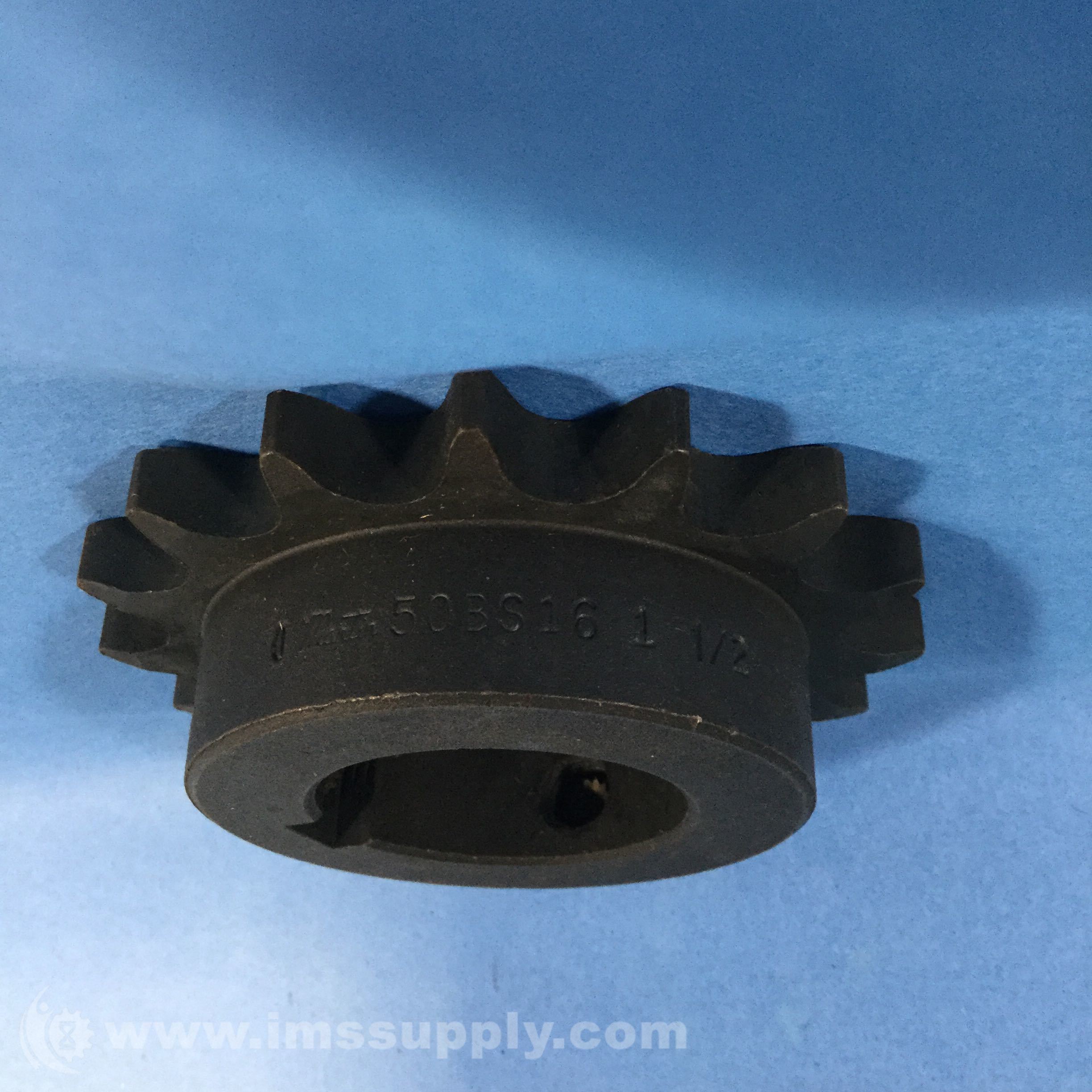

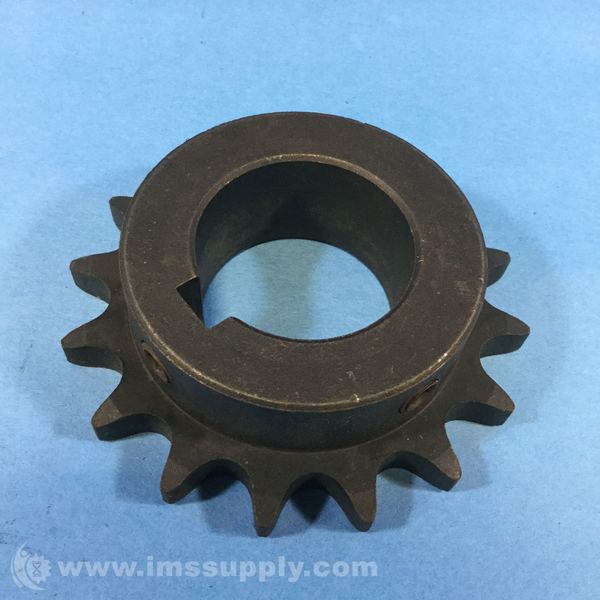

MARTIN 50BS16 1 1/2 FINISHED BORE SPROCKET - 50 / 5/8 IN
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 50BS16 1 1/2
IMS Product Code: 1792608
Packaging: Sold Individually
Description:
Martin 50BS16 1 1/2 Finished Bore Sprocket - 50 / 5/8 in, Finished w/ Keyway, 1-1/2 in Bore , 16 Teeth, Steel
Specifications:
- Number of teeth: 16
- Number of hubs: 1
- Bore diameter: 1-1/2 in
- Pitch type: Single
- Length through bore: 1 in
- Tooth width: 0.343 in
- Outside diameter: 3.52 in
- Pitch diameter: 3.204 in
- Chain number & pitch: 50 / 5/8 in
- Hub diameter: 2-1/2 in
- Bore type: Finished w/ Keyway
- Keyway size: 3/8 x 3/16 in
- Number of strands across: 1
- Hardened teeth: Non-Hardened Teeth
- Material: Steel
