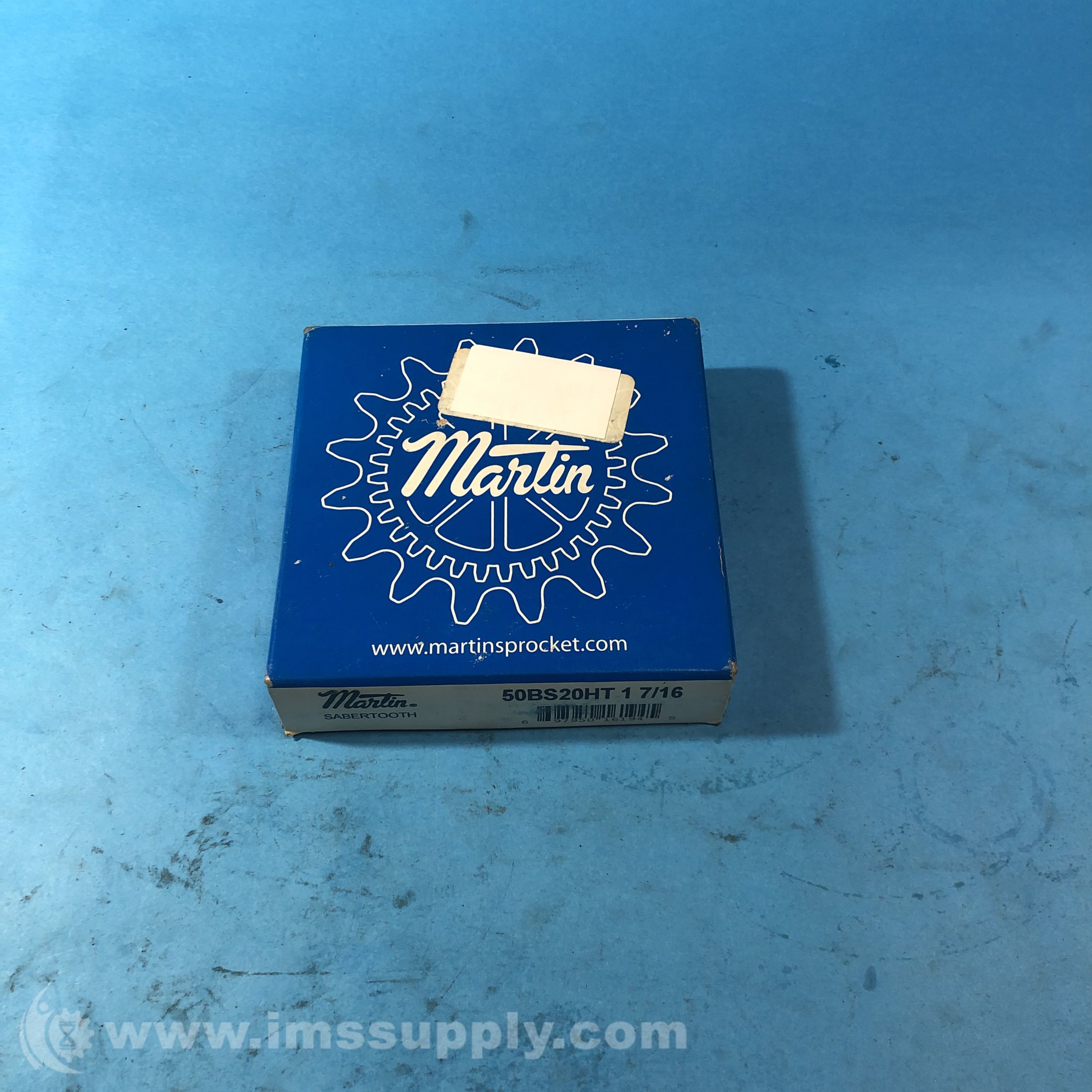

MARTIN 50BS20HT 1 7/16 SABER FINISHED BORE SPROCKET
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 50BS20HT 1 7/16
IMS Product Code: 1940675
Packaging: Sold Individually
Description:
Martin 50BS20HT 1 7/16 SABER Finished Bore Sprocket
Steel sprocket with 20 teeth, 1.4375 inch bore diameter, and hardened teeth.
Specifications
- Bore Type: Bored to Size
- Chain Number: 50
- Chain Number & Pitch: 50 / 5/8 in
- Caliper Diameter: 3.5953 in
- Hardened Teeth: With Hardened Teeth
- Hub Diameter: 3 in
- Hub Outside Diameter: 3.0000 in
- Hub Projection: 0.6563 in
- Keyway Size: 3/8 X 3/16 in
- Length Through Bore: 1.0000 in
- Material: Steel
- Maximum Bore Diameter: 2 in
- Number Of Hubs: 1
- Number Of Set Screws: 2
- Number Of Strands Across: 1
- Number Of Teeth: 20
- Outside Diameter: 4.3210 in
- Pitch Diameter: 3.9953 in
- Pitch Type: Single
- Set Screw Location: 2SS, KEYWAY & 90°
- Set Screw Size: .375-16 X .375 in
- Tooth Thickness: 0.343
- Tooth Width: 0.3430 in
- Type: Finished & Machinable Bore Roller Chain Sprockets
- Weight: 1.83 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 36 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 36 minutes.
