MARTIN 60BS19 1 1/2 BORED TO SIZE SPROCKET
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 60BS19 1 1/2
IMS Product Code: 2148552
Packaging: Sold Individually
Description:

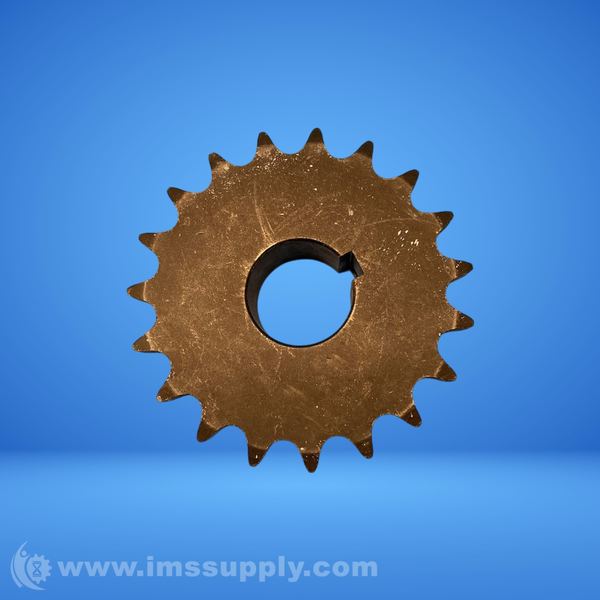

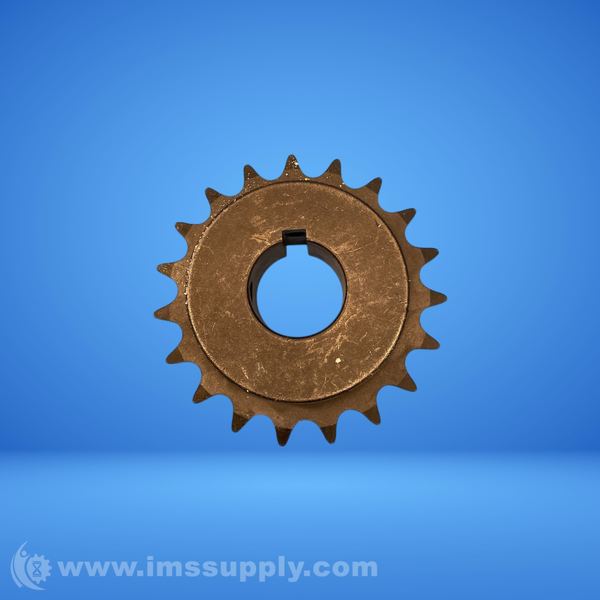

Martin 60BS19 1 1/2 Bored to Size Sprocket
Steel bored-to-size sprocket with 19 teeth, 1.5 inch bore diameter, and 4.945 inch outside diameter. Compatible with #60 chain, 3/4 inch pitch.
Specifications
- chain number & pitch: 60 / 3/4 in
- number of teeth: 19
- bore type: bored to size
- bore diameter: 1.5 in
- material: steel
- outside diameter: 4.945 in
- pitch diameter: 4.5567 in
- caliper diameter: 4.0721 in
- tooth width: 0.459 in
- hub diameter: 3.5 in
- keyway size: 3/8 x 3/16 in
- length through bore: 1.25 in
- weight: 2.7 lbs
