MARTIN 60SH16H STEEL SPROCKET
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 60SH16 H
IMS Product Code: 2132973
Packaging: Sold Individually
Description:

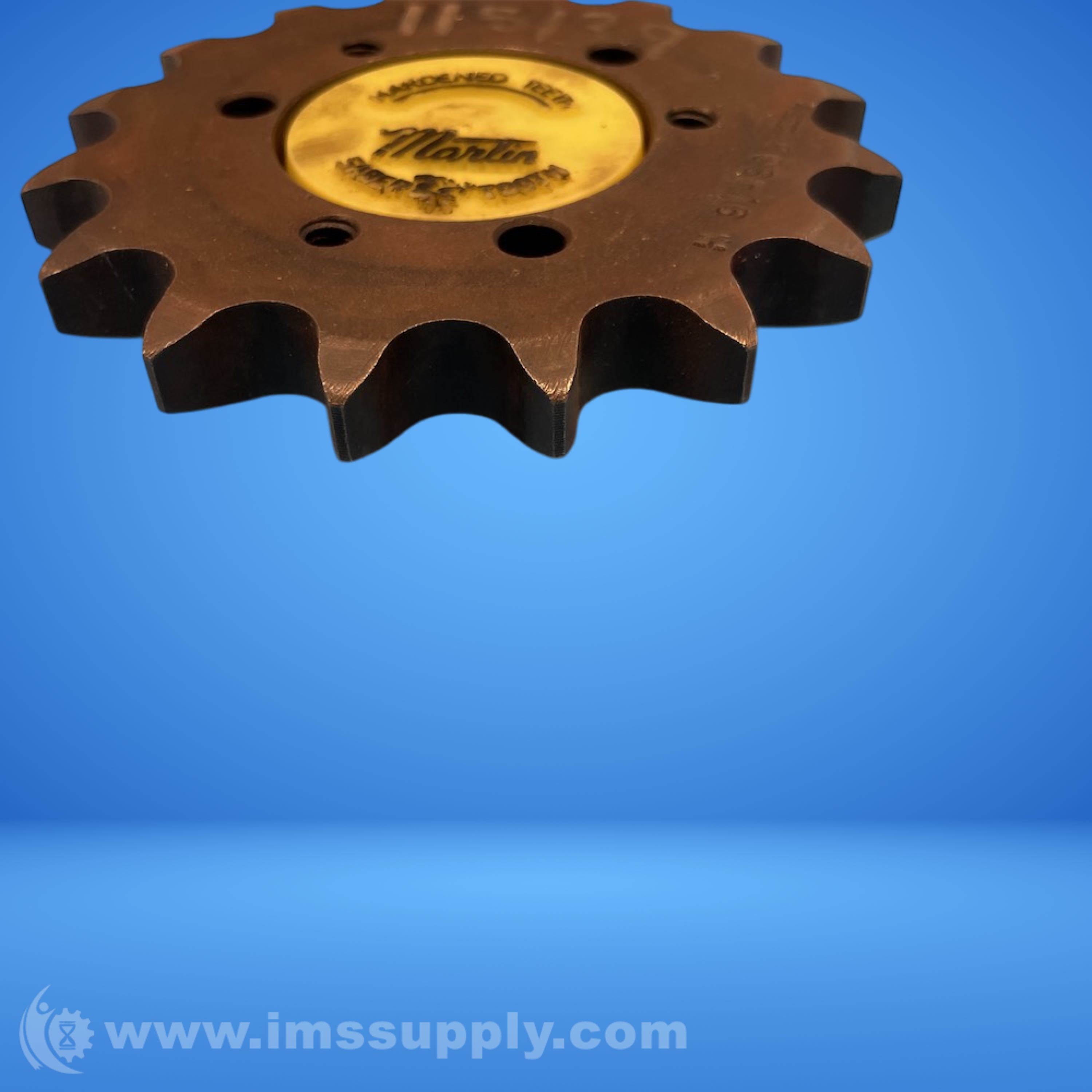

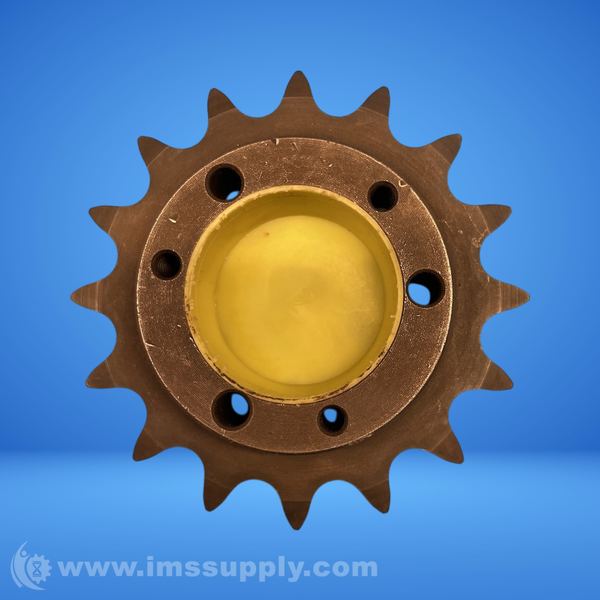

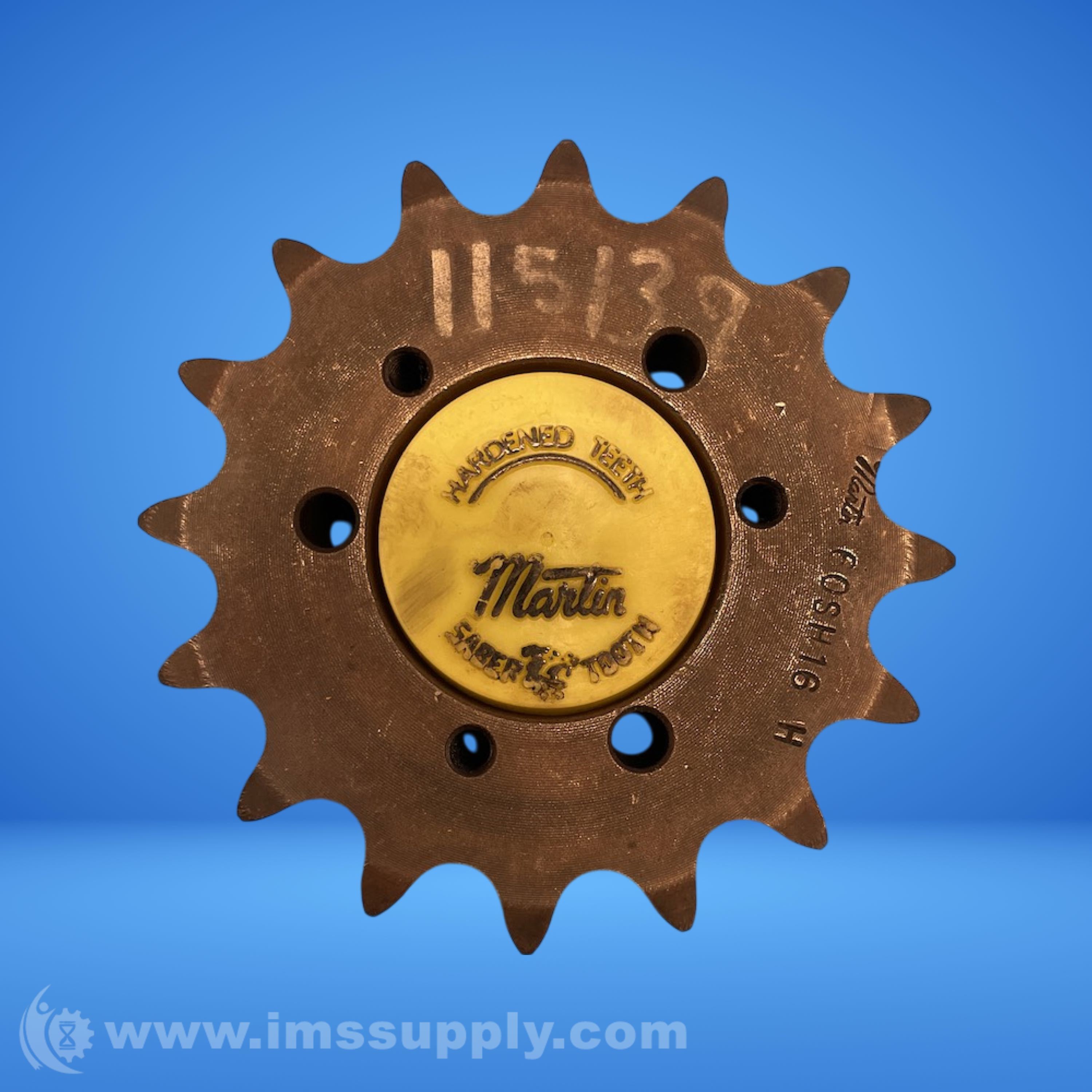

Martin 60SH16H Steel Sprocket
Steel Sprocket with 16 Teeth, 0.750 in. Pitch, Bushed QD Bore
Specifications
- Bushing Type: QD Bushing
- Product Type: Bushed Roller Chain Sprockets
- Bore Type: Bushed
- Chain / Sprocket Type: Standard Roller Chain
- Bushing Size: SH
- Number Of Teeth: 16
- Number Of Strands Across: 1
- Material: Steel
- Number Of Hubs: 1
- Length Through Bore: 0.8125 in
- Bushing Bore Range: 1/2 to 1-5/8 in
- Outside Diameter: 4.2210 in
- Pitch Type: Single
- Hardened Teeth: Yes
- Tooth Width: 0.4590 in
- Tooth Thickness: 0.4590 in
- Pitch Diameter: 4.0816 in
- Caliper Diameter: 3.3754 in
- Hub Diameter: 2-11/16 in
- Hub Outside Diameter: 2.7500 in
- Hub Projection: 0.7188 in
- Number Of Mounting Screws And Loc: 3 at 120 degrees
- Mounting Screw Size: 1/4-20 UNC
- Chain Roller Diameter: 0.4690 in
- Chain Roller Width: 0.5000 in
- Surface Treatment: Protective Coating
- Weight: 1.24 lbs
- Chain Number & Pitch: 60 / 3/4 in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 15 minutes.
