MARTIN 84H100SF TIMING PULLEY
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 84H100SF
IMS Product Code: 2153209
Packaging: Sold Individually
Description:

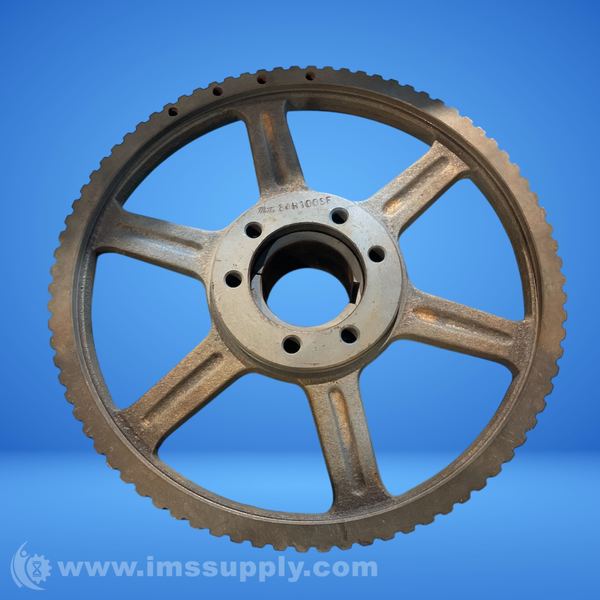

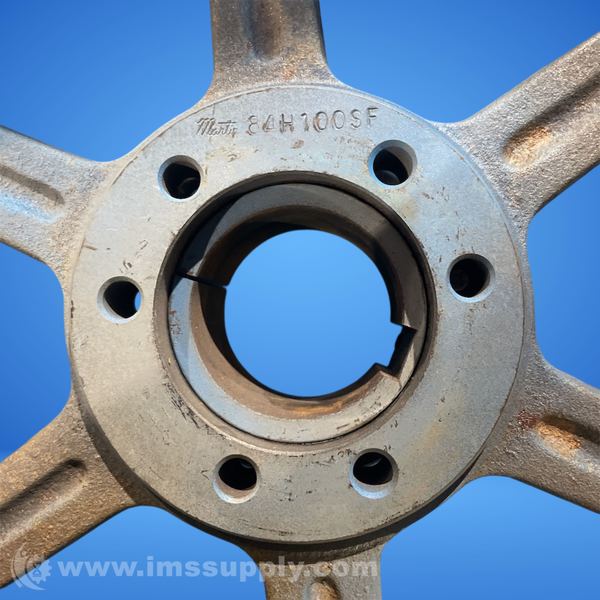

Martin 84H100SF Timing Pulley
Cast iron timing pulley with SF QD bushing, H belt size, 84 teeth, 1/2 inch pitch, 1 inch belt width.
Specifications
- Material: Cast Iron
- Bushing Series: SF
- Belt Size: H
- Number Of Teeth: 84
- Belt Pitch: 1/2 in
- Belt Width: 1 in
- Bore Type: Bushed
- Bushing Type: QD
- Pitch Diameter: 13.369 in
- Outside Diameter: 13.318 in
- Face Width: 1.313 in
- Hub Diameter: 6 in
- Bushing Min Bore Size: 0.5 in
- Bushing Max Bore Size: 2.938 in
- Length Through Bore: 1 1/4 in
- Hub Type: A
Used (Special):

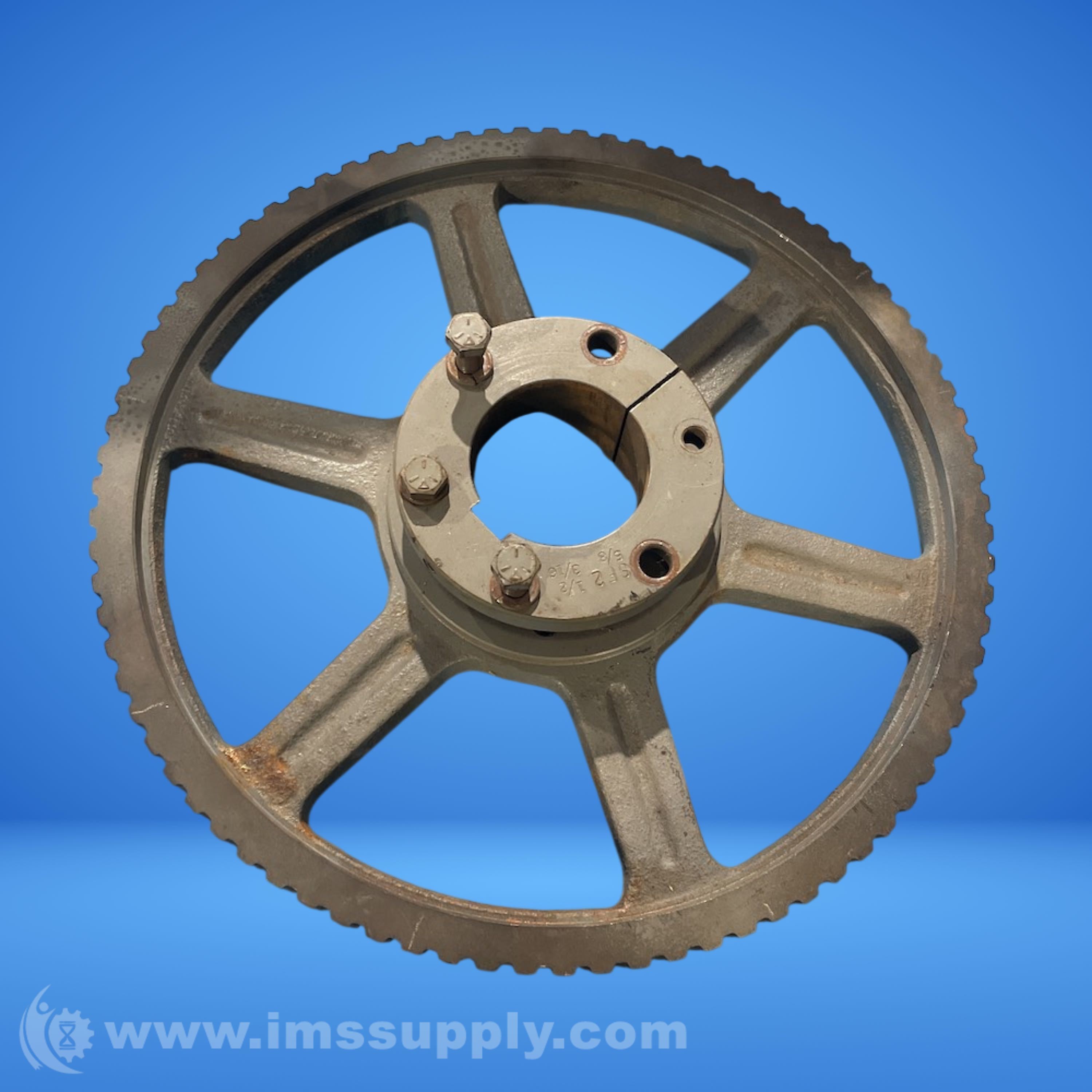

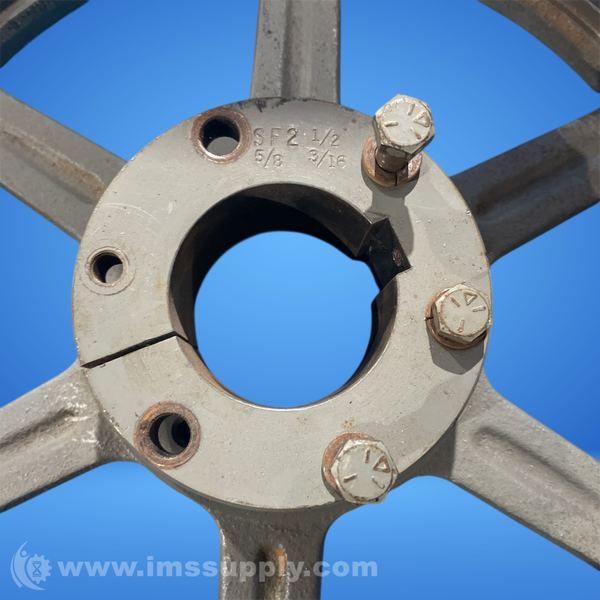

comes with an attachment SF2, comes with three screws and 3 washers, the attachment is missing 3 screws and washers as well.
