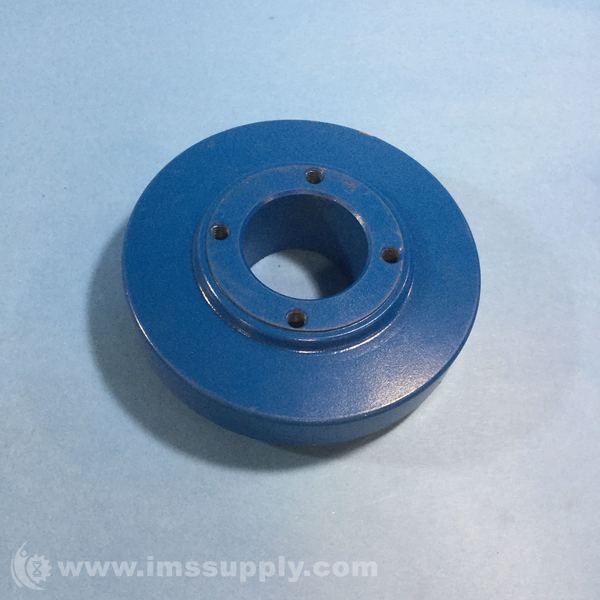

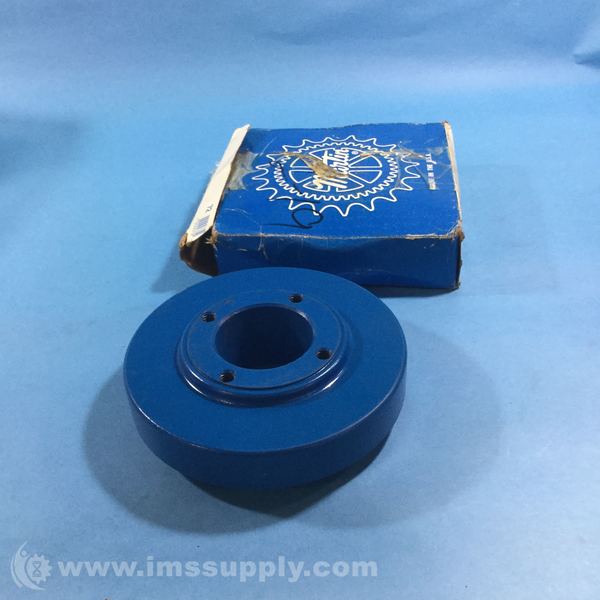

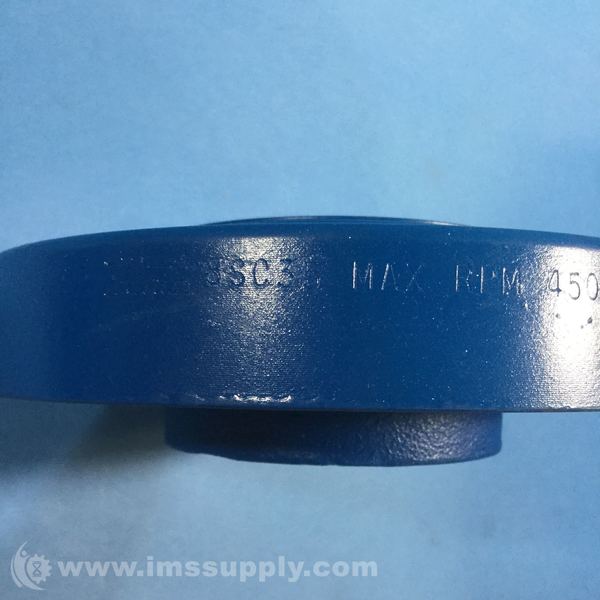

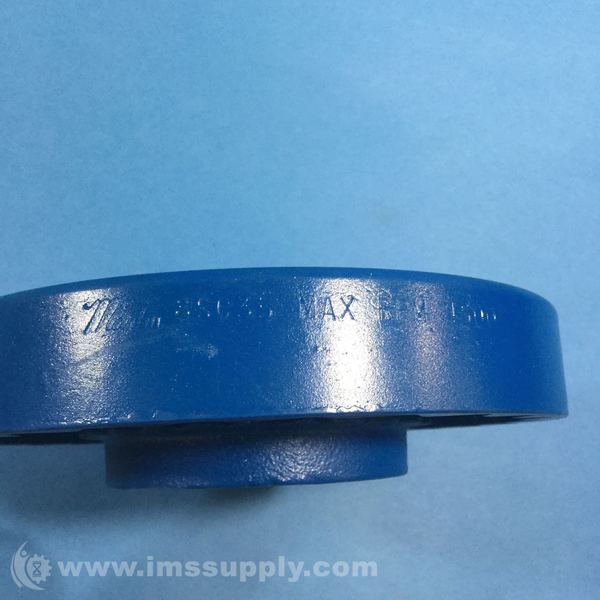

MARTIN 8SC35 SLEEVE COUPLING FLANGE - SPACER FLANGE
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 8SC35
IMS Product Code: 1814628
Packaging: Sold Individually
Description:
Martin 8SC35 Sleeve Coupling Flange - Spacer Flange, Size 8, 1.8750 in Bore, Cast Iron
Specifications:
- Bore diameter: 1.8750 in
- Coupling overall length: 6-7/8 in
- Flange diameter: 5.4500 in
- Hub end outside diameter: 3-1/4 in
- Length through bore: 1-5/8 in
- Distance between shafts: 3-1/2 in
- Hub flange type code: SC
- Torque capacity: 4530 in-lbs
- Coupling size code: 8
- Maximum rpm: 4500 RPM
- Bore type: Spacer Flange
- Horsepower @ 100 rpm: 1.8 (TPR) hp, 7.2 (Thermoplastic Elastomer) hp
- Hub type: Spacer Flange
- Series: Quadra-Flex
- hub material: Cast Iron
