MARTIN S816 STEEL SPUR GEAR
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: S816
IMS Product Code: 2150555
Packaging: Sold Individually
Description:

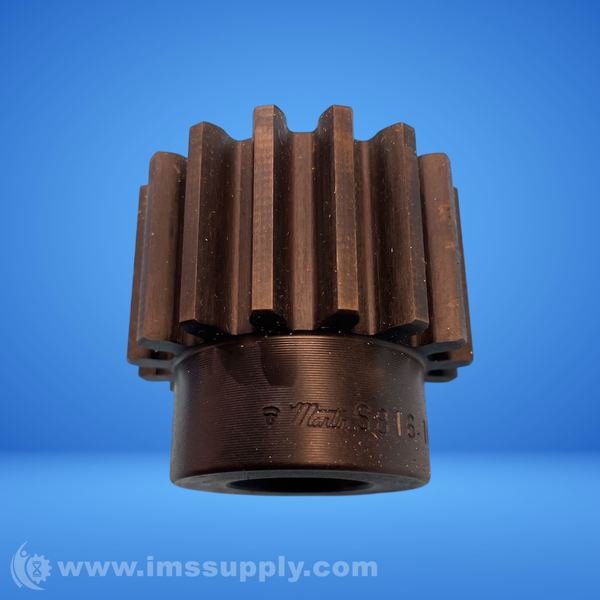

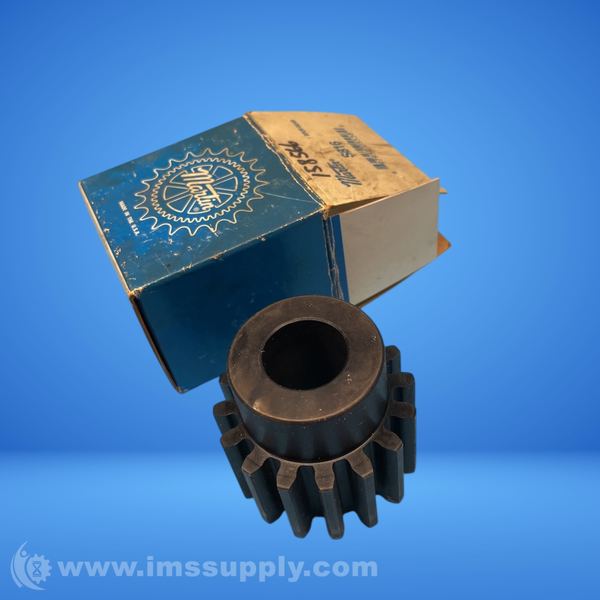

Martin S816 Steel Spur Gear
External Tooth Spur Gear - 8 DP, 14.5 ° PA, 16 Teeth, 1.25 in Face, 7/8 to 15/16 in Bore, Reboreable, Material: Steel
Specifications
- Diametral Pitch: 8
- Pressure Angle: 14.5 degrees
- Face Width: 1.25 in
- Number of Teeth: 16
- Bore Type: Reboreable
- Bore Diameter: 7/8 to 15/16 in
- Outside Diameter: 2.25 in
- Material: Steel
- Hub Type: Type B
- Pitch Diameter: 2 in
- Hub Diameter: 1.625 in
- Gear Construction: Plain
- Overall Width: 2 in
- Hub Projection: 3/4 in
- Standards Met: ANSI Standard B15.1
- Weight: 1.14 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
