MEAN WELL XLG-240-H-AB CONSTANT POWER LED DRIVER
Quick Overview
Manufactured By: MEAN WELL
Manufacturer Part Number: XLG-240-H-AB
IMS Product Code: 2146923
Packaging: Sold Individually
Description:

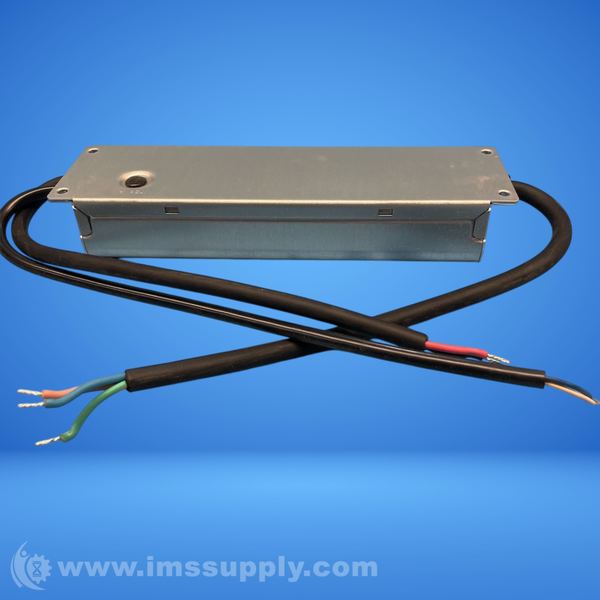

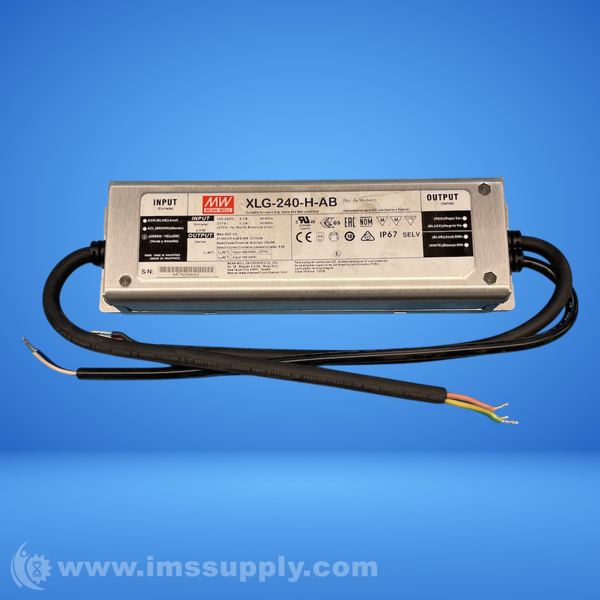

Mean Well XLG-240-H-AB Constant Power LED Driver
Constant power LED driver with adjustable output current and dimming function
Specifications
- Input Voltage: 100~305Vac
- Constant Current Operating Range: 27~56Vdc
- Adjustable Current Range: 4.28~6.66 Amps
- Max Power: 239.6 Watts
- Operating Case Temperature: -40~+90°C
- Safety Approval: UL 8750
- Surge Protection: 4kV (line-line), 6kV (line-earth)
- Protections: short circuit / over voltage / input over voltage / over temperature
- Dimmer: Built-in potentiometer
- DC Voltage: 27 to 56 V
- Rated Current: 4.9 A
- Rated Power: 239.6 W
- Current Adjustment Range: 2.4 A to 6.66 A
- Dimensions: 8.62'L x 2.48'W x 1.40'H
- Output Voltage: 27 VDC to 56 VDC
- Output Current: 4.90 A
- Output Connector Type: Stipped and Tinned
- PFC Function: Yes
- Agency Approvals: UL, CUL, CB, CE, EN, ENEC, EAC, CCC
- Power Rating: 239.6 W
- Input Frequency: 47 Hz to 63 Hz
- Maximum Input Current: 2.7 A
- Efficiency: 91%
- Minimum Isolation Voltage: 3750V
- Minimum Operating Temperature: -40°C
- Maximum Operating Temperature: 90°C
- Manufacturer Series: XLG-240
- Number of Outputs: 1
- Color: Silver
- Product Type: Auto Switching SMPS
- Style: Enclosed
- IP Rating: IP67
- RoHS: Yes
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
