MELTRIC 63-64047 DSN60 RECEPTACLE
Quick Overview
Manufactured By: MELTRIC
Manufacturer Part Number: 63-64047
IMS Product Code: 2127508
Packaging: Sold Individually
Description:

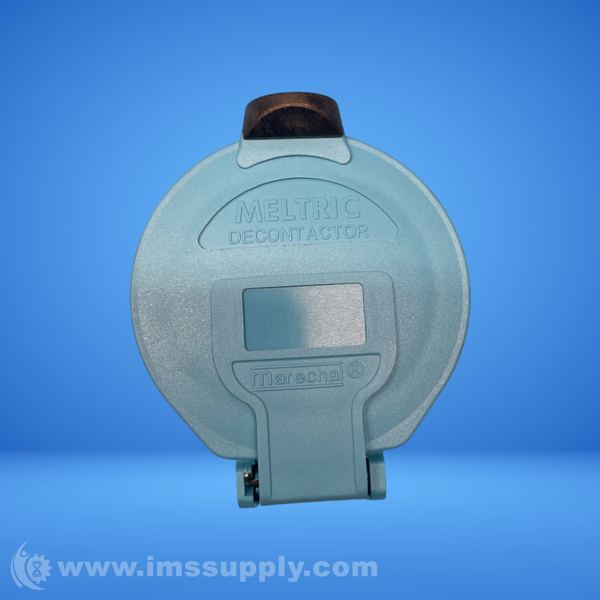

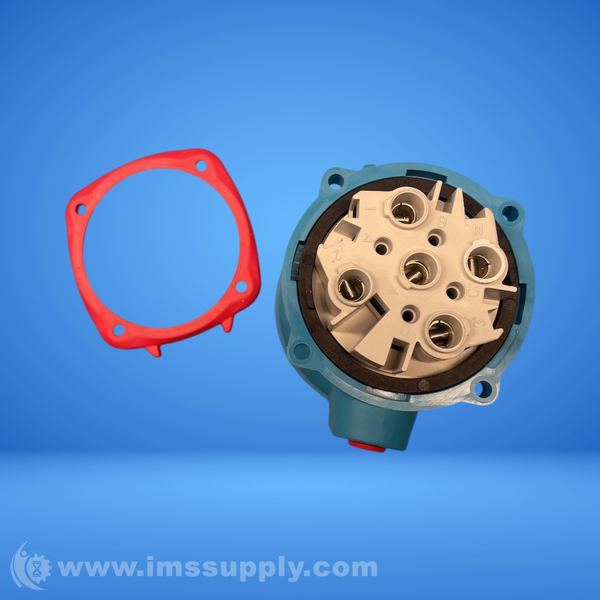

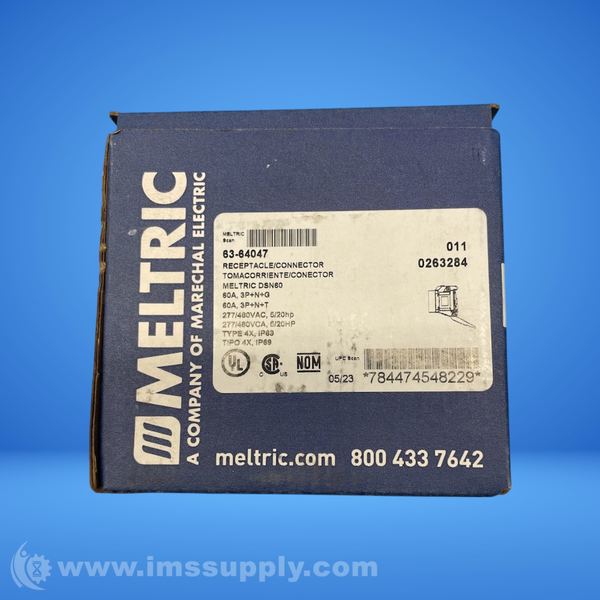

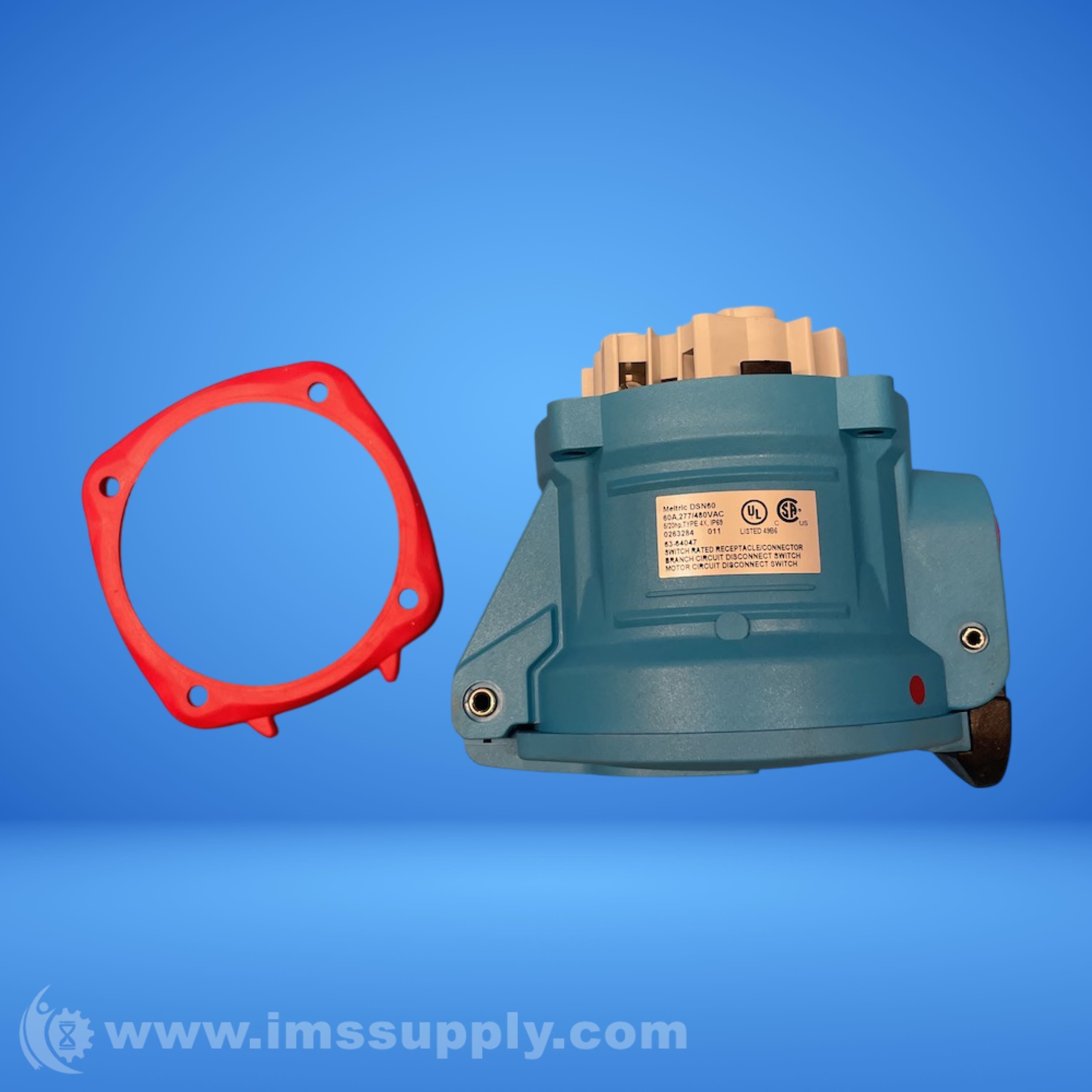

Meltric 63-64047 DSN60 Receptacle
60A, 277/480V, 3P+N+G female receptacle with screw terminals, rated Type 4X, IP66/67. Blue thermoplastic polyester body, -40F to 140F operating temperature.
Specifications
- Rated Current: 60 A
- Rated Voltage: 277/480 VAC
- Contact Configuration: 3P+N+G
- Horsepower Rating: 5 hp/20 hp
- Environmental Rating: Type 4X, IP66/67, IP69
- Short Circuit Rating: 100 kA - Close & Withstand
- Material: Poly
- Minimum Operating Temperature: -40F, -40C
- Maximum Operating Temperature: 140F, 60C
- Wiring Capacity: 14 AWG - 4 AWG
- Terminal Type: Screw
- Overall Dimensions: 3.27" Width x 4.3" Height x 3.64" Depth
- Weight: 3 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
Ships today if ordered in the next 3 hours and 33 minutes.
