MOGAMI VW-1SC MICROPHONE CABLE
Quick Overview
Brand: MOGAMI
Part Number: VW-1SC
IMS Product Code: 2157404
Packaging: Sold Individually
Description:

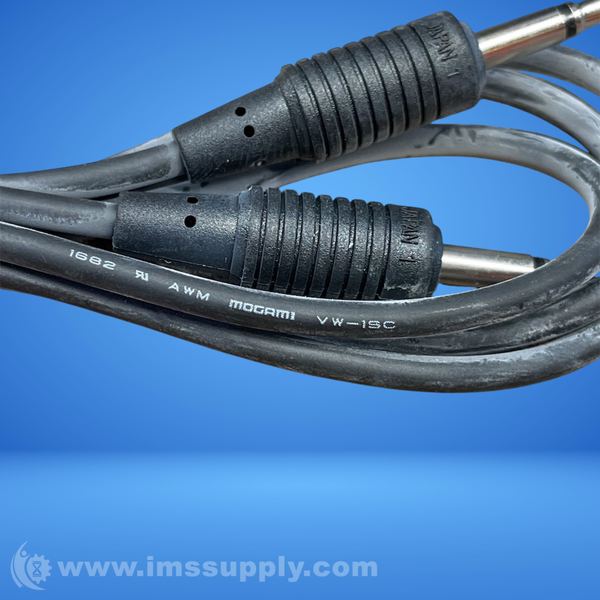

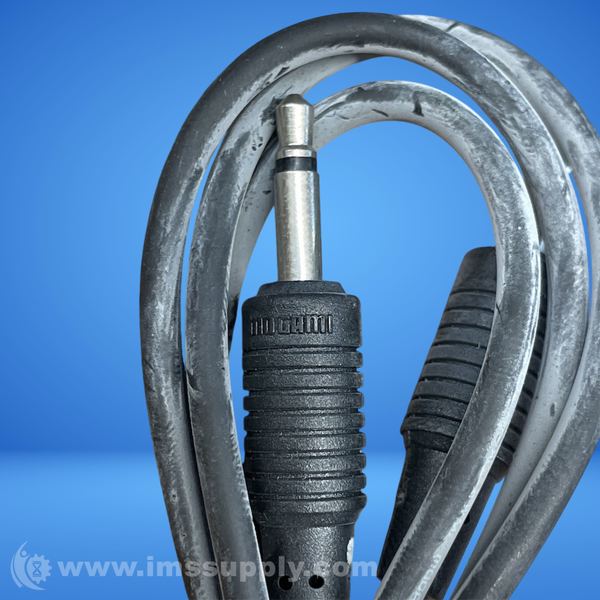

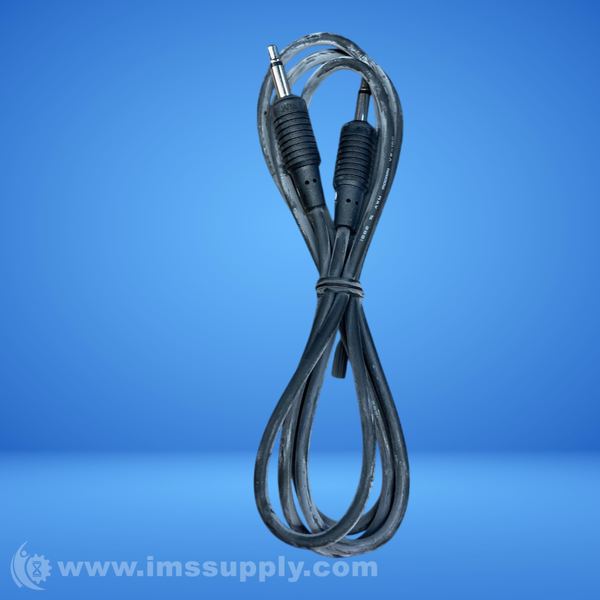

Mogami VW-1SC Microphone Cable
Microphone cable with PVC insulation and flexible PVC jacket, available in various configurations and lengths.
Specifications
- Cable Type: Microphone Cable
- Material: PVC
- Color: Gray
- Conductor Details: 17/0.16TA (17 � #34AWG), 7/0.16TA (7 � #34AWG)
- Size: 0.34mm� (#22AWG), 0.14mm� (#26AWG)
- Insulation Ov. Dia.: 1.4� (0.055"), 1.0� (0.0394")
- Jacket Ov. Dia.: 6.0� (0.236"), 7.6� (0.2996"), 9.2� (0.362"), 9.3� (0.366")
- DC Resistance at 20�C: 0.06O/m (0.018O/Ft), 0.14O/m (0.043O/Ft)
- Voltage Breakdown: Must withstand at DC 500V/15sec.
- Insulation Resistance: 10000 MO � m Min. at DC 500V, 20�C
- Applicable Temperature: -20�C +70�C(-4�F +158�F)
- Standard: UL Subject 758 AWM 2626 VW-1SC 30V 80�C
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, October 26, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
