MORSE 133Q56L10 WORM GEAR REDUCER
Quick Overview
Manufactured By: MORSE
Manufacturer Part Number: 133Q56L10
IMS Product Code: 2153121
Packaging: Sold Individually
Description:

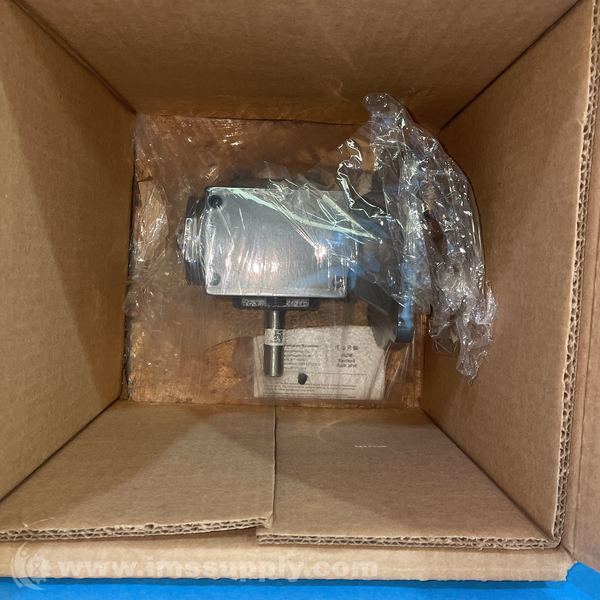

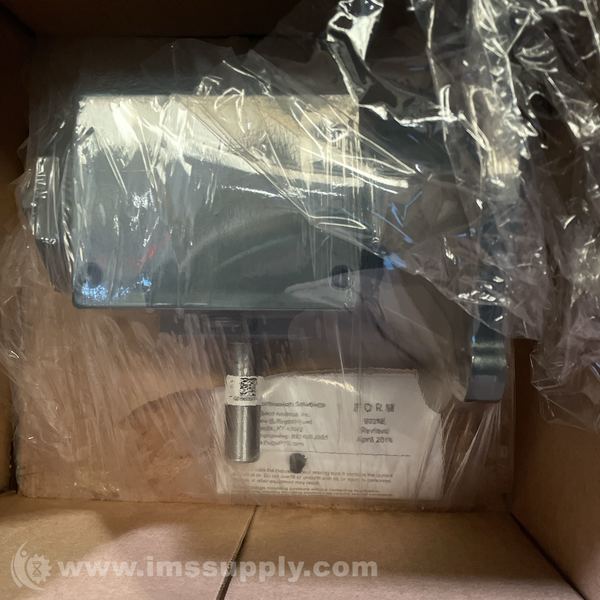

Morse 133Q56L10 Worm Gear Reducer
Single Reduction Standard Worm Gear Reducer, 10:1 Gear Ratio, C-Face Quilled Input, Left Output, Cast Iron
Specifications
- assembly: Q-L
- center distance (in): 1.33
- center distance range: 1" thru 3.25"
- centerline distance: 1.3330
- efficiency: 80
- frame size: 56C
- gear ratio: 10:1
- gear type: Worm
- h-tap size: 5/16 - 18
- housing material: Cast Iron
- input bore (c face): 0.625
- input diameter (in): 0.625
- input hp @ 1750 rpm: 0.77
- input keyway (c face): 3/16 X 3/32
- input rpm: 1750
- input speed: 1750
- input style: C-Face Quill
- model: 133Q
- mounting type: No Base
- no. of gear reductions: Single
- output diameter (in): 0.625
- output key: 3/16 X 1.31
- output rpm: 175
- output shaft assembly code: L
- output shaft direction: Left
- output torque range: 250 to 500 in lbs
- output torque rating (in-lb): 263 in-lbs @1750 input RPM
- output type: Solid Shaft
- overhung load rating (output shaft(lb)): 458
- ratio range: 10:1
- reducer: Worm - Right Angle
- reducer style: Standard
- series code: Raider
- service factor: 1
- shaft seal material: Nitrile
- tap depth: 0.5
- thrust rating - output shaft: 1001
- center-to-center shaft distance: 1.3300in
- speed ratio: 10:1
- maximum input horsepower: 3/4
- maximum input speed: 1750.0
- minimum torque (in/lb): 79.0
- maximum torque (in/lb.): 214.0
- bore diameter (decimal inch): 0.6250
- shaft diameter (decimal inch): 0.6250
- gear material: Bronze
- overall length (decimal inch): 3.8000
- standards: NEMA
- minimum input horsepower: 0.25
- output rpm at 1750 input: 175.0
- height (decimal inch): 4.6600
- length (decimal inch - 4 decimals): 4.0000
- width (decimal inch - 4 decimals): 2.8800
- input type: C-Face Quilled
- output type: Left Output
- maximum output speed: 175 rpm
- input maximum speed: 1750 rpm
- input/output torque rating: 29.64 in-lb/175 in-lb
- centre distance: 1.33 in
- input keyway: 1/8 x 1 in
- lubrication: Polyglycol Oil
- mounting type: Direct/Floor Mount
- material: Cast Iron
- dimensions: 6.07 in L x 5.84 in W x 4.66 in H
- type: Single Reduction Standard
- horsepower: 1 hp
- input size: 5/8 in Dia
- output size: 5/8 in Dia x 2.16 in L
- torque rating: 29.64 in-lb Input/175 in-lb Output
- keyway size: 1/8 x 1 in Input
- lubrication type: Polyglycol Oil
- nominal ratio: 10:1
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
