MORSE 300Q56H60 203 WORM REDUCER
Quick Overview
Manufactured By: MORSE
Manufacturer Part Number: 300Q56H60 203
IMS Product Code: 2147596
Packaging: Sold Individually
Description:

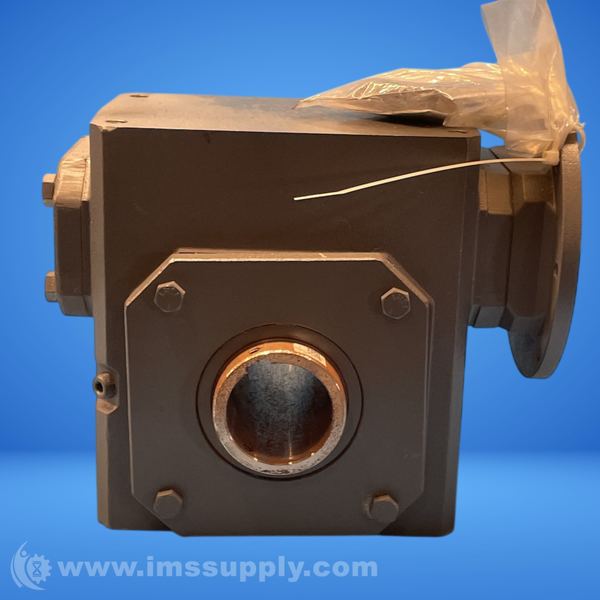

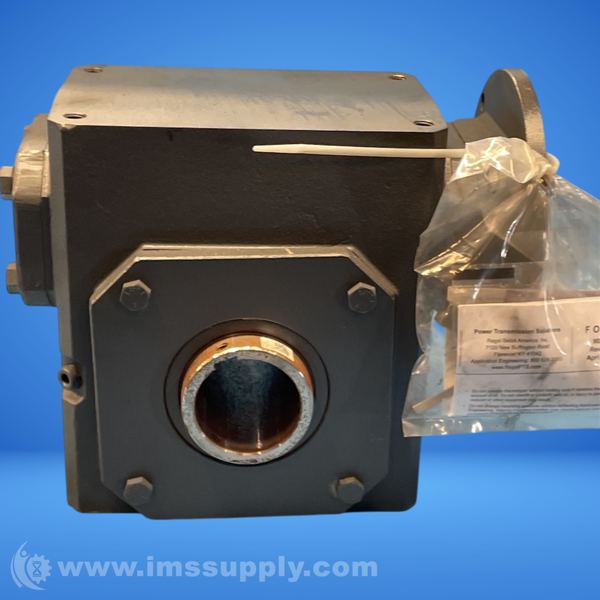

Morse 300Q56H60 203 Worm Reducer
60:1 Ratio, C-Face Quill Input, Hollow Bore Output, Cast Iron Single-Reduction Worm Reducer
Specifications
- Reducer Style: Standard
- Center Distance (In): 3.00
- Input Shaft Style: (Q) C Face Quilled
- Motor Frame Size: 56C
- Output Shaft Style: (H) Hollow Output
- Ratio: 60:1
- Housing Material: Cast Iron
- Gear Drive Reductions: Single
- Nominal Output RPM @1750: 29.1
- Mechanical Input HP Rating @ 1750: 1.18
- Mechanical Output Torque Rating @ 1750 Input: 1,794
- Thermal Input HP Rating @ 1750 Input: 0.91
- Thermal Output Torque Rating @ 1750 Input: 1,391
- Max OHL (Output Shaft): 987
- Max Thrust Load (Output Shaft): 3410
- Shaft Seal Material: Nitrile
- Weight: 73.500 lb
