MRC BEARING 7204 ANGULAR CONTACT BEARING
Quick Overview
Manufactured By: MRC BEARING
Manufacturer Part Number: 7204
IMS Product Code: 1945633
Packaging: Sold Individually
Description:

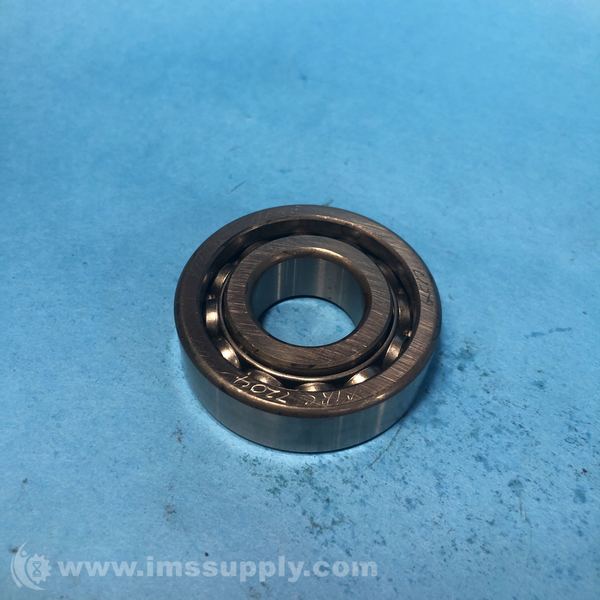

Mrc Bearing 7204 Angular Contact Bearing
Angular Contact Bearing - 20 mm Bore, 47 mm OD, 14 mm Width, Open, 29 degrees Contact Angle
Specifications
- Bore Type: Straight
- Bore Diameter: 20 mm
- Outside Diameter: 47 mm
- Overall Width: 14 mm
- Row Type: Single-Row Non-Fill Slot
- Closure Type: Open
- Snap Ring Included: Without Snap Ring
- Bearing Type: Angular Contact Bearings
- Contact Angle: 29 degrees
- Bearing Material: Steel
- Internal Clearance: C0
- Radial Dynamic Load Capacity: 2860 lbf
- Radial Static Load Capacity: 1620 lbf
- Max Rpm: 19000 rpm
- Finish Coating: Uncoated
- Precision Rating: Not Rated
- Fillet Radius: 1 mm
- Series: 7200
- Weight: 0.26 lbs
- Bearings Type: ACBB
- Fillet Radius ra: 1.00 mm
- Fillet Radius rb: 0.60 mm
- Grease Speed Rating n1: 15000 rpm
- Oil Speed Rating n2: 19000 rpm
- Basic Dynamic Radial Load Rating C: 12700 N
- Basic Static Radial Load Rating Co: 7200 N
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 47 minutes.
