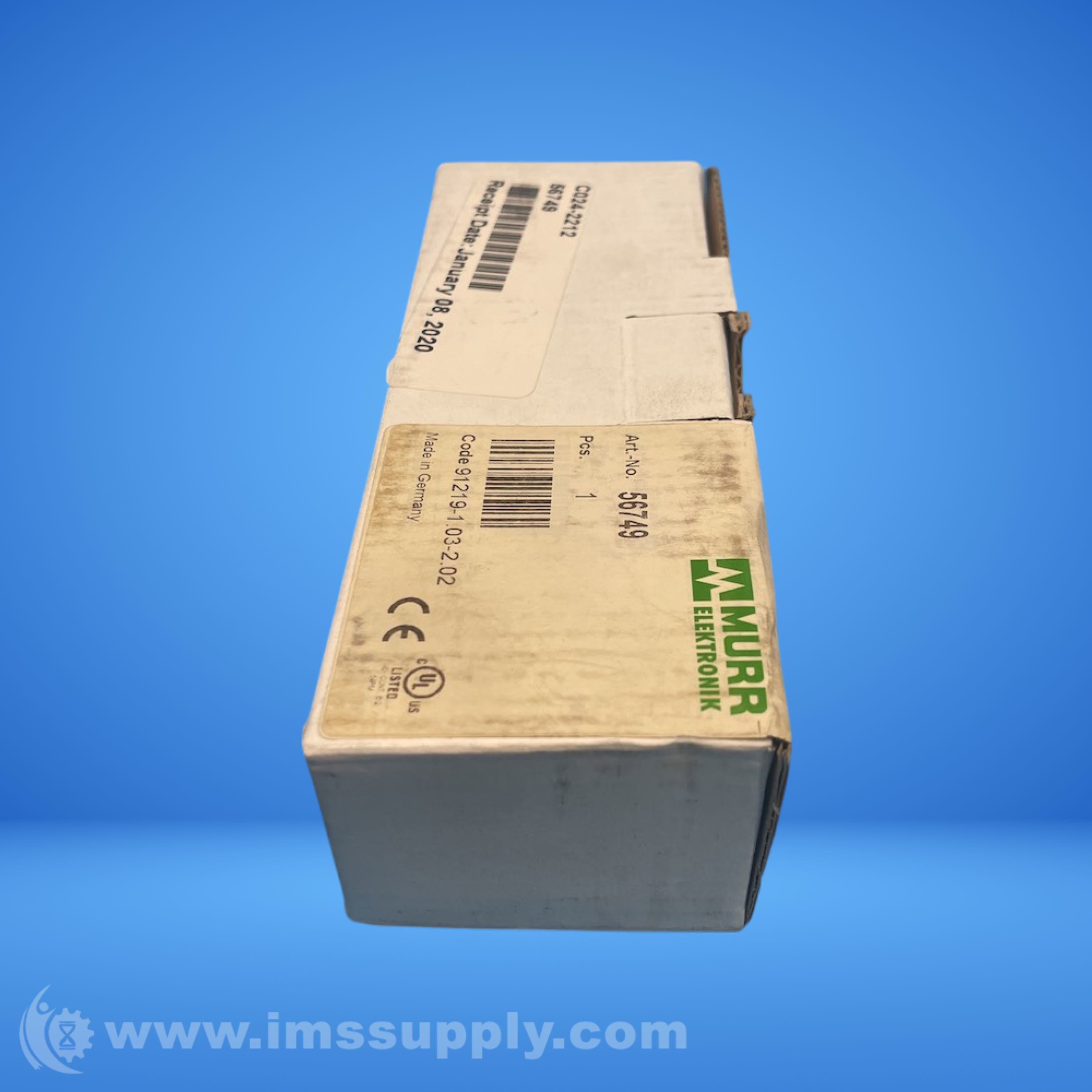

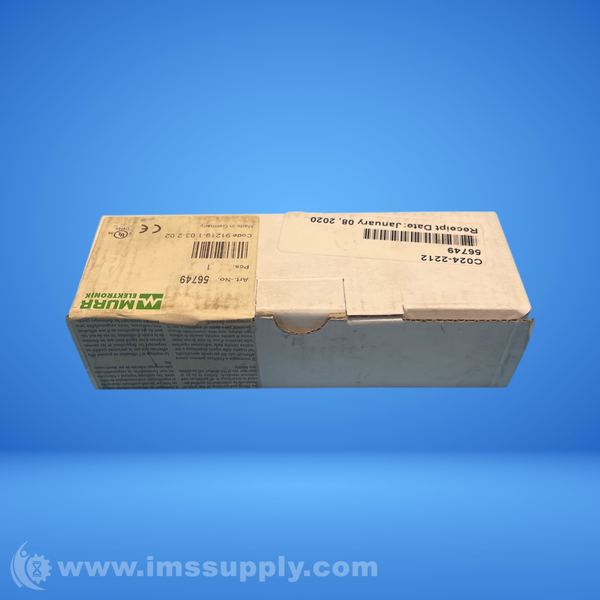

MURR ELEKTRONIK 56749 CUBE67 I/O EXTENSION MODULE
Quick Overview
Manufactured By: MURR ELEKTRONIK
Manufacturer Part Number: 56749
IMS Product Code: 2132133
Packaging: Sold Individually
Description:
Murr Elektronik 56749 Cube67 I/O Extension Module
Cube67 I/O extension module with 4 analog inputs (thermocouple), M12 connection, IP67 protection
Specifications
- Sensor type: K, N, J, E, R
- Resolution (analog): 15 Bit sign
- Conversion time (analog): approx. 65 ms per channel
- Accuracy: max. +/-0.5% (of range limit)
- Connection: 2-wire technology
- Cold junction compensation: inside M12 connector
- Current consumption: max. 50 mA
- LED display: US: sensor supply and internal supply voltage (green: OK); UA: actuator supply (green: OK)
- Fieldbus: via internal system connection
- Sensor-system/actuator supply: via internal system connection (max. 2x4 A)
- I/O ports: M12 (female) 5-pole, A-coded
- Protection: IP67
- Mounting method: 2-hole screw mounting
- Temperature range: 0 - 55 degrees Celcius (storage temperature -20 - 75 degrees Celcius)
- Dimensions H x W x D: 150x30x34.5 mm
- Weight: 150 g
- Material: Plastic
- Series: Cube67
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
