MURR ELEKTRONIK 7000-18081-2160500 IO-LINK DEVICE CABLE
Quick Overview
Manufactured By: MURR ELEKTRONIK
Manufacturer Part Number: 7000-18081-2160500
IMS Product Code: 2149763
Packaging: Sold Individually
Description:
Murr Elektronik 7000-18081-2160500 IO-Link Device Cable

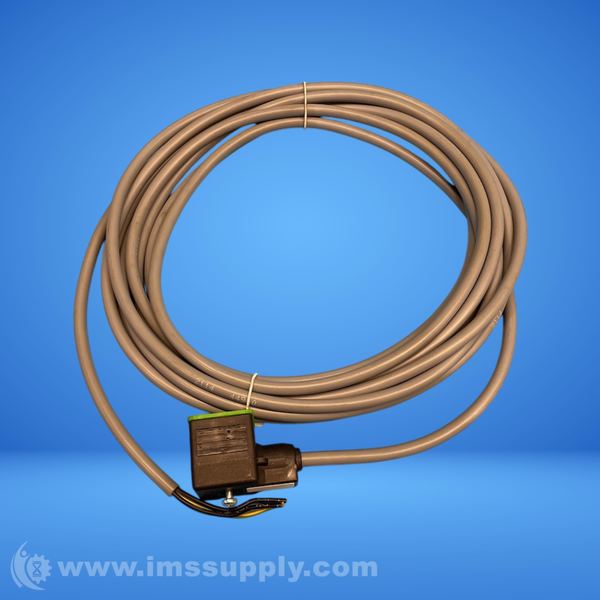

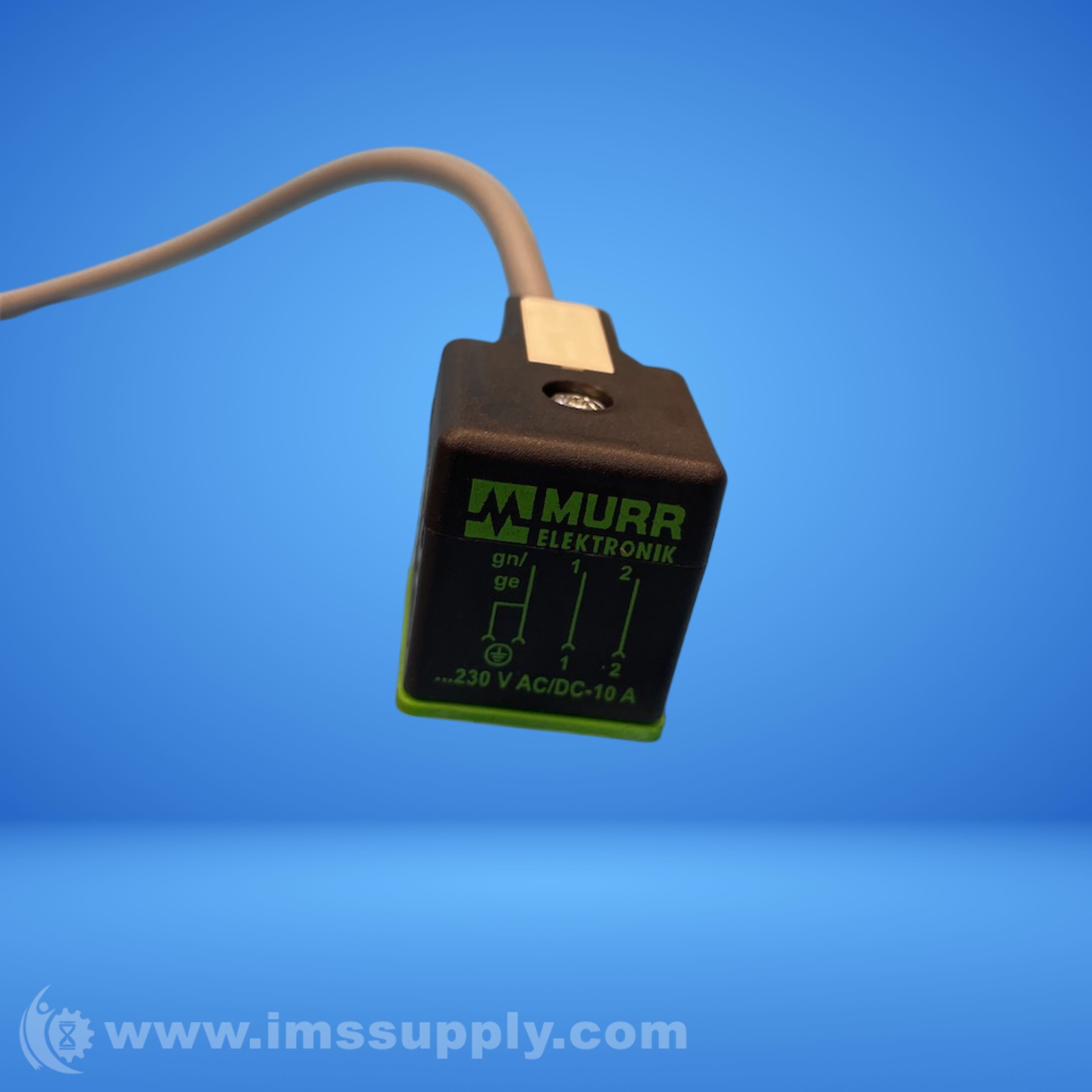

Pre-assembled mating cable/cordset with 3-pin MSUD vlv. plug Form-A (18mm) connector and bare end flying leads. 5m length, gray PVC jacket, IP67 protection.
Specifications
- Operating Voltage: 24 V DC
- Current Consumption: max. 100 mA
- Communication Protocol: IO-Link
- Connection Type: M12 connector
- Housing Material: Polyamide
- Protection Class: IP67
- Ambient Temperature: -40...+85 degrees C
- Rated Voltage (AC): 230Vac max.
- Rated Voltage (DC): 230Vdc max.
- Cross-section: 3 x 0.75mm2, 3 x #18AWG
- Length: 5m, 16ft

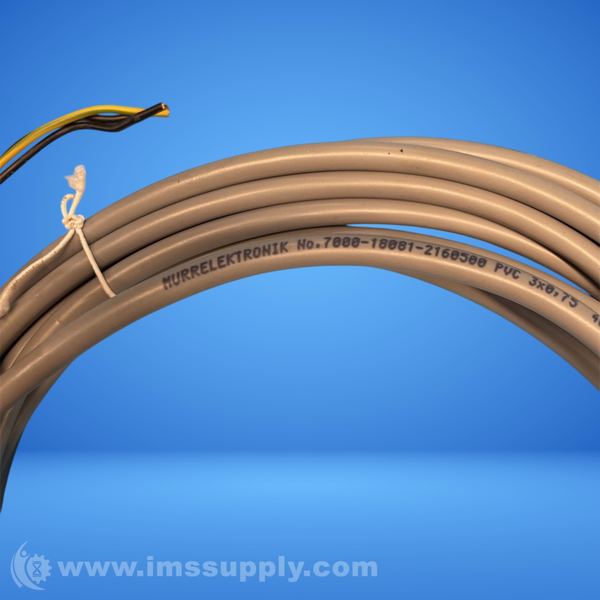

- Material: Polyvinyl Chloride (PVC) jacket, Copper (Cu) wire, Polybutylene Terephthalate (PBT) MSUD connector
