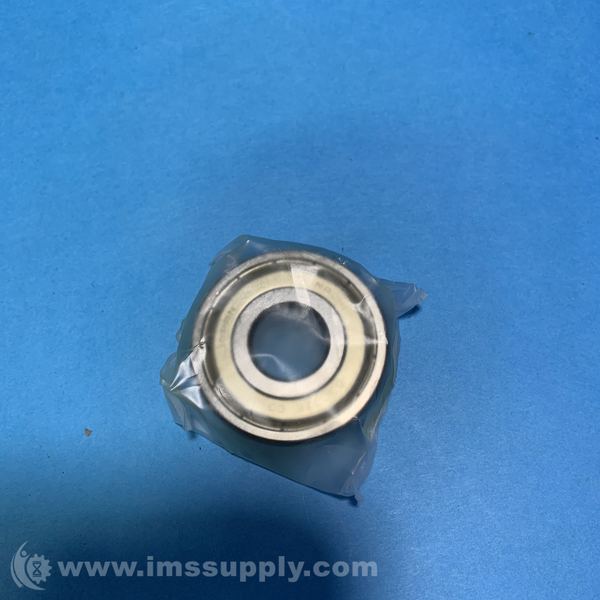

NACHI 6302ZZEC3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NACHI
Manufacturer Part Number: 6302ZZEC3
IMS Product Code: 1899184
Packaging: Sold Individually
Description:
Nachi 6302ZZEC3 Deep Groove Ball Bearing
Single row deep groove ball bearing with double shields, steel cage, and C3 clearance.
Specifications
- Bearing Material: Steel
- Bore Type: Cylindrical
- Cage Material: JIS SPCC Steel
- Closure Type: Double Shield
- Contact Angle (Deg): N/A
- Dynamic Load Capacity (N): 11400
- Grease Fill: Chevron SRI#2
- Inner Diameter (mm): 15
- Inner Ring Material: JIS SUJ2 Steel
- Internal Clearance: C3
- ISO Precision Class: P0
- Limiting Speed - Grease (RPM): 17000
- Limiting Speed - Oil (RPM): N/A
- Max Operating Temp.: 120 degrees C (248 degrees F)
- Number of Rows: 1
- Outer Diameter (mm): 42
- Outer Ring Material: JIS SUJ2 Steel
- Preload: N/A
- Rolling Element Material: JIS SUJ2 Steel
- Seals or Shields: 2 Shields
- Series: 6300
- Snap Ring: No
- Static Load Capacity (N): 5400
- Universally (Flush) Ground: N/A
- Width (mm): 13
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 16 minutes.
