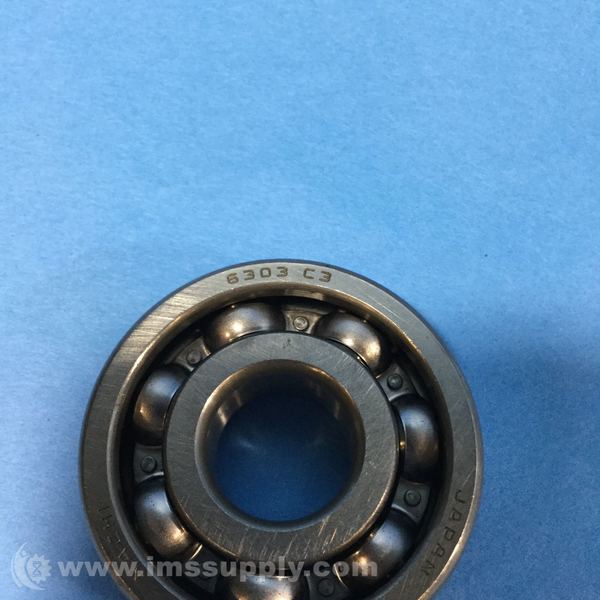

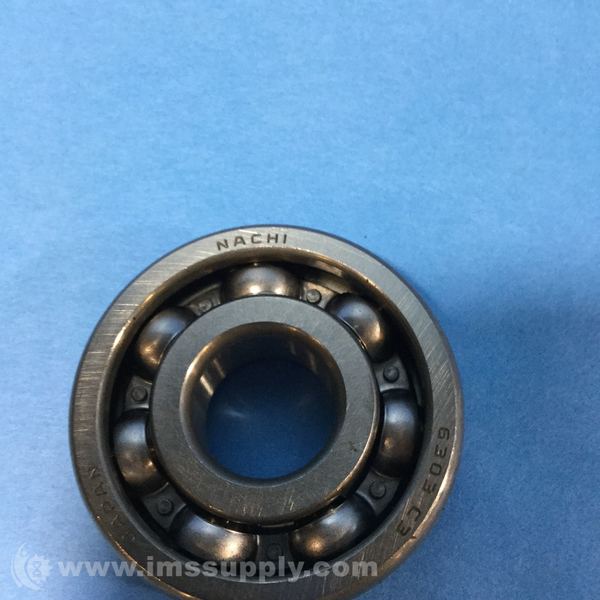

NACHI 6303C3 DEEP GROOVE BALL BEARING
Starting At: $8.05
Quick Overview
Manufactured By: NACHI
Manufacturer Part Number: 6303C3
IMS Product Code: 1804013
Packaging: Sold Individually
Description:
Nachi 6303C3 Deep Groove Ball Bearing
Specifications:
- Enclosure: Open
- Bore Type: Cylindrical Bore
- Configuration: Single Row
- Bore Size: 17 mm
- Outside Diameter: 47 mm
- Width: 14 mm
- Fillet Radius/Chamfer: 1 mm
- Dynamic Load Rating: 13,600 N
- Static Load Rating: 6,550 N
- Limiting Speed - Grease: 16,000 rpm
- Limiting Speed - Oil: 19,000 rpm
- Factor fo: 12.3
- Radial Clearance: 0.011 to 0.025 mm
