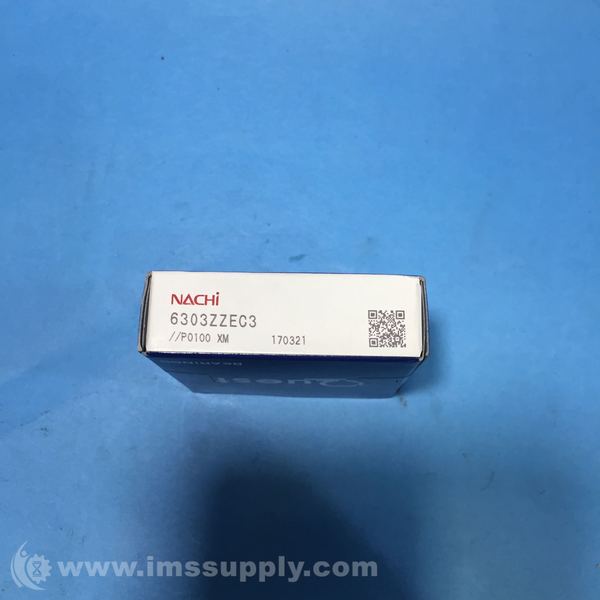

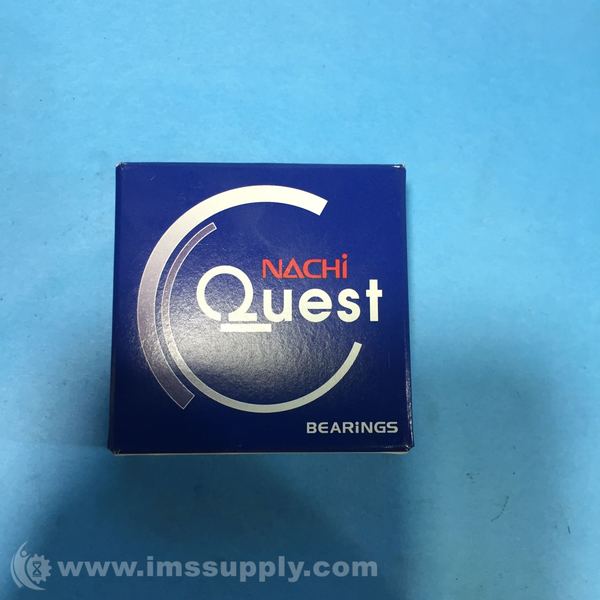

NACHI 6303ZZEC3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NACHI
Manufacturer Part Number: 6303ZZEC3
IMS Product Code: 1866711
Packaging: Sold Individually
Description:
Nachi 6303ZZEC3 Deep Groove Ball Bearing
Single row deep groove ball bearing with double shields, steel cage, and C3 clearance.
Specifications
- Bearing Material: Steel
- Bore Type: Cylindrical
- Cage Material: JIS SPCC Steel
- Closure Type: Double Shield
- Contact Angle: N/A
- Dynamic Load Capacity: 13600 N
- Grease Fill: Chevron SRI#2
- Inner Diameter: 17 mm
- Inner Ring Material: JIS SUJ2 Steel
- Internal Clearance: C3
- ISO Precision Class: P0
- Limiting Speed - Grease: 16000 RPM
- Limiting Speed - Oil: N/A
- Max Operating Temp.: 120 degrees C
- Number of Rows: 1
- Outer Diameter: 47 mm
- Outer Ring Material: JIS SUJ2 Steel
- Preload: N/A
- Rolling Element Material: JIS SUJ2 Steel
- Seals or Shields: 2 Shields
- Series: 6300
- Snap Ring: No
- Static Load Capacity: 6550 N
- Universally Ground: N/A
- Width: 14 mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 16 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 16 minutes.
