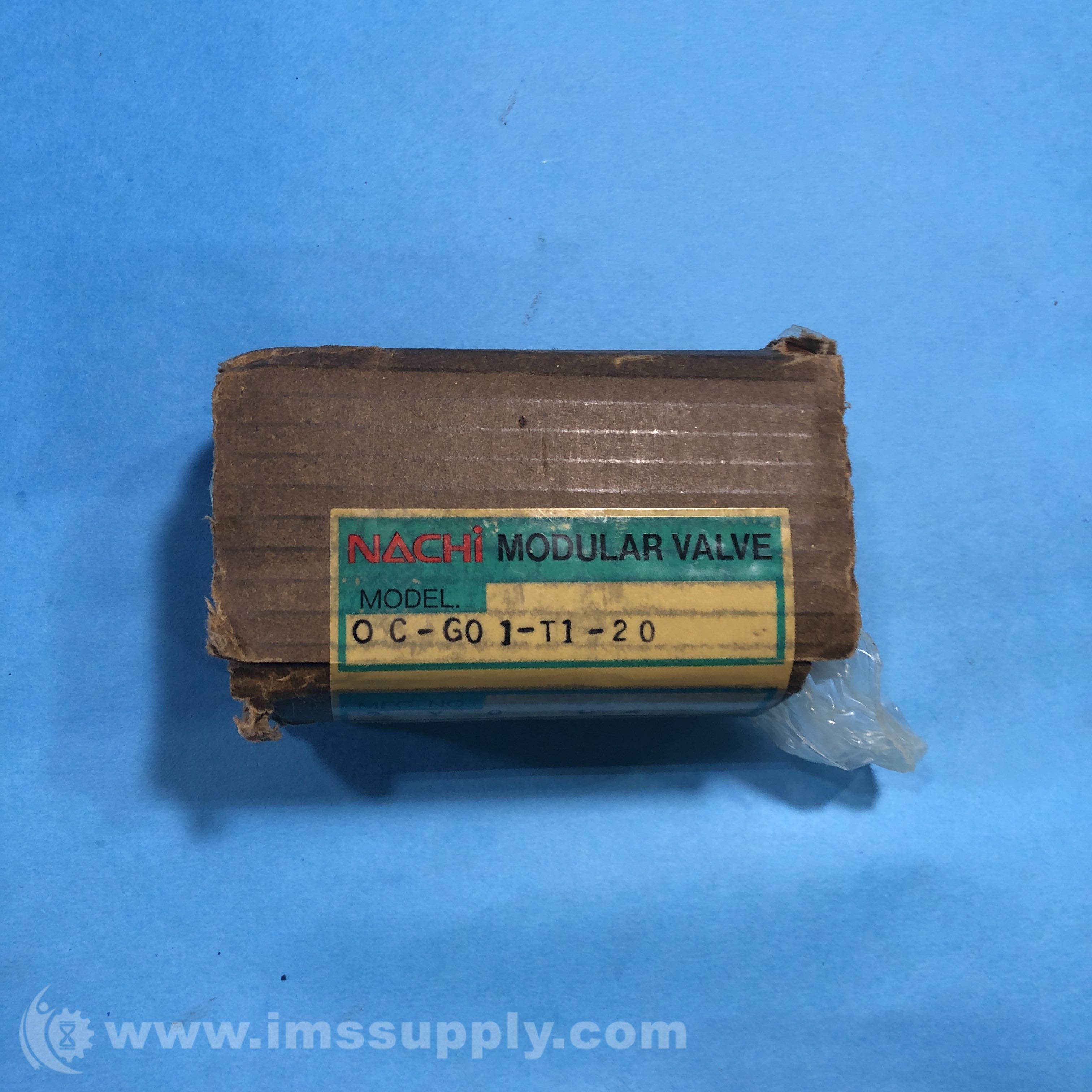

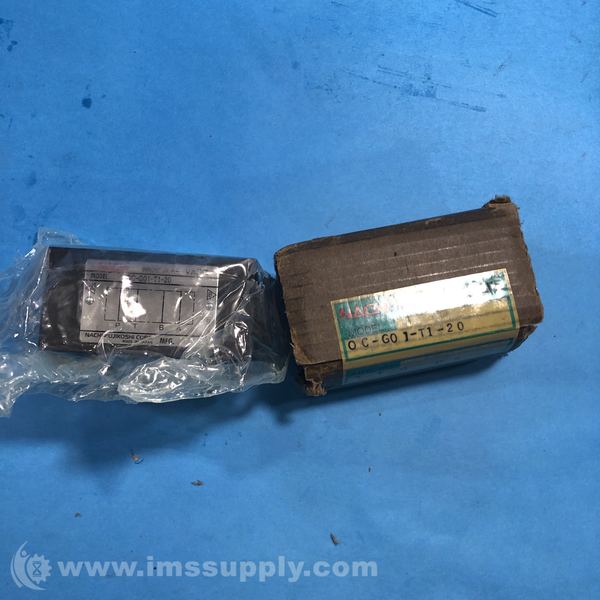

NACHI OC-G01-T1-20 MODULAR CHECK VALVE
Quick Overview
Manufactured By: NACHI
Manufacturer Part Number: OC-G01-T1-20
IMS Product Code: 1912689
Packaging: Sold Individually
Description:
Nachi OC-G01-T1-20 Modular Check Valve
Nachi Modular Check Valve, OC-G01. Prevents reverse-flow.
Specifications
- Valve Type: Modular (Stacking) Valve
- Valve Interface: D03 (NG6)
- Flow Rating: 13.2 GPM
- Pressure Rating: 3625psi
- Cracking Pressure: 5.8psi
- Check Valve Type: Direct-Operated
- Check Valve Position: Check Valve in Line T
- Mounting Face: D03 (NG6)
- Body Material: Carbon Steel
- Nominal Diameter (Size): 1/8
- Maximum Flow Rate l/min: 50
- Maximum Working Pressure MPa{kgf/cm2 }: 25 {255}
- Weight: 2.2 lbs
- Dimensions: 12 × 12 × 12 in
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
