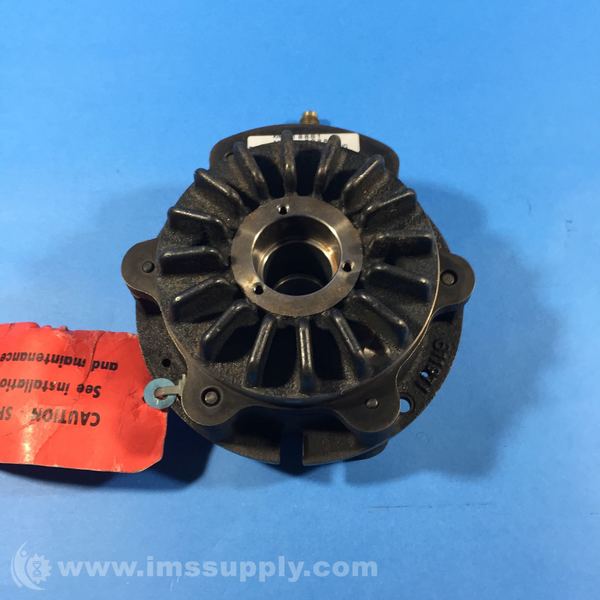

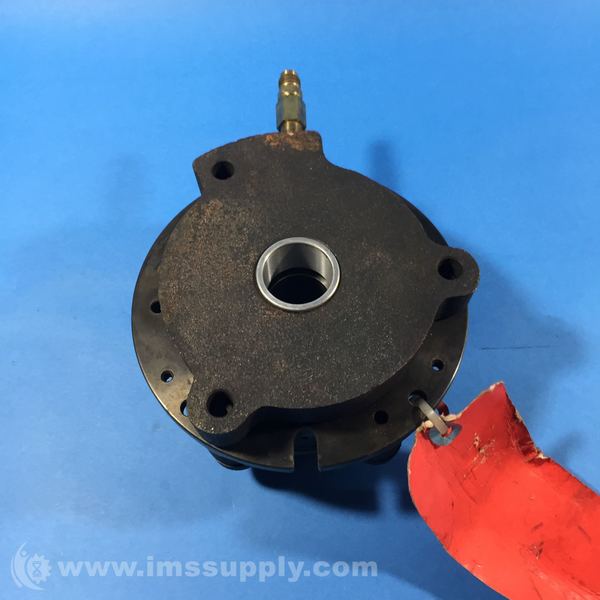

NEXEN GROUP 818861 SHAFT MOUNTED FRICTION BRAKE
Quick Overview
Manufactured By: NEXEN GROUP
Manufacturer Part Number: 818861
IMS Product Code: 1802361
Packaging: Sold Individually
Description:

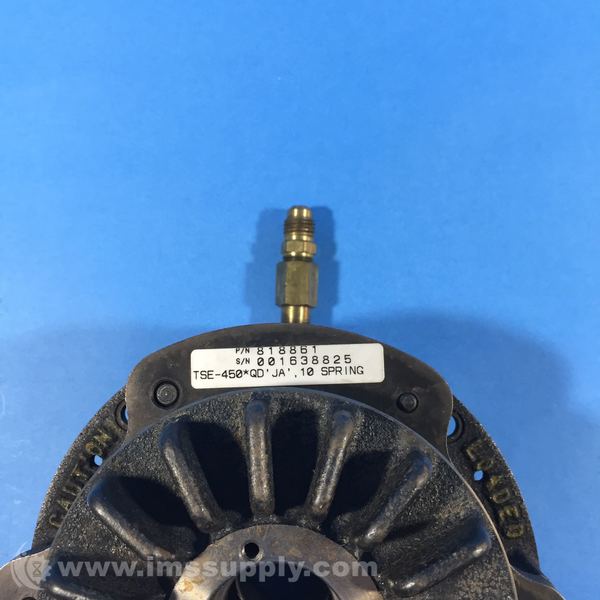

Nexen Group 818861 Shaft Mounted Friction Brake, TSE-450*QDJA10 SPRING
Specifications:
- Open Or Enclosed Design: Open
- Bore Size: 0.500 - 1.000 in.
- Bore Style: QD Type JA
- Length: 3.75 in.
- Brake Facing Type: High Coefficient
- Brake Facing Edge Color Code: Purple
- Maximum Static Brake Torque: 450 inlbs
- Maximum Brake Continuous Thermal Dissipation: 0.52 hp
- Brake Heat Sink Capacity: 30000 ftlb
- Brake Peak Thermal Input Rate: 11.00 hp
- Shaft Inertia: 4.74 lbin²
- Max Rpm: 1800
- Actuation/Return: Spring/Air
- Port Size: 0.125 NPT
- Maximum Pressure: 95 psi
- Minimum Release Pressure: 90 psi
- Temperature Range: 32 - 150 °F
- Approximate Brake Facing Life: 115 hphr
- Brake Air Chamber Volume When New: 2.100 in³
- Brake Air Chamber Volume When Worn Out: 0.900 in³
- Ratings: "CE, And RoHS"
- Finish: Black Oxide
- Outer Diameter: 5.94 in.
