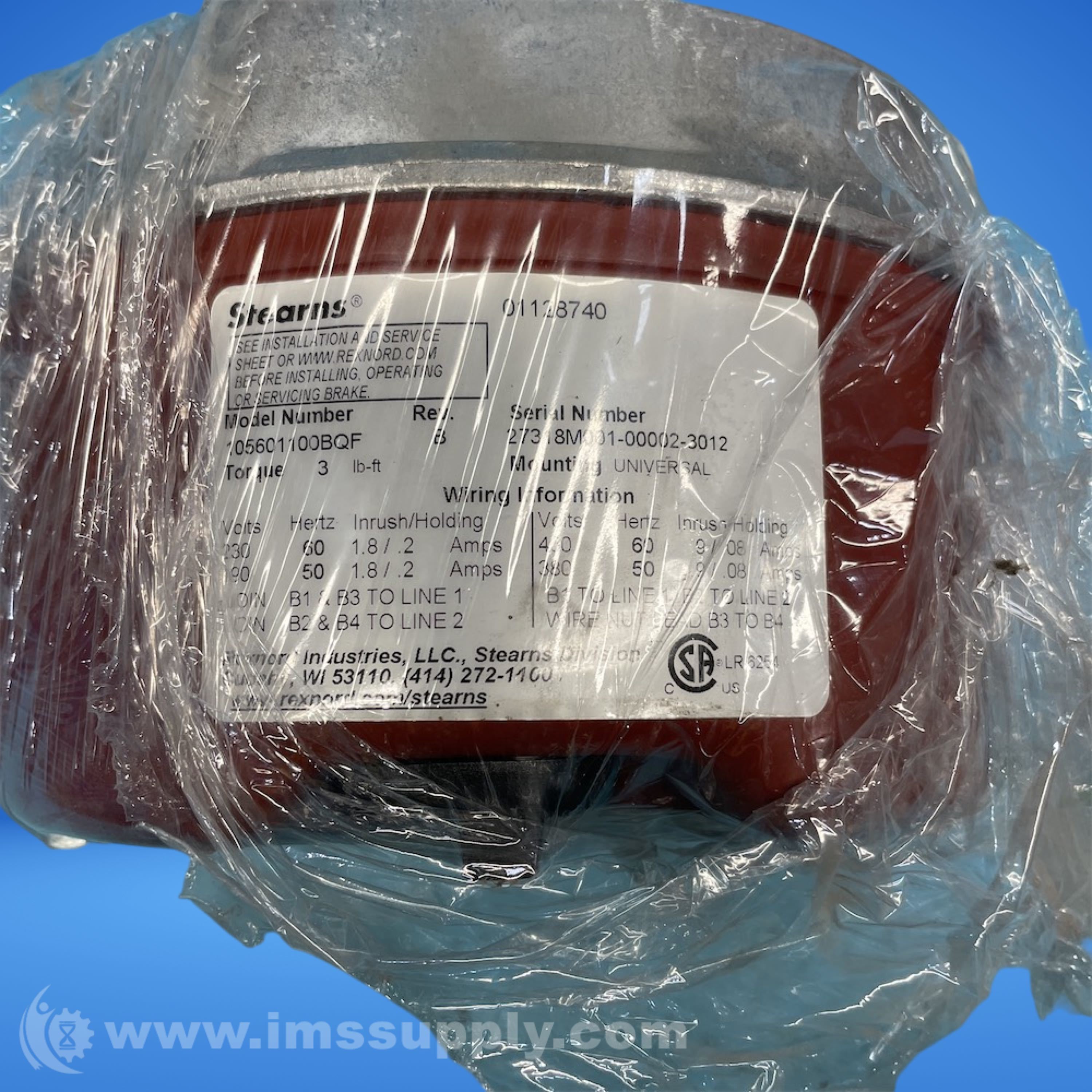

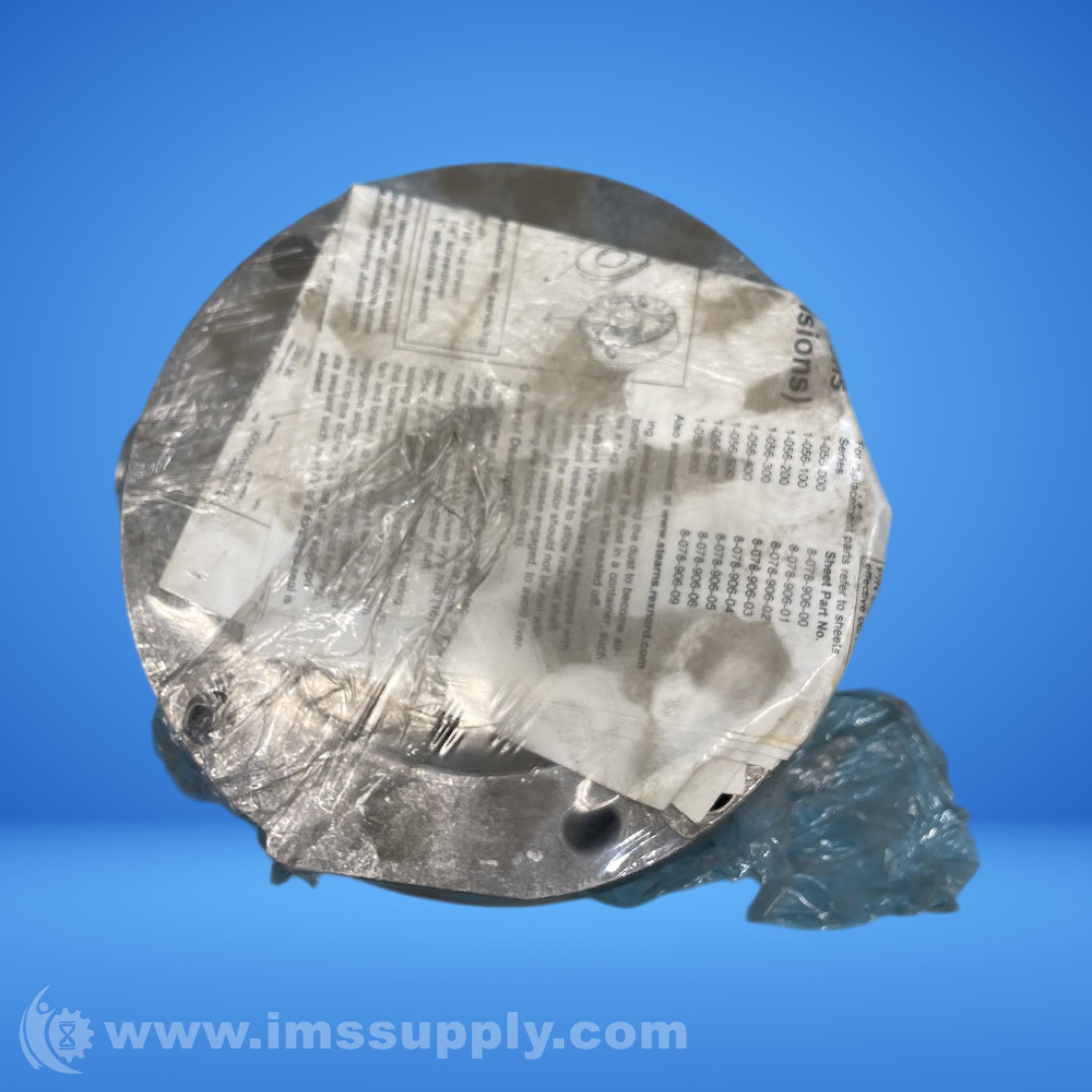

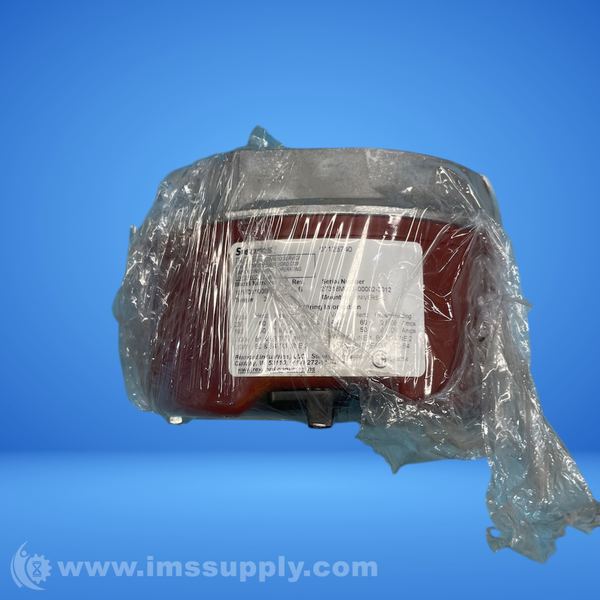

STEARNS 105601100BQF BRAKE ASSEMBLY
Quick Overview
Manufactured By: STEARNS
Manufacturer Part Number: 105601100BQF
IMS Product Code: 1472949
Packaging: Sold Individually
Description:
Stearns 105601100BQF Brake Assembly
Spring actuated magnetic brake with 5/8" bore diameter and 3 ft-lbs static torque
Specifications
- Brake Type: Spring Actuated
- Nominal Static Torque: 3 ft-lbs
- Voltage Rating: 208-230 V ac, 460 V ac
- Bore Diameter: 5/8 in
- Brake Outside Diameter: 166.12 mm
- Overall Length: 103.1 mm
- Number Of Friction Discs: 1
- Housing Material: Aluminum
- Mounting Type: C-Face
- Standards Met: CSA, UL
- Product Series: 56000
- Type: Solenoid Actuated Brakes
- Function: Holding
- Static Torque: 3 ft-lbs, 36 in-lbs, 4.1 Nm
- Protection Rating: IP23
- Maximum Speed: 5000 RPM
- Enclosure: IP23
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
