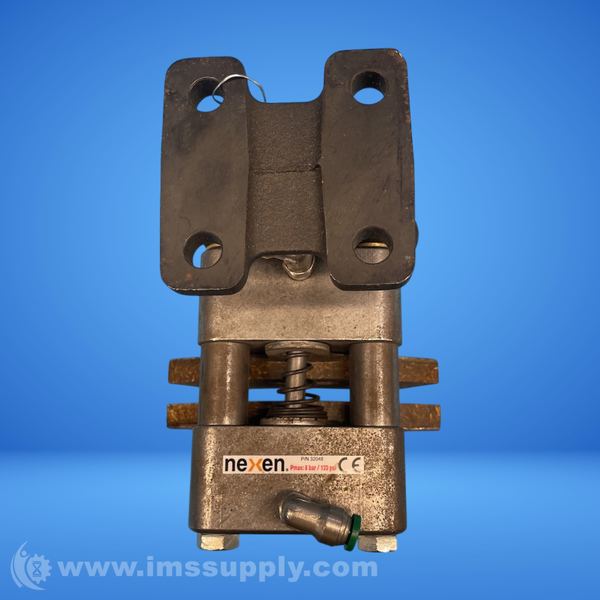

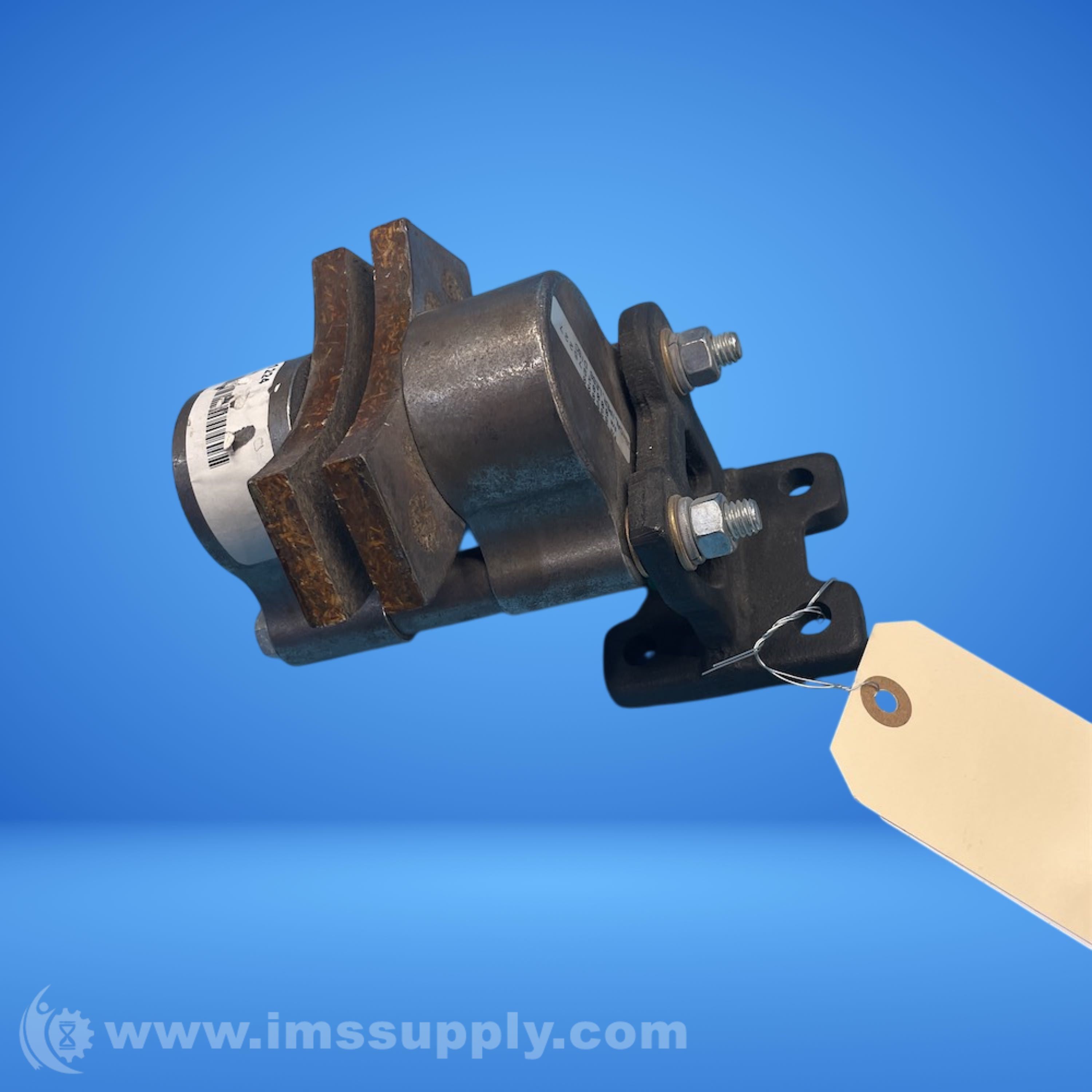

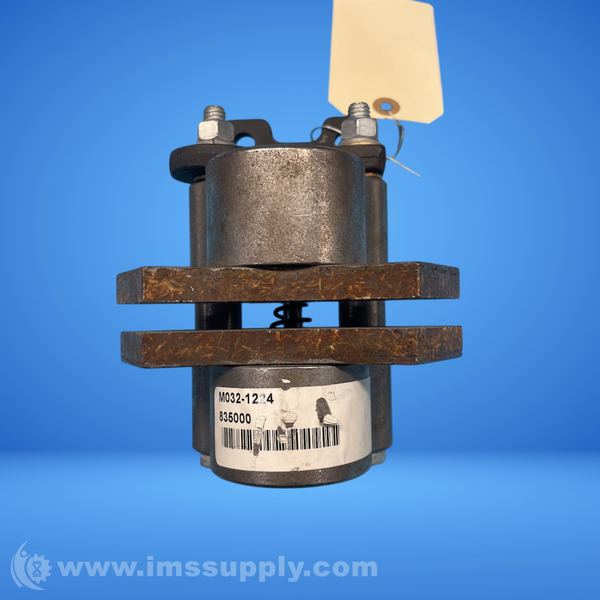

NEXEN 835000 DB SERIES AIR ENGAGED CALIPER BRAKE
Quick Overview
Manufactured By: NEXEN GROUP
Manufacturer Part Number: 835000
IMS Product Code: 2131096
Packaging: Sold Individually
Description:
Nexen 835000 DB Series Air Engaged Caliper Brake
Air/Spring Engaged Caliper Brake with Standard Coefficient Brake Facing, Foot Mounted Configuration
Specifications
- Brake Series: DB Caliper
- Engagement/Release: Air/Spring
- Max Static Brake Torque: 1040 in-lbs
- Brake Facing Type: Standard Coefficient
- Mounting Configuration: Foot Mounted
- Port Size: 1/8 NPT
- Finish: Black Oxide
- Open Or Enclosed Design: Open
- Function: Stopping, Holding, Tensioning
- Brake Facing Edge Color Code: Red
- Approximate Brake Facing Life: 1244 hp/hr
- Brake Facing Effective Area: 12.6 in²
- Brake Peak Thermal Input Rate: 31.00 hp
- Disc Thickness: 0.25 in
- Static Torque Factor Burnished: 144 lbf @ 80 psi
- Brake Response Factor: 0.022
- Max Pressure: 80 psi
- Brake Air Chamber Volume When New: 0.400 in³
- Brake Air Chamber Volume When Worn Out: 0.750 in³
- Ratings: CE, RoHS
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
