NEXEN GROUP 843200 DRUM BRAKE
Quick Overview
Manufactured By: NEXEN GROUP
Manufacturer Part Number: 843200
IMS Product Code: 2154588
Packaging: Sold Individually
Description:

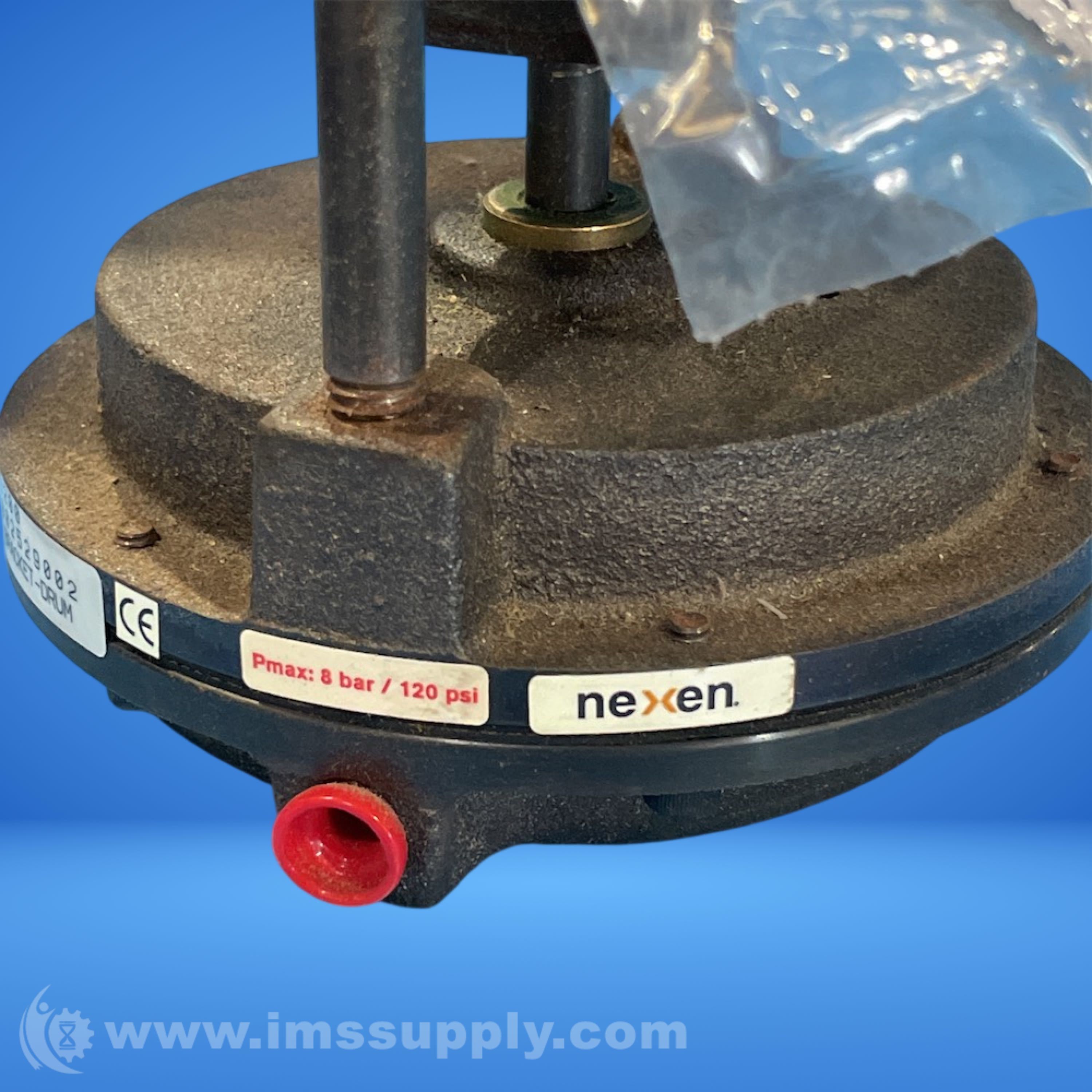

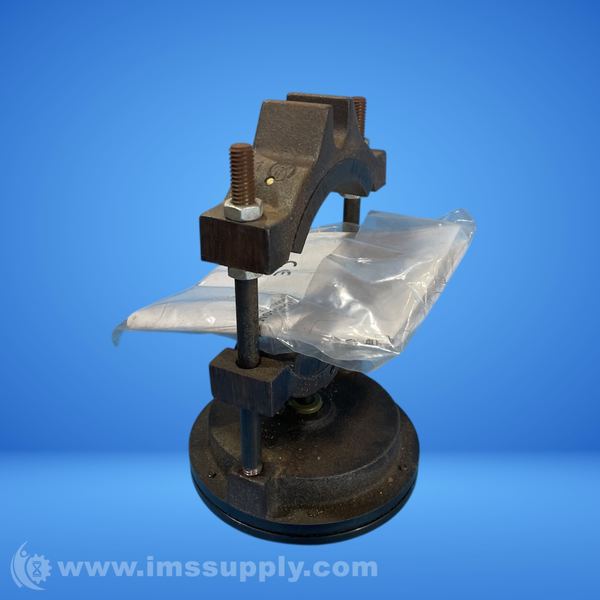

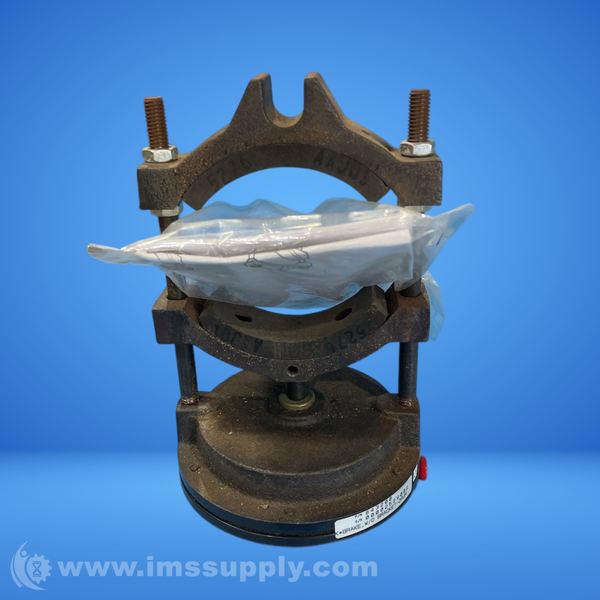

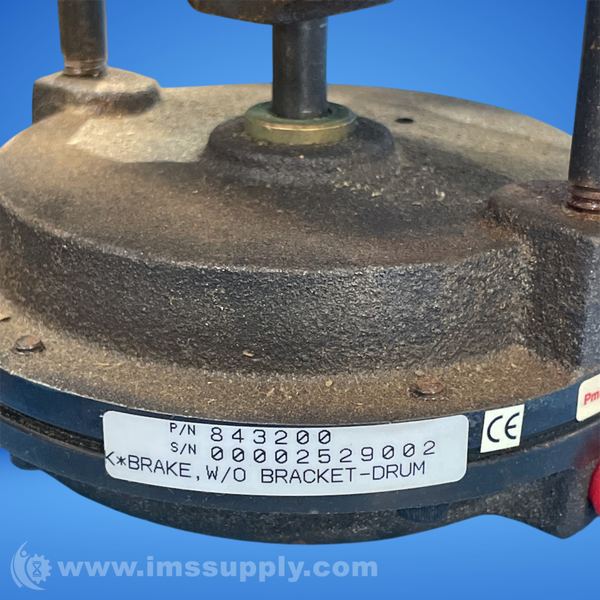

Nexen Group 843200 Drum Brake
Air actuated drum brake with 1200 in-lb static torque and air/spring actuation. Features black oxide finish and open design.
Specifications
- actuation/return: Air/Spring
- anti rotation style: Slot for Pin, Foot Mounting Bracket Sold Separately
- approximate brake facing life: 665 hphr
- brake air chamber volume when new: 6.283 in³
- brake air chamber volume when worn out: 12.566 in³
- brake facing edge color code: Red
- brake facing effective area: 1.6 in²
- brake facing type: Standard Coefficient
- brake heat sink capacity: 70000 ftlb
- brake peak thermal input rate: 1.5 hp
- brake torque: 1200 inlb
- ce certified: CE
- engagement method: Air
- finish: Black Oxide
- housing type: Fixed Top
- inlet size: 0.125 NPT
- materials of construction: Black Oxide
- max allowable pressure (psi): 120
- max ambient temperature: 150 °F
- max brake continuous thermal dissipation: 0.5 hp
- max operating pressure (psi): 80
- max static brake torque: 1200 inlb
- min ambient temperature (°f): 32
- min engagement pressure (psi): 2
- open or enclosed design: Open
- release method: Spring
- rohs compliant: RoHS
- shaft inertia: 9.79 lbin²
- weight: 8.55 lbs
New - Missing Box (Special):
comes with print.
