NEXEN 936300 MODULAR CLUTCH OUTPUT UNIT
Quick Overview
Manufactured By: NEXEN GROUP
Manufacturer Part Number: 936300
IMS Product Code: 1869995
Packaging: Sold Individually
Description:

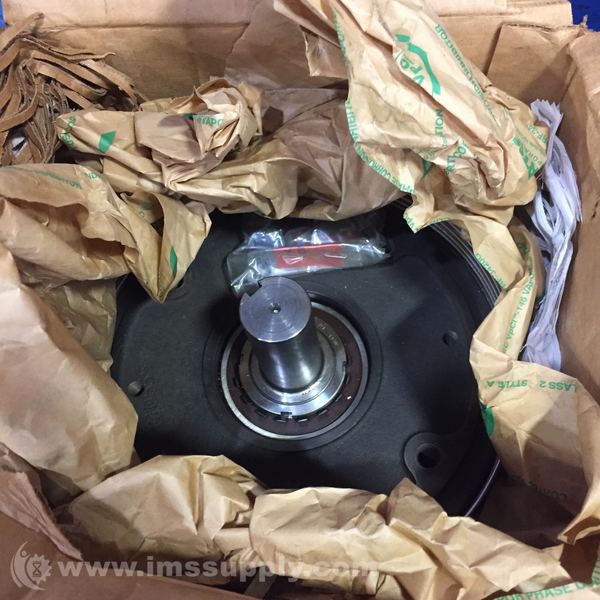

Nexen 936300 Modular Clutch Output Unit
Air actuated C-face mounted NEMA output drive unit for modular series clutch/brake applications.
Specifications
- Weight: 35.4 lbs
- Max Speed: 1800 RPM
- Overhung Load Capacity: 610 lbs, At 1800 RPM/700 lbs At 1200 RPM, 1 in From Pilot Face, For 10,000 Hrs Bearing Life
- Shaft Inertia: 65 lbin²
- Open Or Enclosed Design: Open
- Primary Finish: Black Oxide
- CE Certified: CE
- RoHS Compliant: RoHS
- Output Frame Size: NEMA 213TC, 215TC
- Max Static Clutch Torque: 1140 inlb
- Clutch Facing Type: Standard Coefficient
- Clutch Facing Edge Color Code: Red
- Approximate Clutch Facing Life: 1225 hphr
- Clutch Facing Effective Area: 18.6 in²
- Max Clutch Continuous Thermal Dissipation: 0.50 hp
- Bore Style: Machined Bore with Keyway
- Clutch Air Chamber Volume When New: 3.109 in³
- Clutch Air Chamber Volume When Worn Out: 4.657 in³
- Materials Of Construction: Black Oxide
- Output Shaft Style: Shaft with Keyway
- Bore Size: Machined Bore with Keyway
- Output Shaft Diameter: 1.375 in
- Output Bore Diameter: 1.375 in
- Input Bolt Circle Diameter: 9.000 in
- Input Bolt Hole Size: 0.422 in
- Input Pilot Diameter: 8.500 in
- Input Pilot Depth: 0.35 in
- Output Pilot Diameter: 8.500 in
- Output Pilot Height: 0.250 in
- Output Bolt Circle: 8.5 in
- Output Bolt Hole Size: 0.500-13 in
- Type: Air Actuated C-Face Mounted NEMA
- Suitable For Use With: Modular Series Clutch/Brake
- Dimensions: 9.56 in OD x 7.47 in L
- Product Type: Pneumatic Brake & Clutch Assemblies
- Country of Origin: United States
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 48 minutes.
