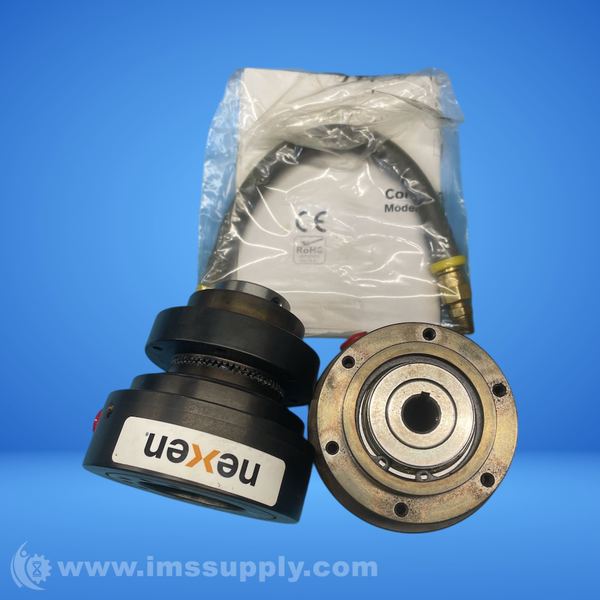

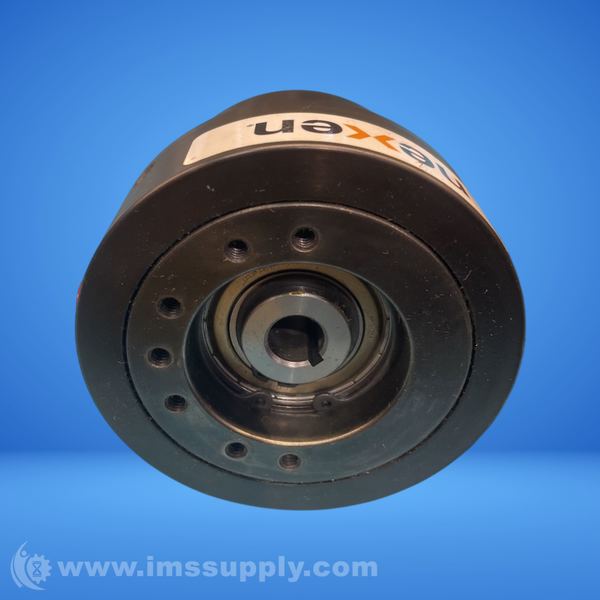

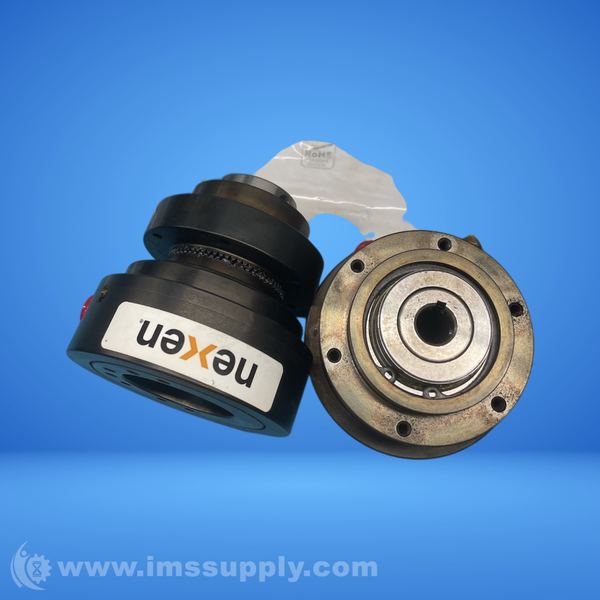

NEXEN SH20P 0.500 BORE PILOT NSB TOOTH CLUTCH
Quick Overview
Manufactured By: NEXEN GROUP
Manufacturer Part Number: SH20P 0.500 BORE PILOT NSB
IMS Product Code: 2133656
Packaging: Box of 2
Description:
Nexen SH20P 0.500 Bore Pilot NSB Tooth Clutch
Tooth clutch with 0.5 inch bore, pilot mount configuration, air engaged/spring release, open design
Specifications
- Clutch Type: Tooth Clutch
- Mounting Configuration: Shaft Mounted
- Engagement/Release: Air Engaged/Spring Release
- Design: Open
- Bore Type: Finished w/ Keyway & 2 SS
- Drive Arrangement: Pilot Mount
- Port Size: 1/8 NPT
- Max Rpm: 4000 rpm
- Min Static Torque Capacity: 100 in-lbs
- Pilot Diameter: 2.2500 in
- Max Pressure: 80 psi
- Min Engagement Pressure: 20 psi
