NIPPON BEARING SMK30GUU LINEAR BEARING
Quick Overview
Manufactured By: NIPPON BEARING CO.
Manufacturer Part Number: SMK30GUU
IMS Product Code: 1797945
Packaging: Sold Individually
Description:

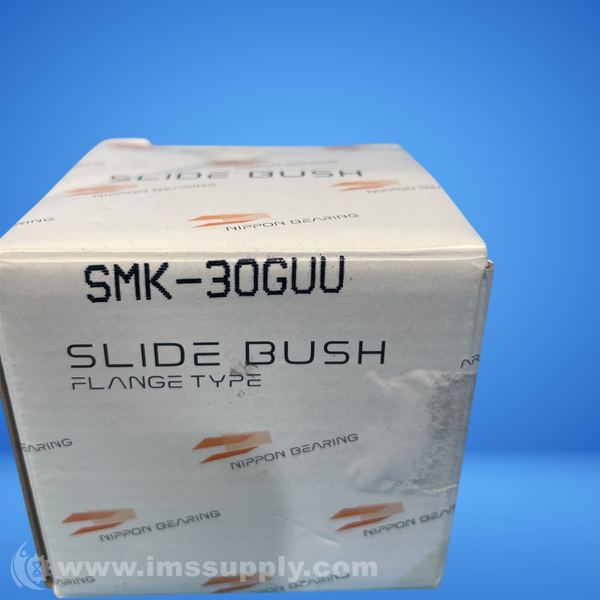

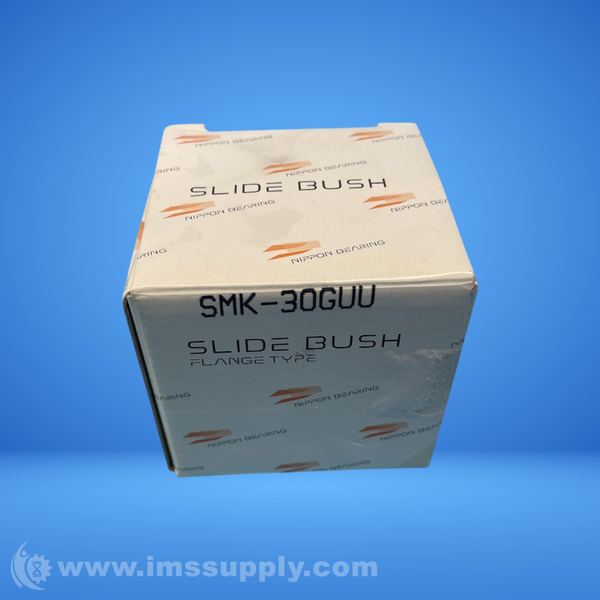

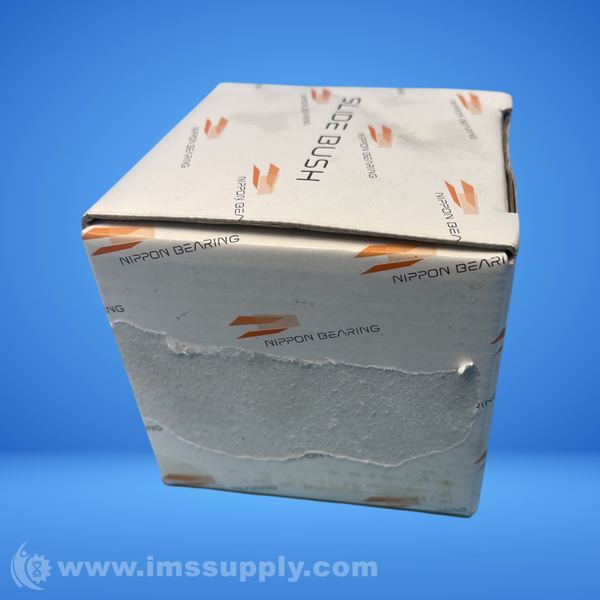

Nippon Bearing SMK30GUU Linear Bearing
Linear slide bush bearing with resin retainer, sealed on both sides.
Specifications
- Dynamic Load Rating: 1570 N
- Static Load Rating: 2740 N
- Inner Diameter (dr): 30
- Outer Diameter (D): 45
- Length (L): 64
- Flange Diameter (Df): 74
- Mounting Hole Diameter (K): 58
- Flange Thickness (t): 10
- Pitch Circle Diameter (P.C.D): 60
- Dimensions (X x Y x Z): 6.6 x 11 x 6.1
- Retainer Material: Resin
- Weight: 0.34 kgs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 4 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 8 In Stock
Ships today if ordered in the next 14 hours and 4 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 14 hours and 4 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 14 hours and 4 minutes.
