NISSEI F2SM-12-240-T15K GEAR MOTOR
Quick Overview
Manufactured By: NISSEI CORP.
Manufacturer Part Number: F2SM-12-240-T15K
IMS Product Code: 2138888
Packaging: Sold Individually
Description:

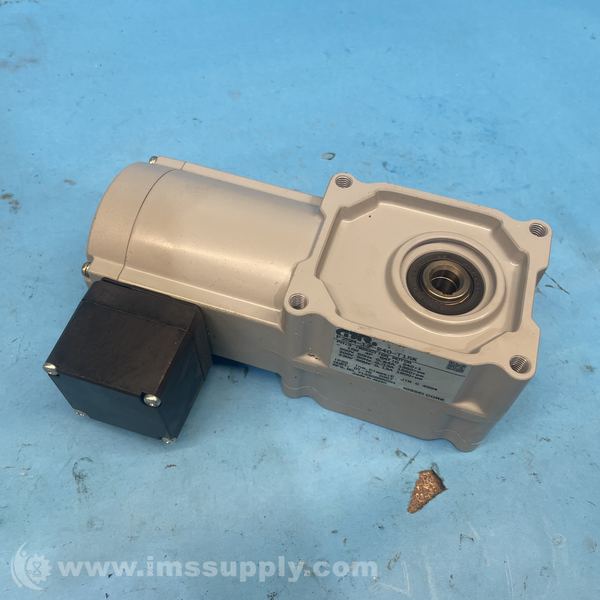

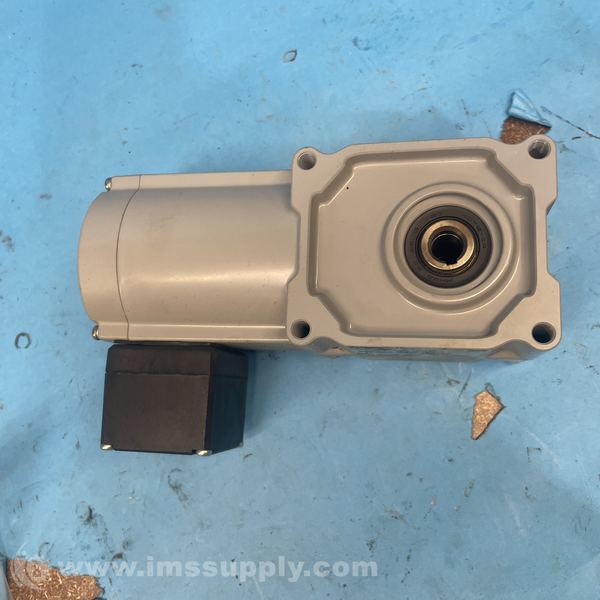

Nissei F2SM-12-240-T15K Gear Motor
15W three-phase gear motor with 1/240 reduction ratio and IP20 protection
Specifications
- Output Axis Rotation Speed: 6.3r/min / 50Hz7.5r/min / 60Hz
- Output Axis Allowed Torque: 14.7 N?m / 50Hz14.7 N?m / 60Hz
- Output Axis Allowed O.H.L: 1080N
- Output Axis Allowed Thrust Load: 275N
- Allowed Inertia Moment: 0.0001kg·?
- Reducer Specifications Output Axis Type: ?????
- Case Material: ???
- Frame Number and Output Axis Diameter: 12 mm
- Reduction Ratio: 1/240 (5/1189)
- Output Axis Material: ???
- Motor Type: ?????
- Motor Capacity: 15W
- Phase Number: ??
- Voltage Frequency Rated Current Rated Rotation Speed: 200V / 50Hz / 0.14A / 1350r/min200V / 60Hz / 0.13A / 1550r/min220V / 60Hz / 0.13A / 1600r/min
- Protection Structure: IP20
- Time Rating: S1 CONT.
- Terminal Box: K?
- Corresponding Regulations: ????
- Mass: 3 kg
- Packing Shape: ???? 276×166×183
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
