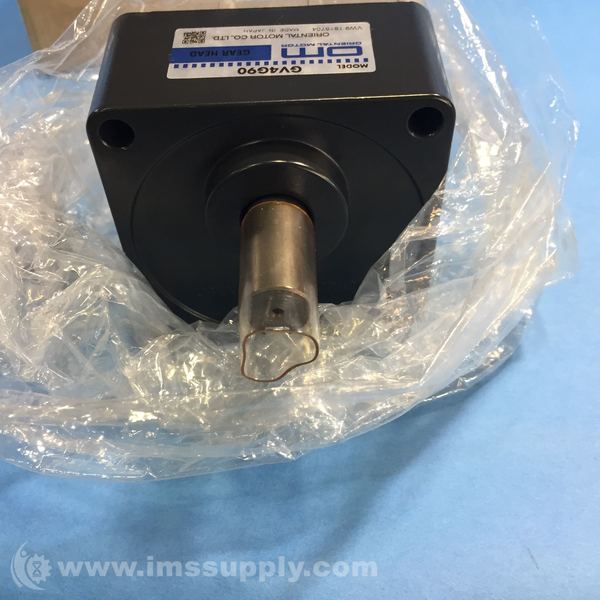

ORIENTAL MOTOR GV4G90 PARALLEL SHAFT GEARHEAD
Quick Overview
Manufactured By: ORIENTAL MOTOR
Manufacturer Part Number: GV4G90
IMS Product Code: 1825141
Packaging: Sold Individually
Description:
Oriental Motor GV4G90 Parallel Shaft Gearhead
Parallel shaft gearhead with 90:1 gear ratio and 15mm output shaft diameter
Specifications
- Frame Size: 3.15 in 80 mm
- Shaft/Gear Type: Parallel Shaft Gearhead
- Gear Ratio (X:1): 90 :1
- Output Shaft Diameter: 15 mm
- RoHS Compliant: Yes
- Motor Type: AC Motor
- Output Power: 25 W (1/30 HP)
- Power Supply: Single-Phase 110/115 VAC
- Frequency (Hz): 60
- Current: 0.93 A
- Permissible Torque: 140 lb-in 15.9 N·m
- Variable Speed Range (r/min): 1 ~ 17
- Permissible Load Inertia: 4250 oz-in² 775 x 10-4 kg·m²
- Permissible Overhung Load: 0.39 in. from Shaft End = 101 lb 0.79 in. from Shaft End = 123 lb 10 mm from Shaft End = 450 N 20 mm from Shaft End = 550 N
- Permissible Thrust Load: 22 lb 100 N
- Max. Extension Length (m): 10
- Safety Standards: UL CSA CCC EN CE
- CE Marking: Low Voltage Directives EMC Directive
- Insulation Class: [Motor] Class B [266ºF (130ºC)]
- Ambient Temperature Range: [Motor] 14ºF ~ 104ºF (-10ºC ~ 40ºC) (nonfreezing) [Control Unit] 32ºF ~ 104ºF (0ºC ~ 40ºC) (nonfreezing)
- Ambient Humidity: 85% or less (Non-condensing)
- Degree of Protection: [Controller] IP20 (with cover) [Motor] IP20

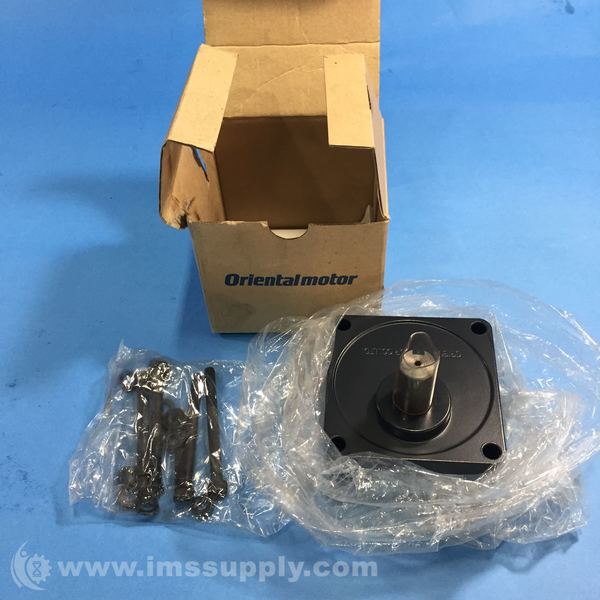

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
