NISSEI G3FS-32-5-150 GEAR REDUCER
Quick Overview
Manufactured By: NISSEI CORP.
Manufacturer Part Number: G3FS-32-5-150
IMS Product Code: 1816876
Packaging: Sold Individually
Description:

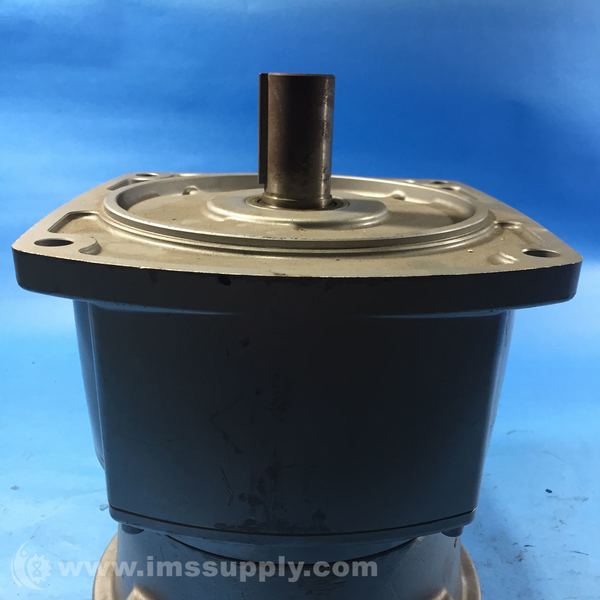

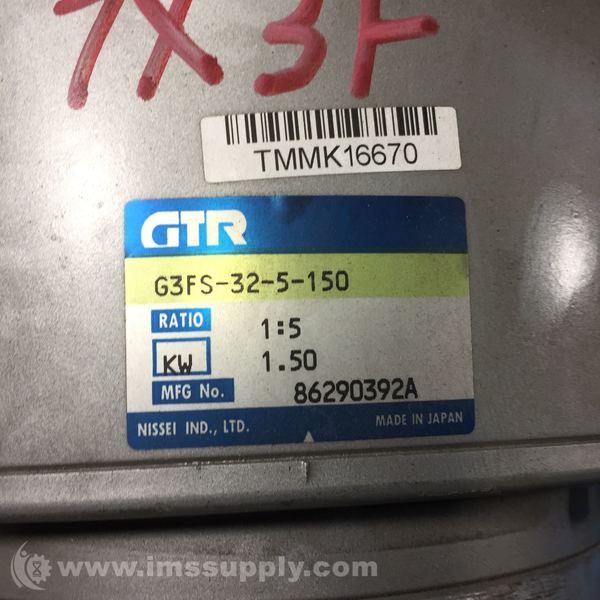

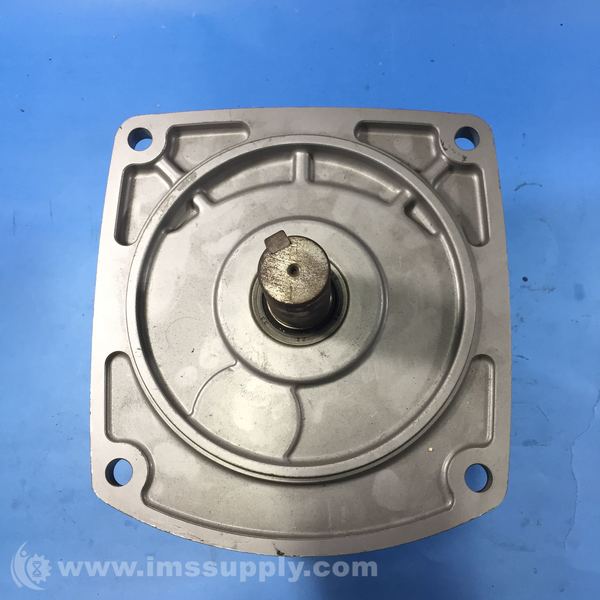

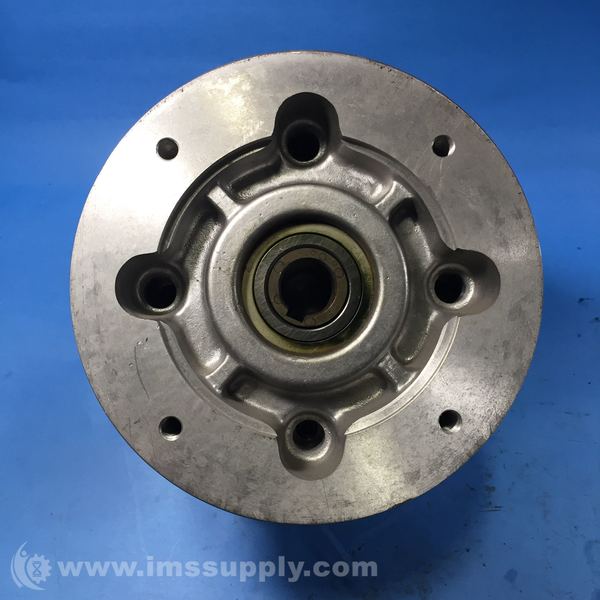

Nissei G3FS-32-5-150 Gear Reducer
A parallel shaft gear reducer with flange mounting, 1:5 reduction ratio, and 1.5kW motor capacity.
Specifications
- output axis allowable torque: 45 N·m / 50Hz38 N·m / 60Hz
- output axis allowable O.H.L: 2280N
- permissible moment of inertia: 0.008kg·m²
- reduction gear specifications output axis type mounting: parallel shaft / flange mounting
- case material: aluminum
- frame size and output axis diameter: 32 mm
- reduction ratio actual reduction ratio: 1/5 (1/5)
- output axis material: carbon steel
- motor type: S-type reduction gear (designated motor mountable type)
- motor capacity: 1.5kW(2HP)
- standards: none
- mass: 12 kg
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 53 minutes.
