NISSEI G3LB-28-200-T020A INDUCTION GEAR MOTOR
Quick Overview
Manufactured By: NISSEI CORP.
Manufacturer Part Number: G3LB-28-200-T020A
IMS Product Code: 1785662
Packaging: Sold Individually
Description:

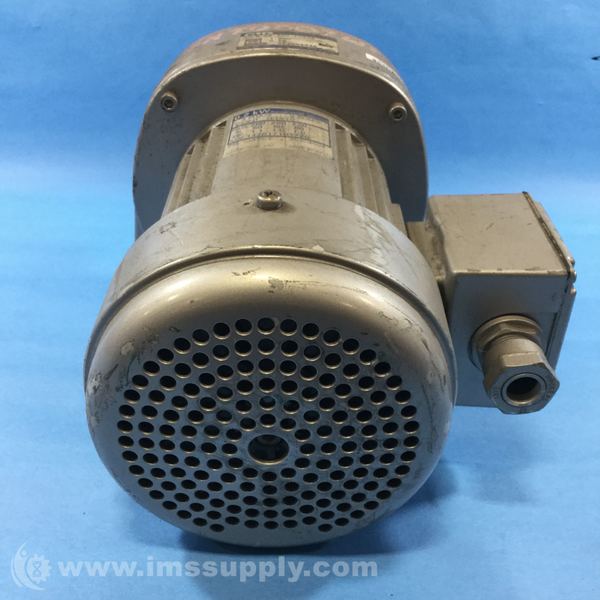

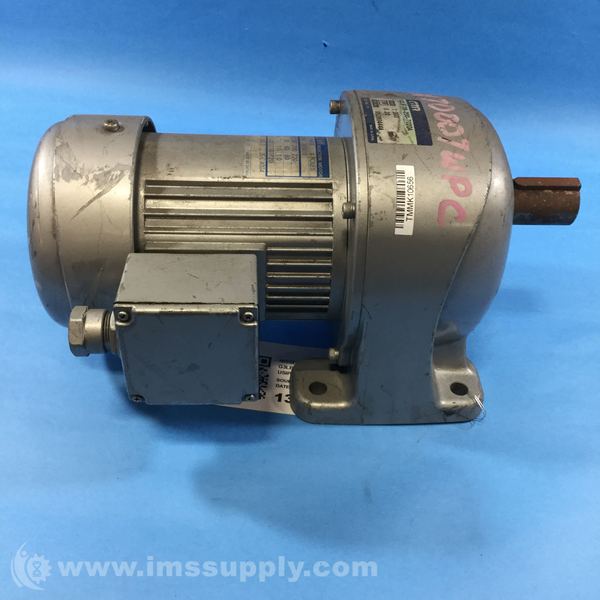

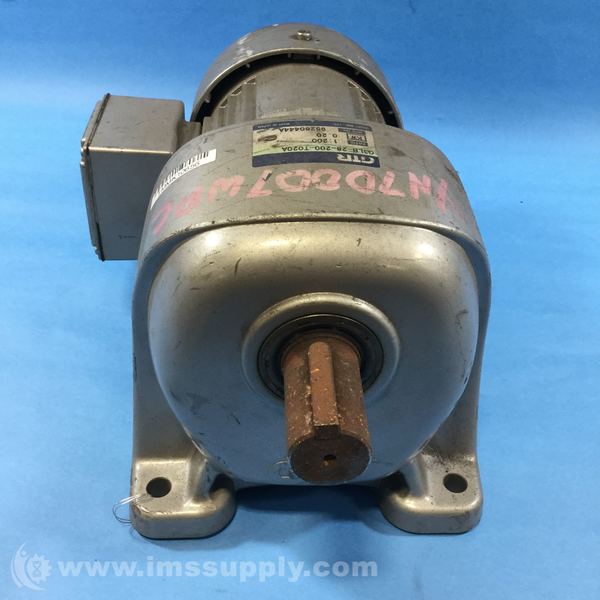

Nissei G3LB-28-200-T020A Induction Gear Motor
Induction gear motor with parallel shaft and foot mounting configuration. Features a standard motor with three-phase input.
Specifications
- Output Shaft Rotation Speed: 7.5r/min / 50Hz, 9r/min / 60Hz
- Output Shaft Allowable Torque: 234 N?m / 50Hz, 195 N?m / 60Hz
- Output Shaft Allowable O.H.L: 4450N
- Allowable Moment of Inertia: 0.001kg??
- Reducer Specification: Parallel Shaft / Foot Mounting
- Case Material: Aluminum
- Frame Size and Output Shaft Diameter: 28 mm
- Reduction Ratio: 1/200 (7/1375)
- Output Shaft Material: Carbon Steel
- Motor Type: Standard Motor
- Motor Capacity: 0.2kW(1/4HP)
- Phase: Three-phase
- Voltage/Frequency/Rated Current/Rated Rotation Speed: 200V / 50Hz / 1.1A / 1420r/min, 200V / 60Hz / 1A / 1710r/min, 220V / 60Hz / 1A / 1720r/min
- Protection Structure: IP44
- Time Rating: S1 CONT.
- Terminal Box: A-type
- Brake Type: Non-excitation Actuated Type (Spring Closed)
- Brake Voltage DC: 90V
- Corresponding Rectifier: A200-D90(A100-D45)
- Brake Capacity: 14W
- Brake Current: 0.15A
- Static Friction Torque: 1.96 N?m
- Dynamic Friction Torque: 1.57 N?m
- Brake Allowable Frequency: 10 times/min
- Approximate Mass: 11 kg
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
