NITTA EUL3/8-C1 ELBOW FITTING
Quick Overview
Manufactured By: NITTA
Manufacturer Part Number: EUL3/8-C1
IMS Product Code: 1801472
Packaging: Sold Individually
Description:

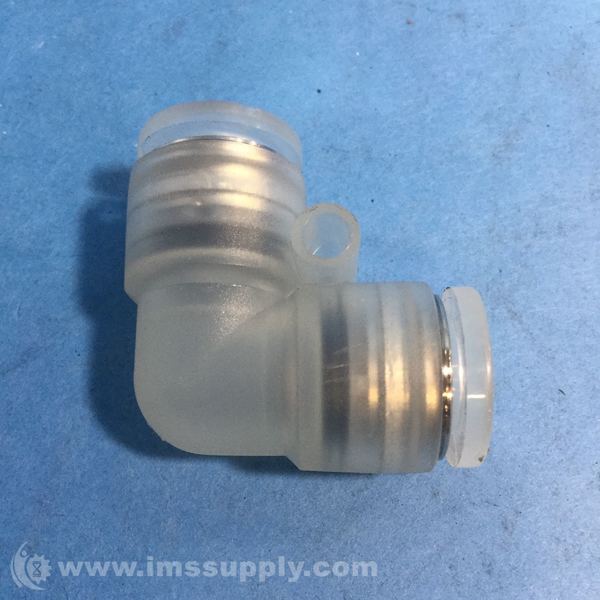

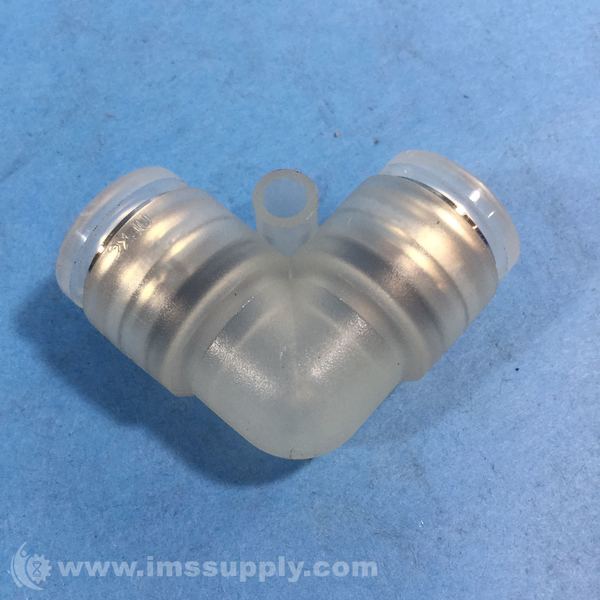

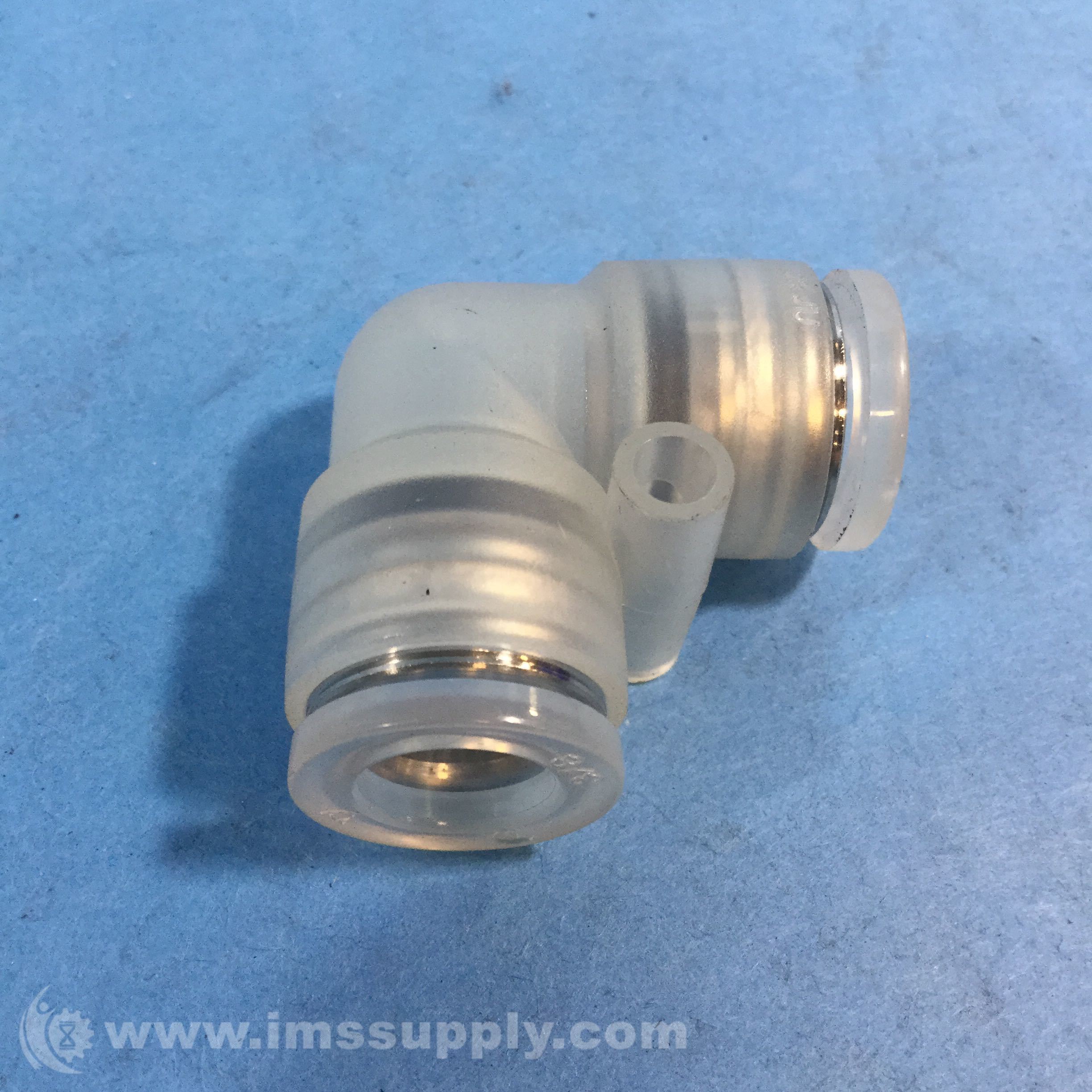

Nitta EUL3/8-C1 Elbow Fitting
Elbow fitting for fluid and air applications, part of Nitta's Chemi-Fit C1S Series.
Specifications
- Series: Chemi-Fit C1S Series
- Used for: fluid air (clean air), water (pure water)
- Usable temperature range (Air): -4°F to 176°F (-20°C to 80°C)
- Usable temperature range (Water): 32°F to 176°F (0°C to 80°C)
- Maximum Working Pressure: 0.7 MPa (at 20°C)
- Negative Pressure Performance: -99.975 kPa
- Applicable tube outer diameter: 3/8 inch
- L1: 25.8 mm
- L: 34.8 mm
- P1: 10.8 mm
- F Tube Insert Length: 20 mm
- d3: 4.2 mm
- D: 18 mm
- W: 17.5 mm
- Minimum inner diameter: 9 mm
- Effective cross-sectional area: 27 mm
- Weight: 12 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 5 In Stock
