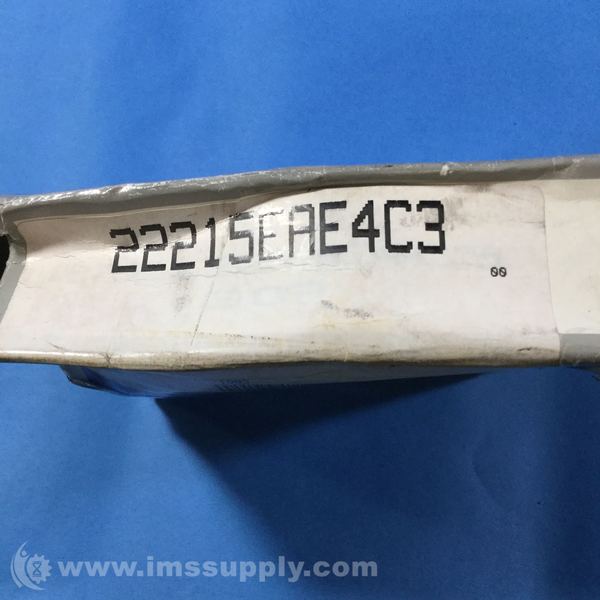

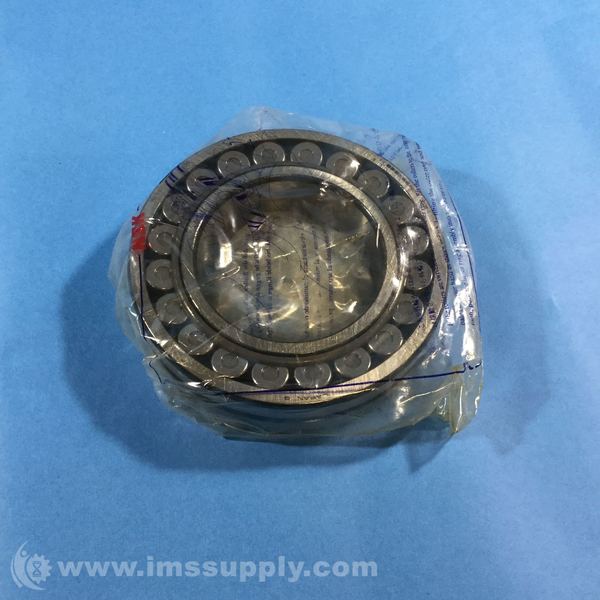

NSK 22215EAE4C3 SPHERICAL ROLLER BEARING

Call For Quote

Quick Overview

Manufactured By: NSK
Manufacturer Part Number: 22215EAE4C3
IMS Product Code: 1774753
Packaging: Sold Individually

Description:

NSK 22215EAE4C3 Spherical Roller Bearing

Specification:

  • Bore diameter: 75 mm
  • Maximum rpm: 5000 RPM
  • Outside diameter: 130 mm
  • Operating temperature range: Maximum of +200 °C
  • Overall width: 31 mm
  • Cage material: Steel
  • Bore type: Straight
  • Bearing material: Steel
  • Outer ring type: Not Split
  • Cage type: Roller Guided
  • Internal clearance: C3
  • Precision rating: RBEC 1 (ISO Class Normal)
  • Closure type: Open
  • Finish/coating: Uncoated
  • Lubrication hole type: Lubrication Groove & Hole
  • Outer ring width: 31 mm
  • Dynamic load capacity: 238000 N
  • Fillet radius: 1.5 mm
  • Static load capacity: 244000 N
