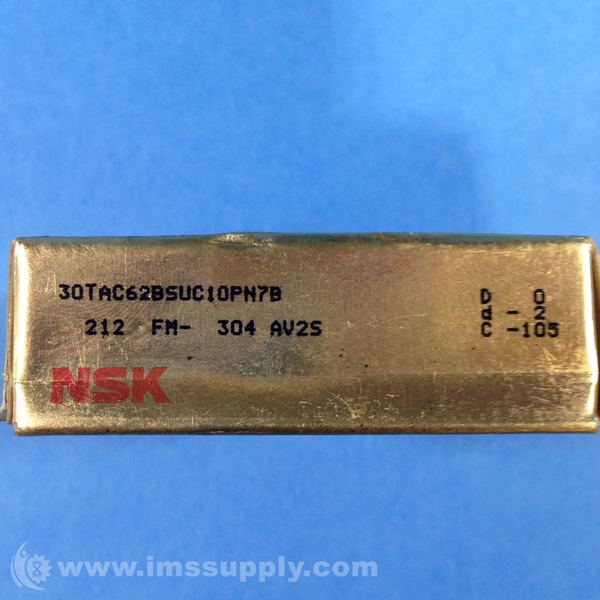

NSK 30TAC62BSUC10PN7B ANGULAR CONTACT BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 30TAC62BSUC10PN7B
IMS Product Code: 1733976
Packaging: Sold Individually
Description:
NSK 30TAC62BSUC10PN7B Angular Contact Bearing
Angular contact ball bearing for ball screw support applications, 30mm bore, 62mm OD, 15mm width, 60° contact angle, open type, without snap ring, C0 clearance, polyamide cage.
Specifications
- Bore Type: Straight
- Bore Diameter: 30 mm
- Outside Diameter: 62 mm
- Overall Width: 15 mm
- Row Type: Single-Row Non-Fill Slot
- Closure Type: Open
- Snap Ring Included: Without Snap Ring
- Bearing Type: Angular Contact Bearings
- Contact Angle: 60 degrees
- Internal Clearance: C0
- Cage Material: Polyamide
- Outer Ring Width: 15 mm
- Finish Coating: Uncoated
- Precision Rating: ABEC 7 (ISO Class 4)
- Fillet Radius: 1 mm
- Series: TAC
- Weight: 0.224 kg
- Basic Dynamic Load Rating: 30.5 kN (single row)
- Limiting Axial Load: 43 kN (single row)
- Limiting Speed (Grease): 4900 min-1
- Limiting Speed (Oil): 6400 min-1
