NSK 6319 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NSK
Manufacturer Part Number: 6319
IMS Product Code: 1809143
Packaging: Sold Individually
Description:

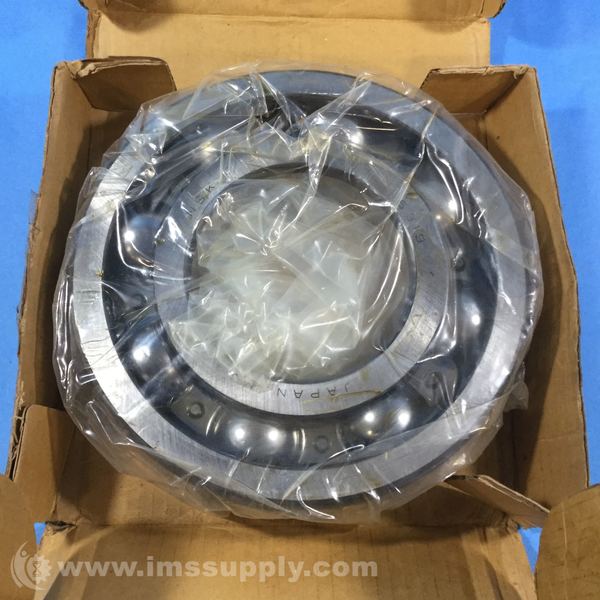

NSK 6319 Deep Groove Ball Bearing
Deep groove ball bearing with pressed steel cage, open type, and normal clearance.
Specifications
- d: 95 mm
- D: 200 mm
- B: 45 mm
- r (min.): 3 mm
- Cr: 168000 N
- C0r: 119000 N
- Grease: 3400 min-1
- Oil (Oil-bath): 4300 min-1
- da (min.): 108 mm
- da (max.): 123.5 mm
- Da (max.): 187 mm
- ra (max.): 2.5 mm
- Dx (min.): 0 mm
- Cy (max.): 0 mm
- fo: 13.3
- z: 8
- Dw: 33.338 mm
- Mass: 5.76 kg
- Types: 63 series
- Design: None-N, NR
- Cage: Pressed steel cage
- Seals, Shields: Open (not sealed)
- Radial Internal Clearance: CN
- Tolerance: ISO NORMAL CLASS
- Cage Type: Steel
- Seals Or Shields: Open Type
- Clearance: Standard
- Dynamic Load Rating (kN): 153
- Static Load Rating (kN): 119
- Grease Limiting Speed (r/min): 3000
- Oil Limiting Speed (r/min): 3600
- Material: Chrome steel (GCr15)
